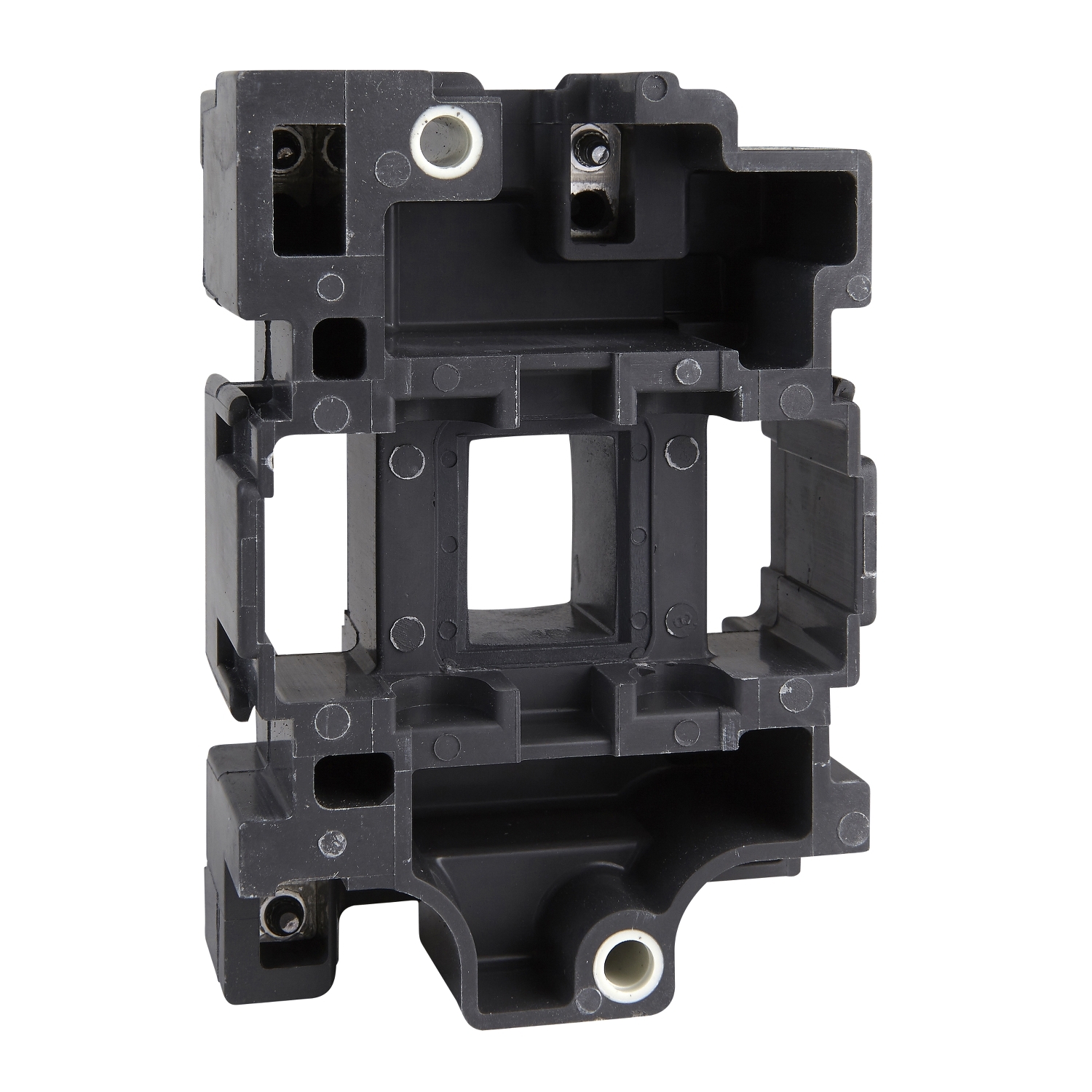

Picture of TeSys; TeSys Deca, contactor coil, LX1D6, 220 V AC 50 Hz for 80 & 95 A contactor
SKU:

LX1D6M5

TeSys; TeSys Deca, contactor coil, LX1D6, 220 V AC 50 Hz for 80 & 95 A contactor

Old price: $133.54 INC GST
$84.13 INC GST
Available for Shipping : 14-Jan-2026
TeSys; TeSys Deca, contactor coil, LX1D6, 220 V AC 50 Hz for 80 & 95 A contactor
  • Spare coil for Deca contactor
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Jan-2026
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys D replacement AC coil 220V 50Hz for TeSys D contactors. To be used with 3 and 4-pole contactors LC1 D40 to D95. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LX1D6
Product compatibility LC1D65...D95, LC1D50, LC1D40
Mechanical durability 4 Mcycles
Maximum operating rate 3600 cyc/h 60 °C
Inductance of closed circuit 7.5 H
Range TeSys
Product or component type contactor coil
Control circuit type AC at 50 Hz
Range of product TeSys Deca
[Uc] control circuit voltage 220 V AC 50 Hz
Average resistance 127 Ohm at 20 °C
Complementary
Heat dissipation 6-10 W at 50/60 Hz
Hold-in power consumption in VA 20-20 VA 50 Hz cos phi 0.3 (at 20 °C)
Coil technology without built-in suppressor module
Inrush power in VA 200-200 VA 50 Hz cos phi 0.75 (at 20 °C)
Control circuit voltage limits operational: 0.85...1.1 Uc at 60 Hz (at <55 °C), operational: 0.8...1.1 Uc at 50 Hz (at <55 °C), drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C)
Environment
Net weight 0.28 kg
Ambient air temperature for operation -5-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 8.900 cm
Package 1 Length 12.700 cm
Package 1 Weight 311 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.284 kg

Related products

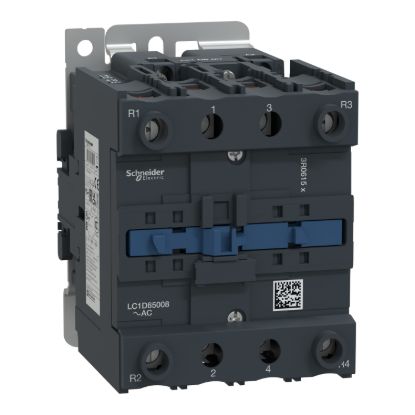

Picture of TeSys; TeSys Deca, Contactor, 4P(2NO+2NC),AC-1,<=440V 80A,220V AC 50Hz coil

TeSys; TeSys Deca, Contactor, 4P(2NO+2NC),AC-1,<=440V 80A,220V AC 50Hz coil

LC1D65008M5
$794.18 INC GST $1,260.60 INC GST
View Detail

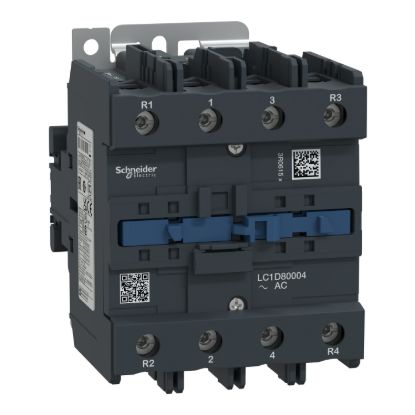

Picture of Contactor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 220V AC 50Hz coil, screw clamp terminal
