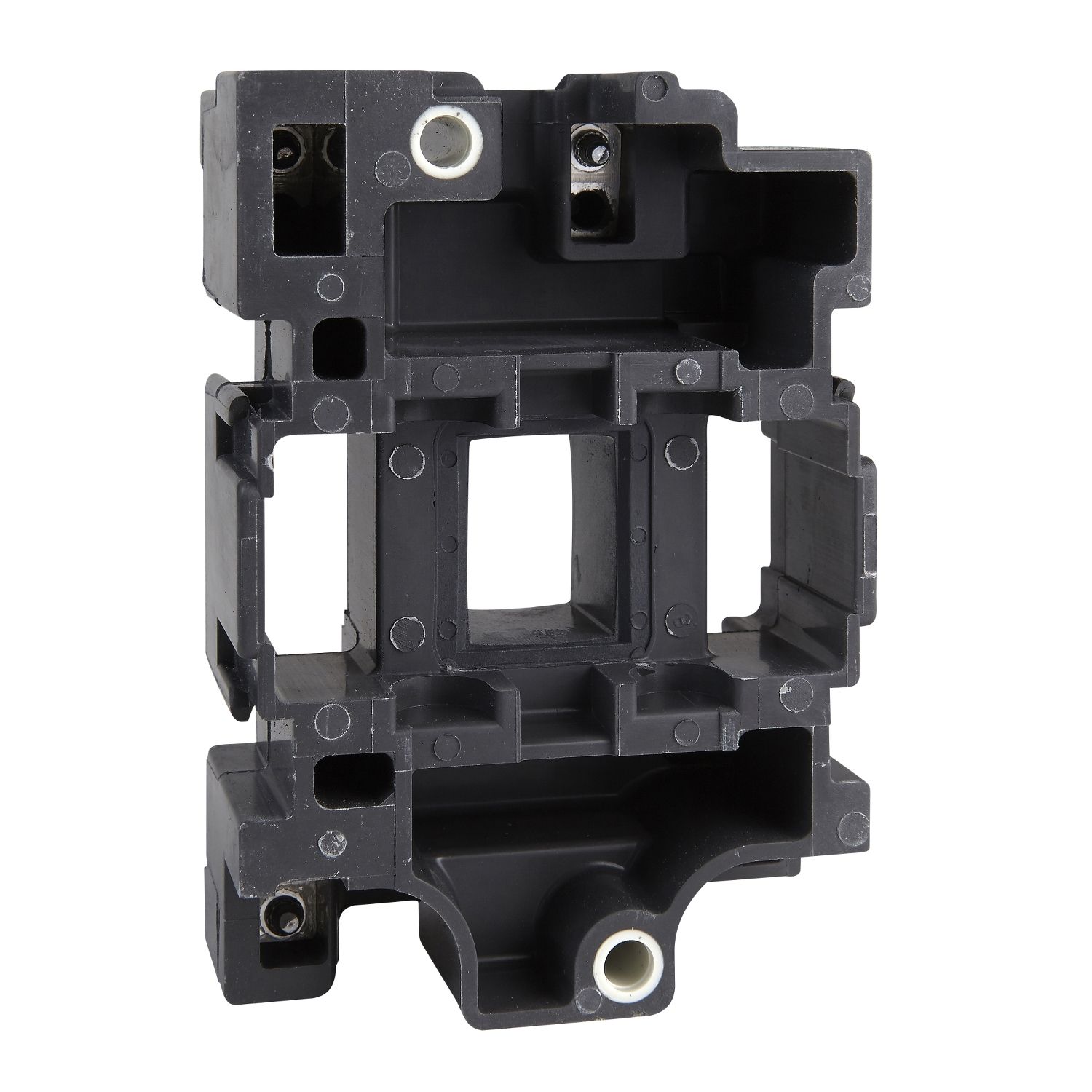

Picture of TeSys; TeSys Deca, contactor coil, LX1D6, 120 V AC 50/60 Hz for 80 & 95 A contactor
SKU:

LX1D6G7

TeSys; TeSys Deca, contactor coil, LX1D6, 120 V AC 50/60 Hz for 80 & 95 A contactor

Old price: $275.55 INC GST
$173.60 INC GST
Available for Shipping : 14-Jan-2026
TeSys; TeSys Deca, contactor coil, LX1D6, 120 V AC 50/60 Hz for 80 & 95 A contactor
  • Spare coil for Deca contactor
  • New modern look & feel of all machines
  • Easier to install.
  • Digital customer experience for technical documents
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Jan-2026
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
This product is TeSys Deca replacement AC coil 120V 50/60Hz for TeSys Deca contactors. It is applied on 3 and 4-pole contactors LC1D40 to D95. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LX1D6
Product compatibility LC1D65...D95, LC1D50, LC1D40
Mechanical durability 4 Mcycles
Maximum operating rate 3600 cyc/h 60 °C
Inductance of closed circuit 2 H
Range TeSys
Product or component type contactor coil
Control circuit type AC at 50/60 Hz
Range of product TeSys Deca
[Uc] control circuit voltage 120 V AC 50/60 Hz
Average resistance 32 Ohm at 20 °C
Complementary
Heat dissipation 6-10 W at 50/60 Hz
Hold-in power consumption in VA 26-26 VA 50 Hz cos phi 0.3 (at 20 °C), 26-26 VA 60 Hz cos phi 0.3 (at 20 °C)
Coil technology without built-in suppressor module
Inrush power in VA 245-245 VA 50 Hz cos phi 0.75 (at 20 °C), 245-245 VA 60 Hz cos phi 0.75 (at 20 °C)
Control circuit voltage limits operational: 0.85...1.1 Uc at 60 Hz (at <55 °C), operational: 0.8...1.1 Uc at 50 Hz (at <55 °C), drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C)
Environment
Net weight 0.28 kg
Ambient air temperature for operation -5-60 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 12.500 cm
Package 1 Length 9.000 cm
Package 1 Weight 315.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.323 kg

Related products

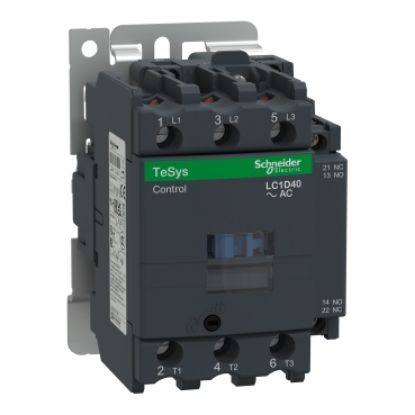

Picture of Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 40A,120V AC 50/60Hz coil, screw clamp terminals

Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 40A,120V AC 50/60Hz coil, screw clamp terminals

LC1D40G7
$335.41 INC GST $532.40 INC GST
View Detail

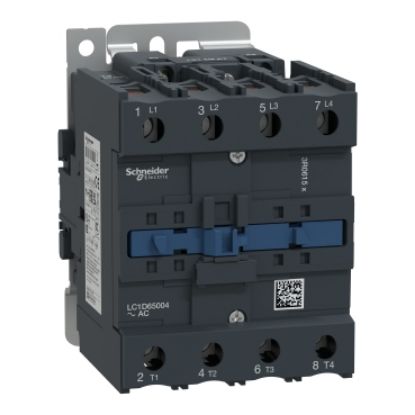

Picture of Contactor, TeSys Deca, 4P(4NO),AC-3/AC-3e/, <=440V, 40A,120V AC 50/60Hz coil, screw clamp terminal

Contactor, TeSys Deca, 4P(4NO),AC-3/AC-3e/, <=440V, 40A,120V AC 50/60Hz coil, screw clamp terminal

LC1D65004G7
$794.18 INC GST $1,260.60 INC GST
View Detail
Picture of TeSys; TeSys Deca, Contactor, 4P(2NO+2NC),AC-1 <=440V 80 A 120V AC 50/60Hz coil

TeSys; TeSys Deca, Contactor, 4P(2NO+2NC),AC-1 <=440V 80 A 120V AC 50/60Hz coil

LC1D65008G7
$694.39 INC GST $1,102.20 INC GST
View Detail
Picture of Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 65A,120V AC 50/60Hz coil, screw clamp terminals

Contactor, TeSys Deca,3P(3NO),AC-3/AC-3e/<=440V 65A,120V AC 50/60Hz coil, screw clamp terminals

LC1D65G7
$564.80 INC GST $896.50 INC GST
View Detail

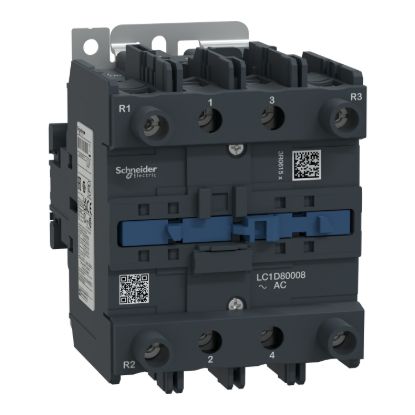

Picture of Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 125A, 120V AC 50/60Hz coil, screw clamp terminal

Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 125A, 120V AC 50/60Hz coil, screw clamp terminal

LC1D80008G7
$920.30 INC GST $1,460.80 INC GST
View Detail

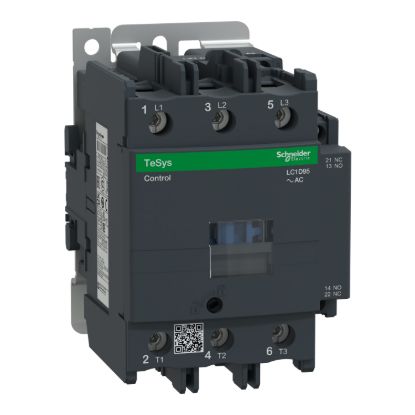

Picture of TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 95A, 120V AC 50/60Hz coil

TeSys, Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 95A, 120V AC 50/60Hz coil

LC1D95G7
$713.79 INC GST $1,133.00 INC GST
View Detail

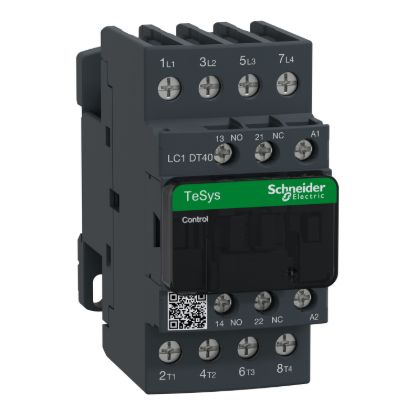

Picture of TeSys; TeSys Deca, Contactor, 4P(4NO),AC-1,<=440V 40A,120V AC 50/60Hz coil, screw terminal
