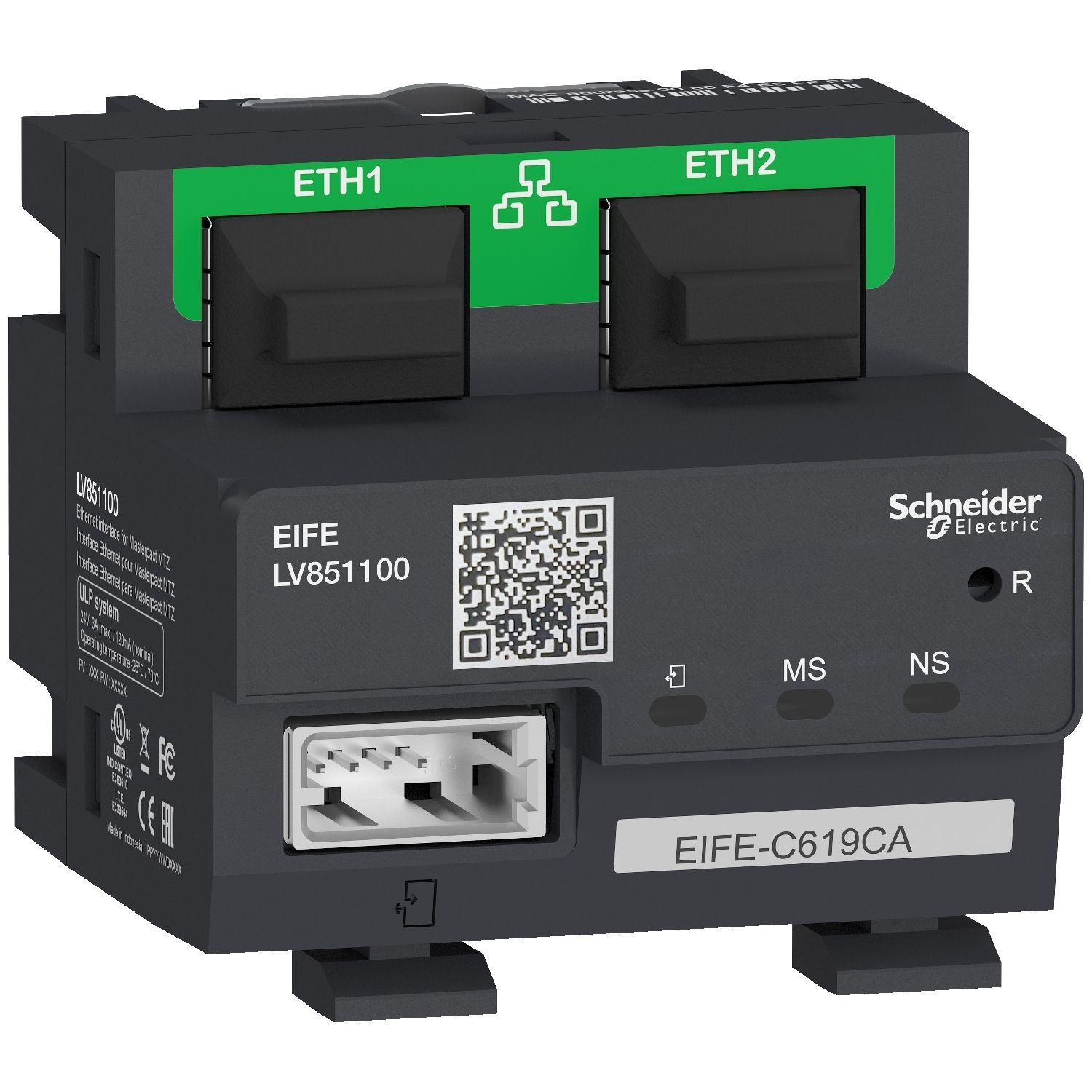

Picture of Embedded Ethernet interface EIFE, MasterPact MTZ1 drawout, spare part
SKU:

LV851100SP

Embedded Ethernet interface EIFE, MasterPact MTZ1 drawout, spare part

Old price: $1,944.80 INC GST
$1,555.84 INC GST
Available for Shipping : 08-Jan-2026
Embedded Ethernet interface EIFE, MasterPact MTZ1 drawout, spare part
  • Live collection of MasterPact MTZ1 drawout circuit breaker data
  • Alarms and pre-alarms for remote notification
  • Ability to remotely control the circuit breakers
  • Plug and play thanks to the ULP
  • Build-in test function
  • Single software for commissioning and firmware updates with EcoStruxure Power Commission
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Jan-2026
Declaration of conformity
Circularity Profile
Instruction sheet
Catalog
Environmental Disclosure
User guide
Product Page Link
Product Data Sheet
This EIFE is an embedded Ethernet interface module designed for MasterPact MTZ1 drawout circuit breakers. It provides a single Ethernet access and gets all data delivered by Masterpact MTZ1 control unit. It monitors the three positions of the circuit breaker when inserted in its chassis (IN, OUT, TEST). The data flow is 10/100 Mbps for a simple daisy chain connection. The connection to EIFE interface requires a ULP communication port installed on the chassis of MasterPact MTZ1. The EIFE is mounted on MasterPact MTZ1 chassis DIN rail, and is connected to the ULP port by an ULP cable (supplied). The EIFE power supply is provided by the ULP port through the ULP cable. There are two RJ45 sockets for the connection to Ethernet network. The EIFE is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The EIFE firmware can be updated using EcoStruxure Power Commission software.

Products specifications

Attribute name Attribute value
Main
Device application communication
Device mounting embedded
Range MasterPacT
Condition of use with specific accessories
Product or component type Ethernet interface module
Complementary
Web server embedded
Offer type spare part
Localisation on device chassis
Height 51 mm
Net weight 0.075 kg
Provided equipment 1 instruction sheet
Product certifications FCC, EAC, CE
Maximum supply current 3 A
Mounting mode drawout
Communication network type Ethernet, Ethernet TCP/IP10/100 Mbps on RJ45, ULP, CANopen on USB
Power consumption in W 72 W
Depth 52.5 mm
Width 51 mm
Communication gateway Ethernet TCP/IP to Modbus
Mounting support DIN rail
Standards IEC 60947-6-2, IACS E10, IEC 60950
Environment
IP degree of protection IP30
Ambient air temperature for operation -20-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.5 cm
Package 1 Width 6.0 cm
Package 1 Length 8.2 cm
Package 1 Weight 312.0 g
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 30.0 cm
Package 2 Width 40.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 2.927 kg
