SKU:

LV848478SP

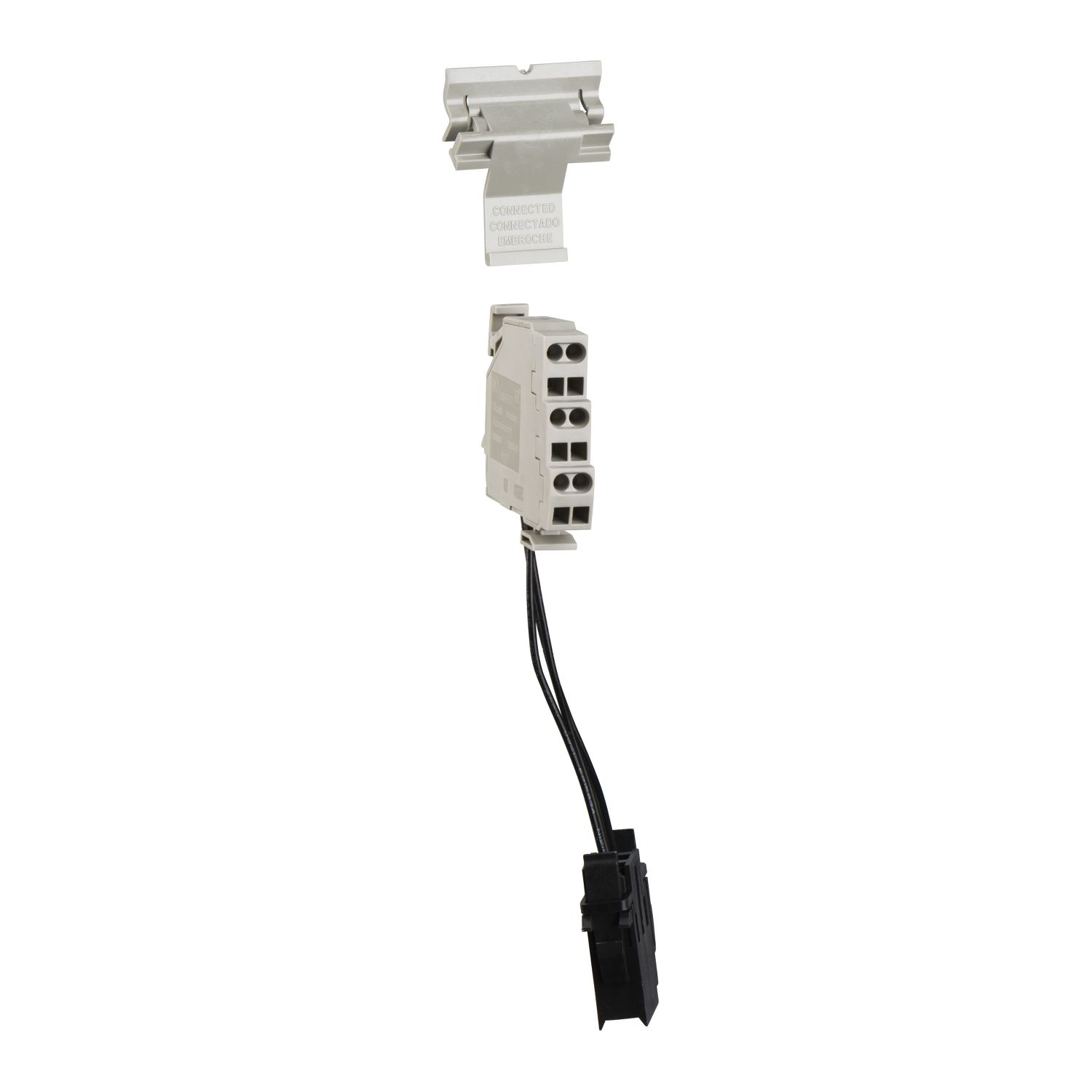

Chassis position contact, MasterPact MTZ2/MTZ3 drawout, CE/CD/CT position, low level, 3A/240VAC, spare part

Old price: $232.10 INC GST

Price: $185.68 INC GST

Qty:

Available for Shipping : 22-Jan-2026

Chassis position contact, MasterPact MTZ2/MTZ3 drawout, CE/CD/CT position, low level, 3A/240VAC, spare part

Manufacturer: Schneider Electric

Delivery date: 22-Jan-2026

Declaration of conformity

Instruction sheet

Catalog

User guide

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	EF
Device application	control
Signal contacts composition	1 NO/NC
Range	MasterPacT
Product or component type	auxiliary contact
Range compatibility	Masterpact MasterPact MTZ3 circuit breaker, Masterpact MasterPact MTZ2 circuit breaker
Complementary
Minimum load	2 mA at 15 V
[Ie] rated operational current	AC-12: 5 A at 240/380 V AC 50/60 Hz, AC-12: 5 A at 380 V AC 50/60 Hz, AC-12: 5 A at 240 V AC 50/60 Hz, DC-12: 2.5 A at 24/48 V DC, DC-12: 0.8 A at 125 V DC, DC-12: 0.3 A at 250 V DC
Auxiliary contacts type	low level
Mounting mode	drawout
Auxiliary contacts operation	connected position
Offer type	spare part
Provided equipment	1 instruction sheet
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	1.0 cm
Package 1 Width	15.0 cm
Package 1 Length	10.0 cm
Package 1 Weight	75.0 g
Unit Type of Package 2	2
Number of Units in Package 2	100
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	7.941 kg
