SKU:

LV833170SP

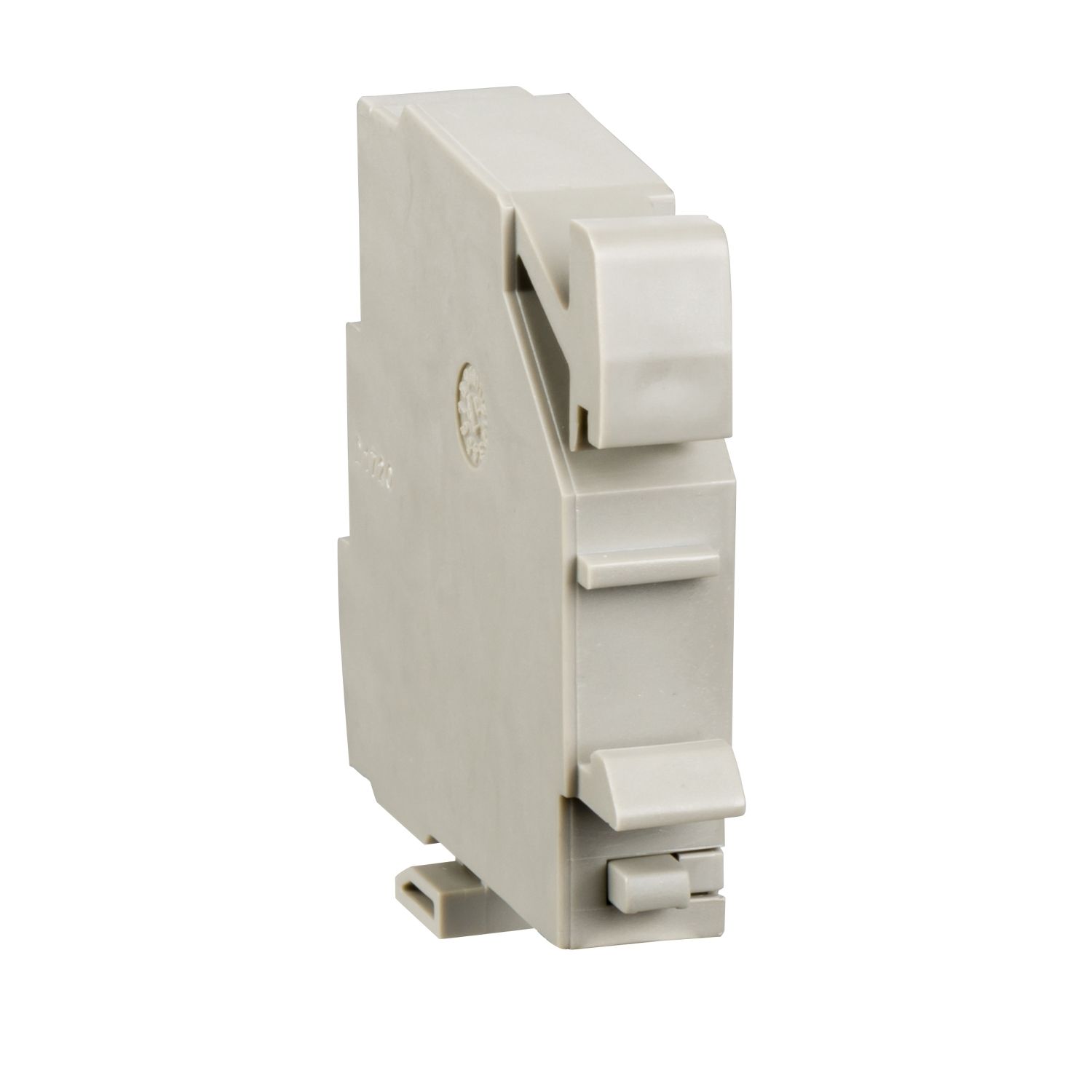

Chassis position contact, MasterPact MTZ1/MTZ2/MTZ3 drawout, CE/CD/CT position, standard, 6A/240VAC, spare part

Old price: $252.89 INC GST

Price: $202.31 INC GST

Qty:

Available for Shipping : 17-Dec-2025

Chassis position contact, MasterPact MTZ1/MTZ2/MTZ3 drawout, CE/CD/CT position, standard, 6A/240VAC, spare part

Manufacturer: Schneider Electric

Delivery date: 17-Dec-2025

Declaration of conformity

User guide

Instruction sheet

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	CE/CD/CT
Device application	control
Signal contacts composition	1 NO/NC
Range	MasterPacT
Product or component type	auxiliary contact
Range compatibility	Masterpact MasterPact MTZ3 circuit breaker, Masterpact MasterPact MTZ2 circuit breaker, Masterpact MasterPact MTZ1 circuit breaker
Complementary
Minimum load	100 mA at 24 V
[Ie] rated operational current	DC-12: 2.5 A at 24/48 V DC, DC-12: 0.8 A at 125 V DC, DC-12: 0.3 A at 250 V DC, AC-12: 8 A at 480 V AC 50/60 Hz, AC-12: 8 A at 380 V AC 50/60 Hz, AC-12: 8 A at 240 V AC 50/60 Hz, AC-12: 6 A at 690 V AC 50/60 Hz
Auxiliary contacts type	standard
Mounting mode	drawout
Auxiliary contacts operation	connected position, disconnected position, test position
Offer type	spare part
Provided equipment	1 instruction sheet
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	3.500 cm
Package 1 Width	4.200 cm
Package 1 Length	4.200 cm
Package 1 Weight	34.000 g
Unit Type of Package 2	2
Number of Units in Package 2	80
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	5.957 kg
