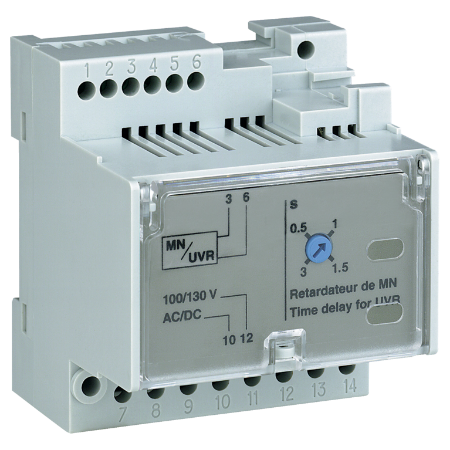

Picture of MN delay unit, MasterPact MTZ, adjustable time delay 0.5s to 3s, 200/250VDC, 200/250VAC 50/60Hz, spare part
SKU:

LV833682SP

MN delay unit, MasterPact MTZ, adjustable time delay 0.5s to 3s, 200/250VDC, 200/250VAC 50/60Hz, spare part

Old price: $943.80 INC GST
$755.04 INC GST
Available for Shipping : 14-Jan-2026
MN delay unit, MasterPact MTZ, adjustable time delay 0.5s to 3s, 200/250VDC, 200/250VAC 50/60Hz, spare part
  • MasterPact MTZ circuit breakers prepare you for the future of power distribution with smart connectivity
  • Intuitive EcoStruxure Power Device and smartphone app for easy operation and maintenance
  • Precise Class 1 power meter built in for energy-saving capabilities
  • Easy customization with digital modules
  • Intuitive MicroLogic X control unit
  • Easy installation using established architectures
  • Seamless integration with building and energy management systems with EcoStruxure architectures
  • Designed and tested to applicable standards for ANSI, UL, and IEC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Jan-2026
Product environmental
Instruction sheet
User guide
Catalogue
End of life manual
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name MN delay unit
Device application control
Range MasterPacT
Voltage release type instantaneous
Product or component type time delay auxiliary
Range compatibility Masterpact MasterPact MTZ3 circuit breaker, Masterpact MasterPact MTZ2 circuit breaker, Masterpact MasterPact MTZ1 circuit breaker
Complementary
Impulse duration 200 ms
Supply inrush power 200 VA
Offer type spare part
Supply holding power 4.5 VA
Threshold tripping voltage 0.85 Un close, 0.35...0.7 Un open
Response time 3 s, 1.5 s, 0.9 s, 0.5 s
Time delay range 0.5...3 s
Provided equipment 1 instruction sheet
[Uc] control circuit voltage 200...250 V DC, 200...250 V AC 50/60 Hz
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.4 cm
Package 1 Width 7.6 cm
Package 1 Length 9.2 cm
Package 1 Weight 165.0 g
Unit Type of Package 2 2
Number of Units in Package 2 30
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.25 kg

Related products

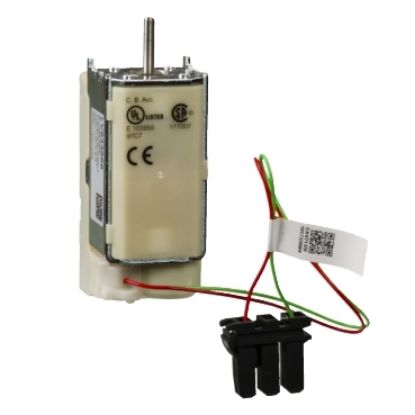

MN undervoltage release, MasterPact MTZ1/MTZ2/MTZ3, standard, 200/250VAC 50/60Hz, 200/250VDC, spare part

LV833671SP
$579.92 INC GST $724.90 INC GST
View Detail

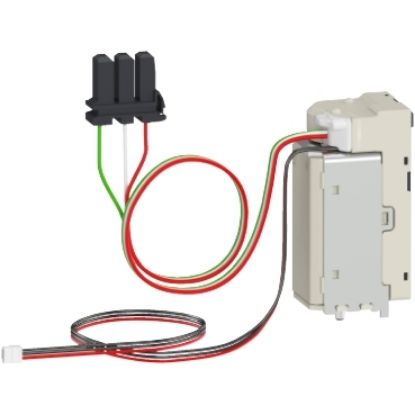

Picture of MN undervoltage release, MasterPact MTZ1/2/3, diagnostics and communicating, 200/250VAC 50/60Hz, 200/250VDC, spare part
