breaker status and control module, BSCM, ComPact NSX

Schneider Electric green signature style for the entire ComPacT range

Estimated 40% reduction of wiring time for panel builders

Experience easier installation thanks to a new ergonomic front-plate design

Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating

Ergonomic new toggle for easier breaker manual operation

Manufacturer: Schneider Electric

SKU: LV434205

GTIN: 3606480021817

Catalog

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Full Description

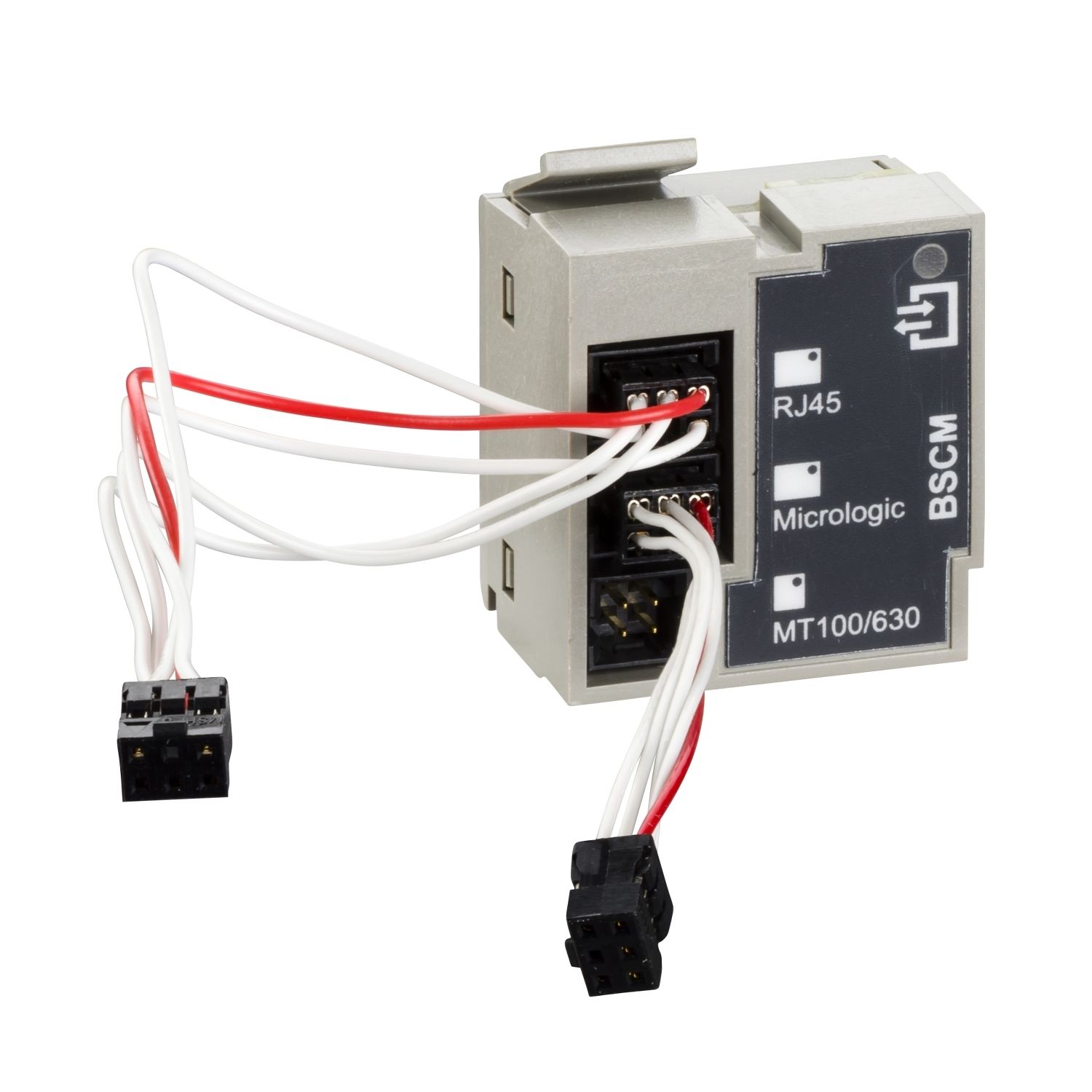

This is a breaker status communication module (BSCM) for ComPact NSX circuit breakers. The optional BSCM for ComPact NSX is used to acquire device status indications and control the communicating remote-control function. It includes a memory used to manage the maintenance indicators. It serves as a converter between the analog outputs of the device indication contacts (O/F, SD, SDE) and the digital communicating functions. It is needed for communication of status indications, controls and measurements. The BSCM is installed inside the circuit breaker behind the front cover. It is connected to external Ethernet or Modbus interfaces (IFE/IFM) via the NSX cord terminal block. The BSCM operational voltage is 24 VDC.

Call for pricing

Supported cards

Specifications
Reviews

Products specifications

Main
Device short name	breaker status control module
Range	ComPacT
Range of product	ComPact NSX400...630, ComPact NSX100...250
Function of module	get breaking status, control circuit breaker
Product or component type	communication module
Range compatibility	PowerPact PowerPact Multistandard, ComPact ComPact NSX
Complementary
[Us] rated supply voltage	24 V DC
