breaker status and control module, BSCM, ComPact NSX

Call for pricing

Availability: Please contact our sales team on 1300 724 622.

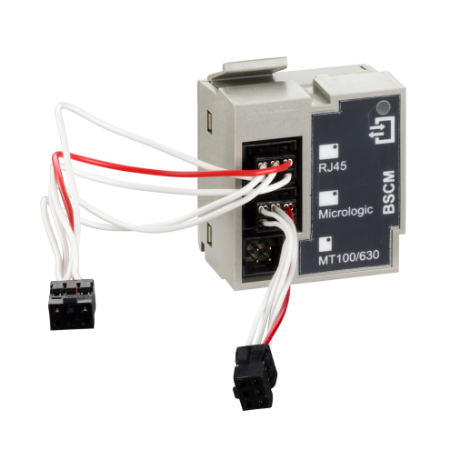

ComPact NSX BSCM (Breaker Status and Control Module)

Schneider Electric's signature green design for the entire ComPacT range.

40% reduction in wiring time for panel builders.

Easy installation with new ergonomic front-plate design.

Ensures auxiliaries are correctly placed and the right coil rating is used.

Ergonomic toggle for easier manual operation of the breaker.

Be the first to review this product

Manufacturer: Schneider Electric

Instruction sheet

Product environmental

User guide

Catalogue

End of life manual

Product Page Link

Product Data Sheet

This is a Breaker Status Communication Module (BSCM)- LV434205, designed for ComPact NSX circuit breakers. The optional BSCM allows you to monitor device status indications and control the remote communication function. It also features memory to manage maintenance indicators.

The BSCM acts as a converter, translating the analog outputs of device indication contacts (O/F, SD, SDE) into digital communication functions. It is essential for transmitting status indications, executing controls, and enabling measurements.

The module is installed inside the circuit breaker, positioned behind the front cover. It connects to external Ethernet or Modbus interfaces (IFE/IFM) using the NSX cord terminal block. The operational voltage of the BSCM is 24 VDC.

Products specifications

Attribute name	Attribute value
Main
Device short name	breaker status control module
Range	ComPacT
Range of product	ComPact NSX400...630, ComPact NSX100...250
Function of module	get breaking status, control circuit breaker
Product or component type	communication module
Range compatibility	PowerPact PowerPact Multistandard, ComPact ComPact NSX
Complementary
[Us] rated supply voltage	24 V DC
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	3.4 cm
Package 1 Width	5.5 cm
Package 1 Length	11.6 cm
Package 1 Weight	35 g
Unit Type of Package 2	2
Number of Units in Package 2	46
Package 2 Height	15 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	1.9 kg
