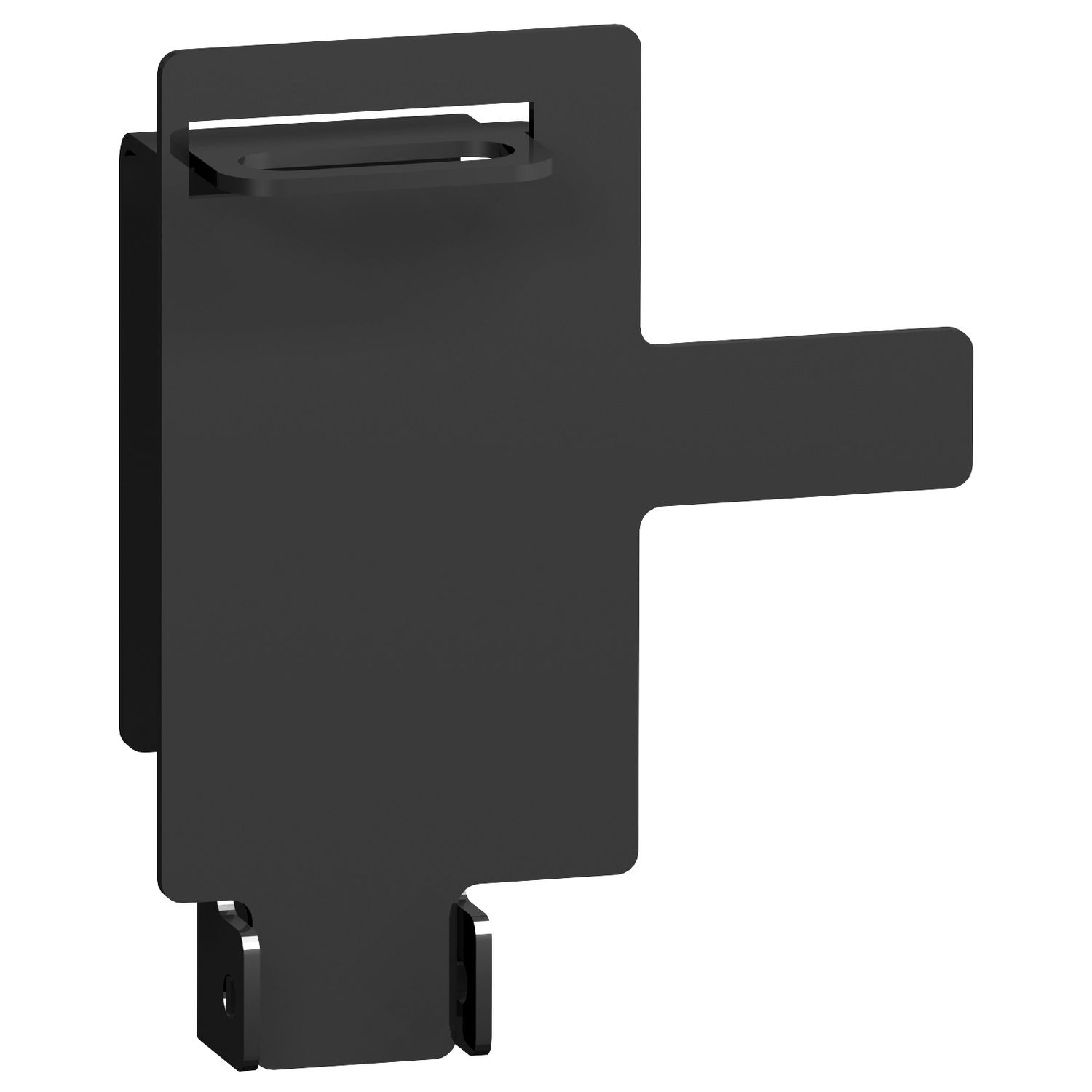

Picture of toggle padlocking device, fixed adapter, ComPact NSX400/630, OFF or ON position
SKU:

LV432631

toggle padlocking device, fixed adapter, ComPact NSX400/630, OFF or ON position

Old price: $110.66 INC GST
$90.52 INC GST
Available for Shipping : 08-Dec-2025
toggle padlocking device, fixed adapter, ComPact NSX400/630, OFF or ON position
  • Schneider Electric green signature style for the entire ComPacT range
  • Estimated 40% reduction of wiring time for panel builders
  • Experience easier installation thanks to a new ergonomic front-plate design
  • Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating
  • Ergonomic new toggle for easier breaker manual operation
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 08-Dec-2025
Catalog
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This is a padlocking system for fixed Compact NSX 400/630 devices. It allows to lock the device in the open position (OFF) or closed position (ON). The padlocking system can receive up to 3 padlocks (shackle diameter from 5mm to 8mm, not supplied). Locking in the OFF position guarantees isolation as per IEC 61947-2.

Products specifications

Attribute name Attribute value
Main
Device short name locking for 1 to 3 padlocks
Mounting mode fixed
Range ComPacT
Product or component type padlocking device
Range compatibility PowerPact PowerPact L, ComPact Compact NSX630 DC, ComPact Compact NSX400 DC, ComPact ComPact NSX630, ComPact ComPact NSX400
Range of product ComPact NSX400...630 DC, ComPact NSX400...630
Complementary
Key locking position in front
Keylock destination toggle
Locking options description without keylocks, locks On or Off, fixed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.000 cm
Package 1 Width 13.000 cm
Package 1 Length 20.000 cm
Package 1 Weight 110.000 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.000 kg
