SKU:

LV431549

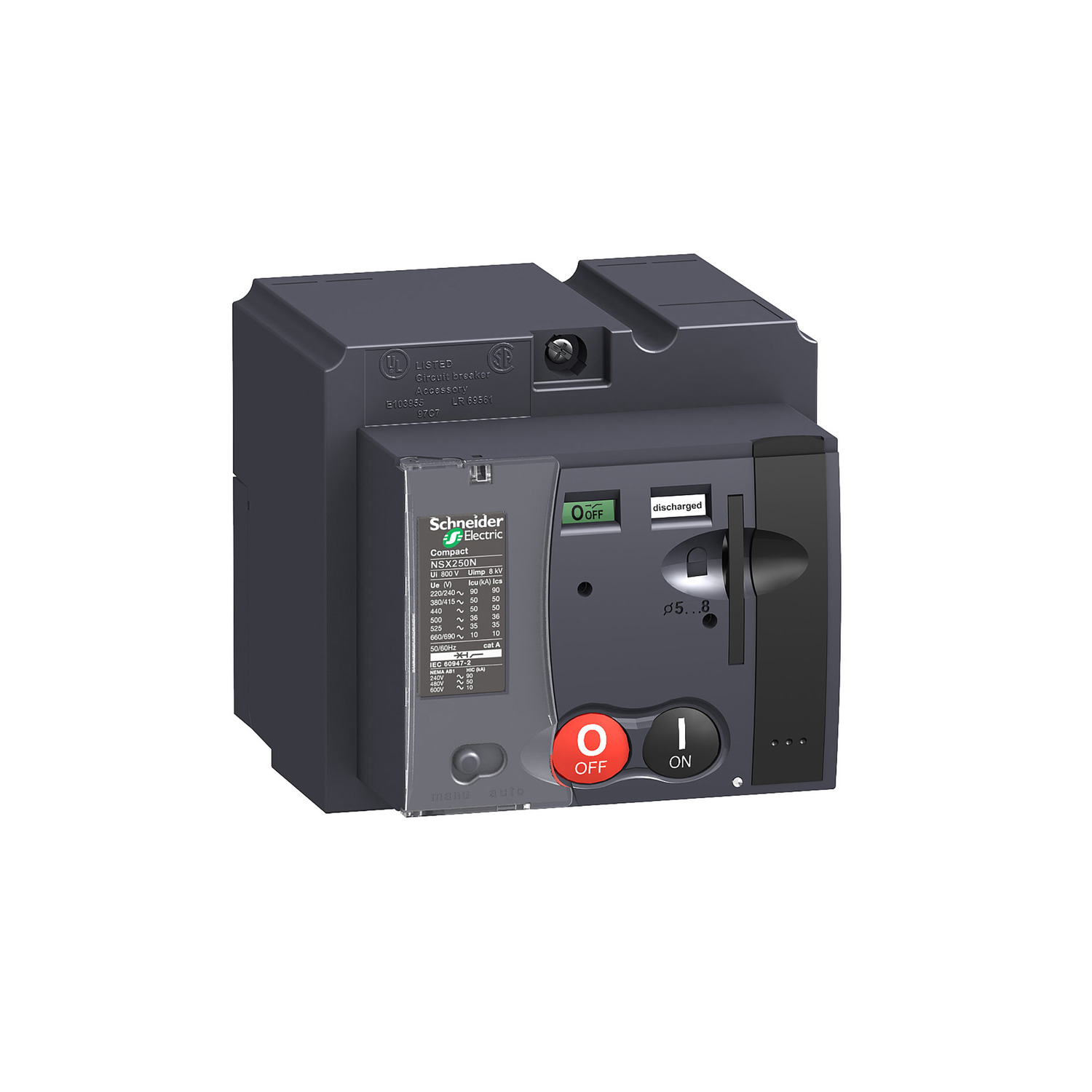

Communicating motor mechanism module MTc 250, ComPacT NSX250, 220/240VAC 50/60Hz

Old price: $2,897.40 INC GST

Price: $2,370.07 INC GST

Qty:

Available for Shipping : 12-Jan-2026

Communicating motor mechanism module MTc 250, ComPacT NSX250, 220/240VAC 50/60Hz

Schneider Electric green signature style for the entire ComPacT range

Estimated 40% reduction of wiring time for panel builders

Experience easier installation thanks to a new ergonomic front-plate design

Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating

Ergonomic new toggle for easier breaker manual operation

Be the first to review this product

Manufacturer: Schneider Electric

Delivery date: 12-Jan-2026

Circularity Profile

User guide

Instruction sheet

Environmental Disclosure

Catalog

Product Page Link

Product Data Sheet

This is a communicating motor mechanism for Compact NSX 250 and PowerPact Multistandard J frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. This communicating motor mechanism can receive external opening and closing orders. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this communicating motor mechanism module is 220VAC to 240VAC 50/60Hz. The consumption is less than 500VA. Padlocking of the device remains possible. The communicating motor mechanism is supplied with SDE adapter.

Products specifications

Attribute name	Attribute value
Main
Device short name	MT100/160
Device application	automatic spring charging
Mounting mode	fixed
Control type	communicating
Range	ComPacT
Range of product	ComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation
[In] rated current	250 A
Product or component type	motor mechanism
Range compatibility	ComPacT new generation ComPacT NSX DC new generation NSX250 DC, ComPacT new generation ComPacT NSX250 new generation
[Uc] control circuit voltage	220...240 V AC 50/60 Hz
Complementary
Provided equipment	SDE adaptor
Control signal type	maintained, impulse
Locking options description	1 to 3 padlocks Ø 5 to Ø 8, padlocking in OFF position
Maximum power consumption in VA	500 VA opening, 500 VA closing
Maximum operating frequency	4 per minute
Response time	< 80 ms closed, < 700 ms open
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	12.000 cm
Package 1 Width	10.600 cm
Package 1 Length	17.100 cm
Package 1 Weight	1.386 kg
Unit Type of Package 2	2
Number of Units in Package 2	15
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	21.487 kg
