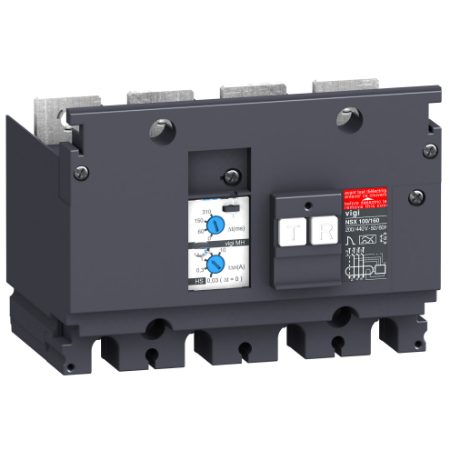

Picture of Earth-leakage add-on protection module, ComPact NSX 100/160, ME type, 200 VAC to 440 VAC, 300 mA, 4 poles
SKU:

LV429213

Earth-leakage add-on protection module, ComPact NSX 100/160, ME type, 200 VAC to 440 VAC, 300 mA, 4 poles

$2,871.79
Availability: Please contact our sales team on 1300 724 622.
Earth-leakage add-on protection module, ComPact NSX 100/160, ME type, 200 VAC to 440 VAC, 300 mA, 4 poles
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet
It is a ME Vigi add-on module for 4 poles Compact NSX 100/160 and EasyPact CVS 100/160. It provides an earth-leakage protection when installed directly on the device terminals. It directly actuates the trip unit in case of insulation fault. The addition of this Vigi add-on module does not modify Compact NSX 100/160 or EasyPact CVS 100/160 characteristics. It is a ME type module in 4 poles version, self-powered by the input voltage. The operational voltage for the Vigi add-on is from 200VAC to 440VAC 50/60Hz. The sensitivity is fixed to 30mA, the time delay is also fixed. The dimensions of the circuit breaker equipped with this module are 140mm x 236mm x 86mm.
