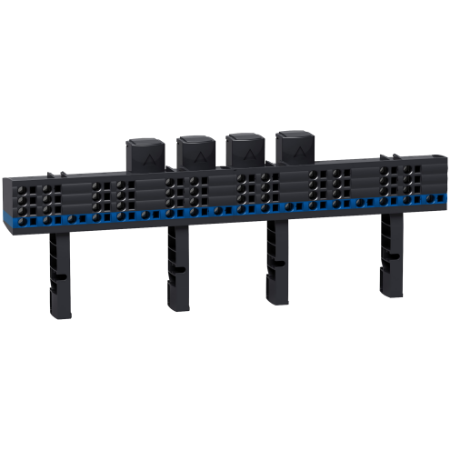

Picture of Linergy FM 4P distribution block - 200A - 24 modules 54 holes - quick connection
SKU:

LSX58054A

Linergy FM 4P distribution block - 200A - 24 modules 54 holes - quick connection

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Linergy FM 4P distribution block - 200A - 24 modules 54 holes - quick connection
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
IP degree of protection IPxx B
Range Linergy
Product name Linergy FM
Product or component type distribution block
Accessory / separate part category current distribution accessory
Range compatibility Prisma Prisma iPM M enclosure, Prisma Prisma iPM L enclosure
Range of product Linergy
Complementary
Depth 50 mm
Width 433 mm
[Uimp] rated impulse withstand voltage 8 kV
Compatibility code MULTICLIP
Poles description 4P
Mounting mode clip-on, by screws
[Ie] rated operational current 200 A
[Ui] rated insulation voltage 750 V AC 50/60 Hz
9 mm pitches 48
Total number of 18 mm modules 24
Mounting support DIN rail, slotted backplate, plain backplate
[Ue] rated operational voltage 690 V AC
Height 52 mm
[In] rated current 200 A at 40 °C
Connections - terminals distribution: quick-connect terminal strips (neutral) , 18 x 1-10 mm² (rigid) , distribution: quick-connect terminal strips (neutral) , 18 x 1-10 mm² (flexible) , distribution: quick-connect terminal strips (phase) , 12 x 1-10 mm² (rigid) , distribution: quick-connect terminal strips (phase) , 12 x 1-10 mm² (flexible) , supply: flexible bars, 20 x 3 mm, supply: crimped lug50-50 mm²
Environment
Standards IEC 60947-7-1, IEC 61439-2, inside Prisma, IEC 61439-1, inside Prisma
Product certifications CE, ASEFA, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.0 cm
Package 1 Width 7.0 cm
Package 1 Length 50.0 cm
Package 1 Weight 1.6 kg
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 40.0 cm
Package 2 Width 60.0 cm
Package 2 Length 15.0 cm
Package 2 Weight 31.2 kg
