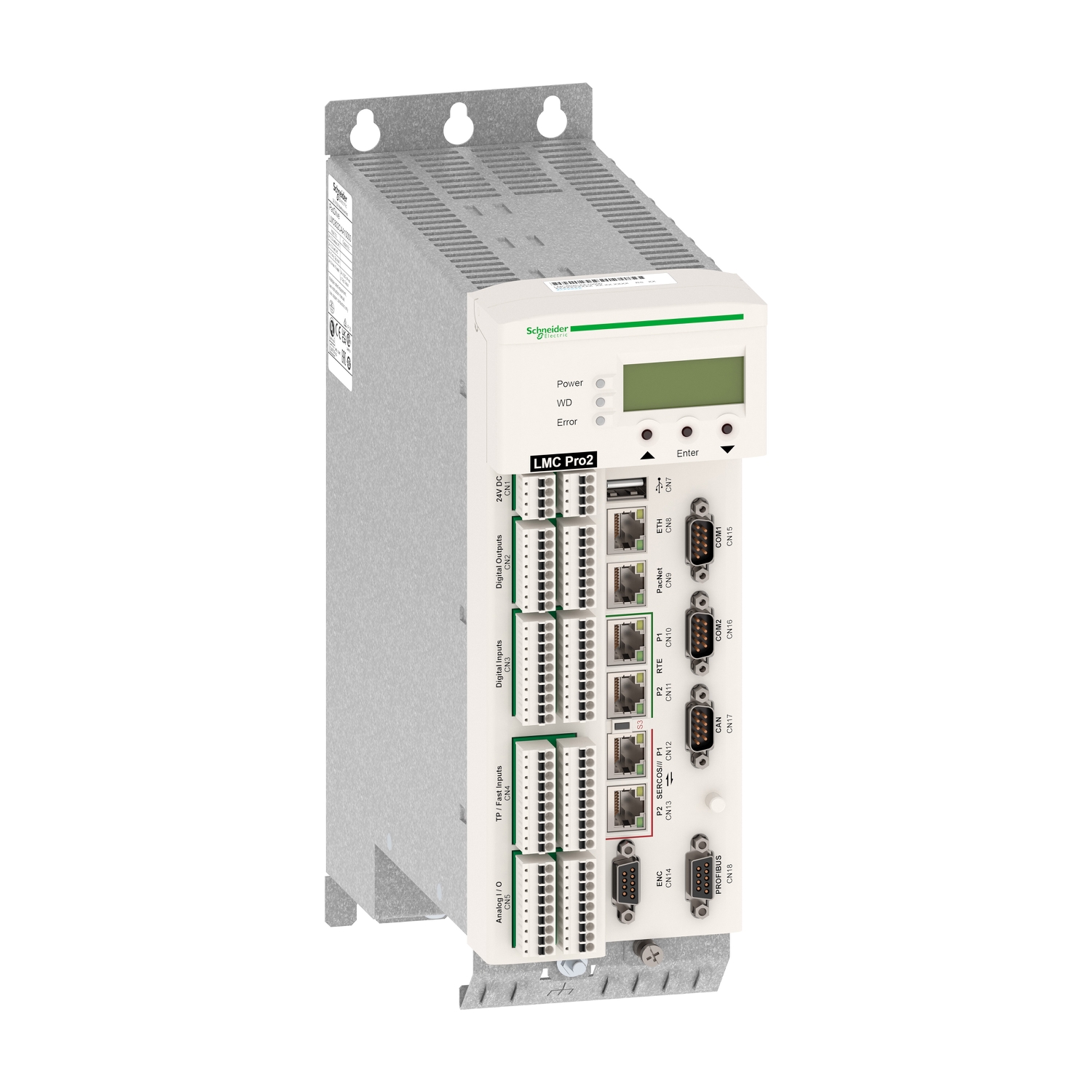

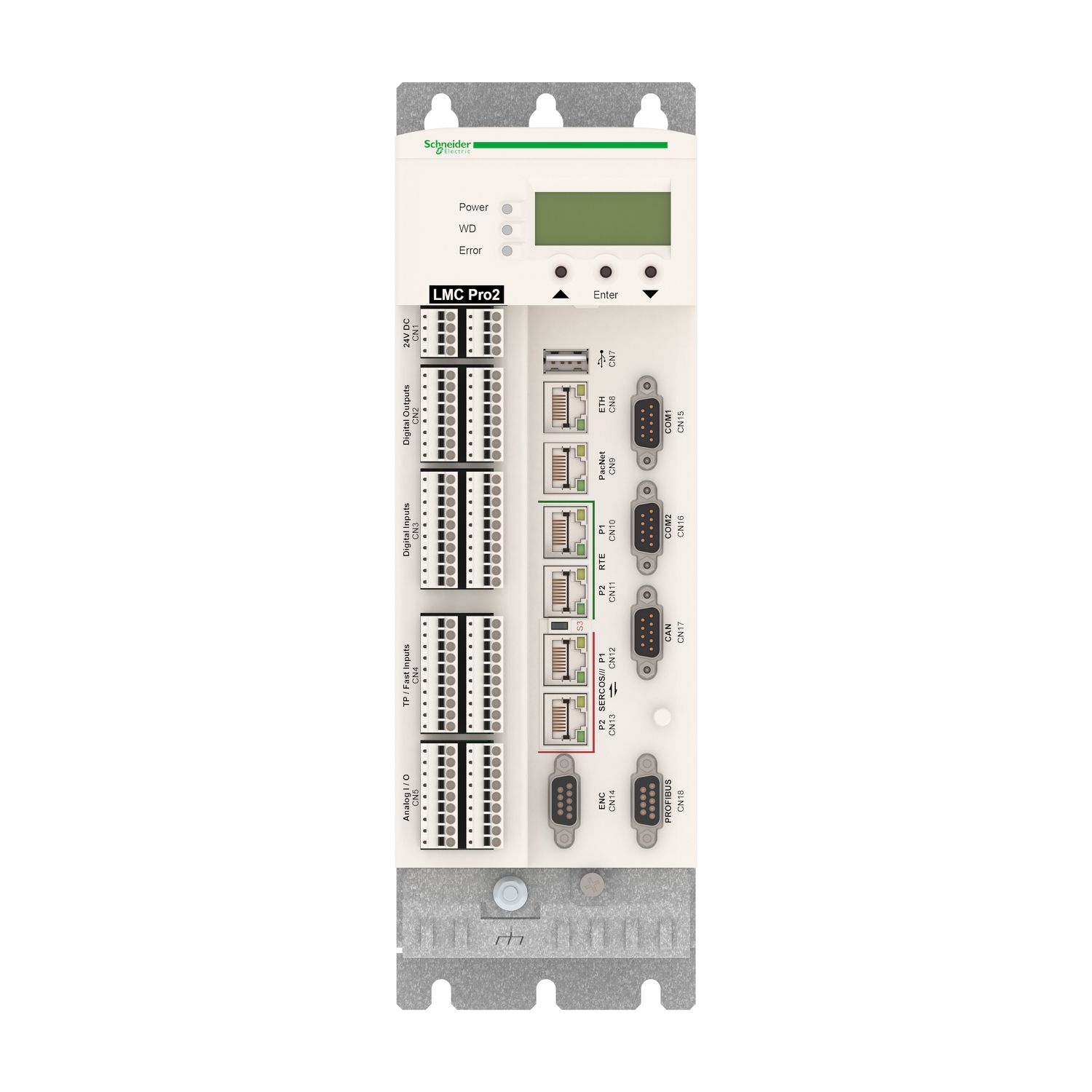

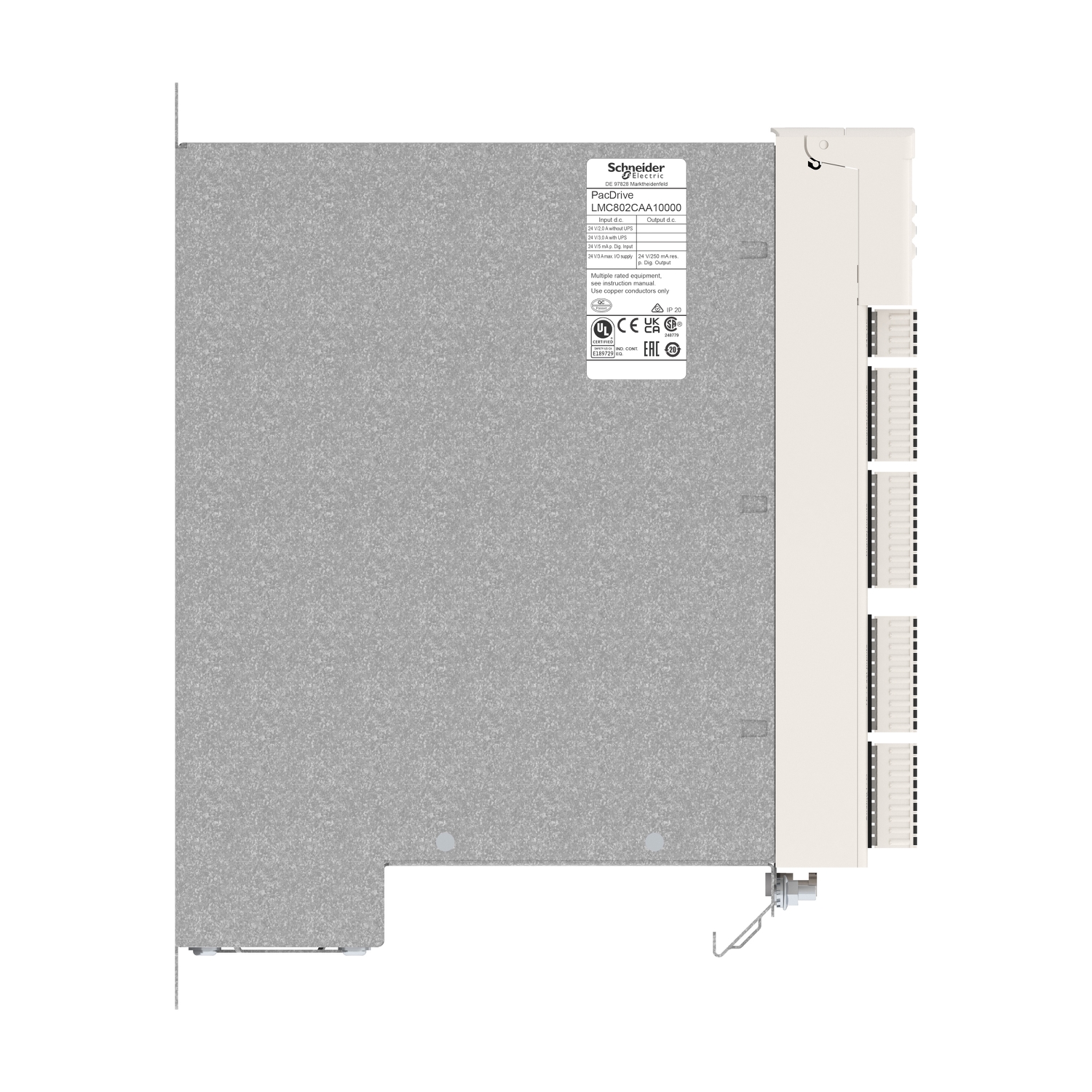

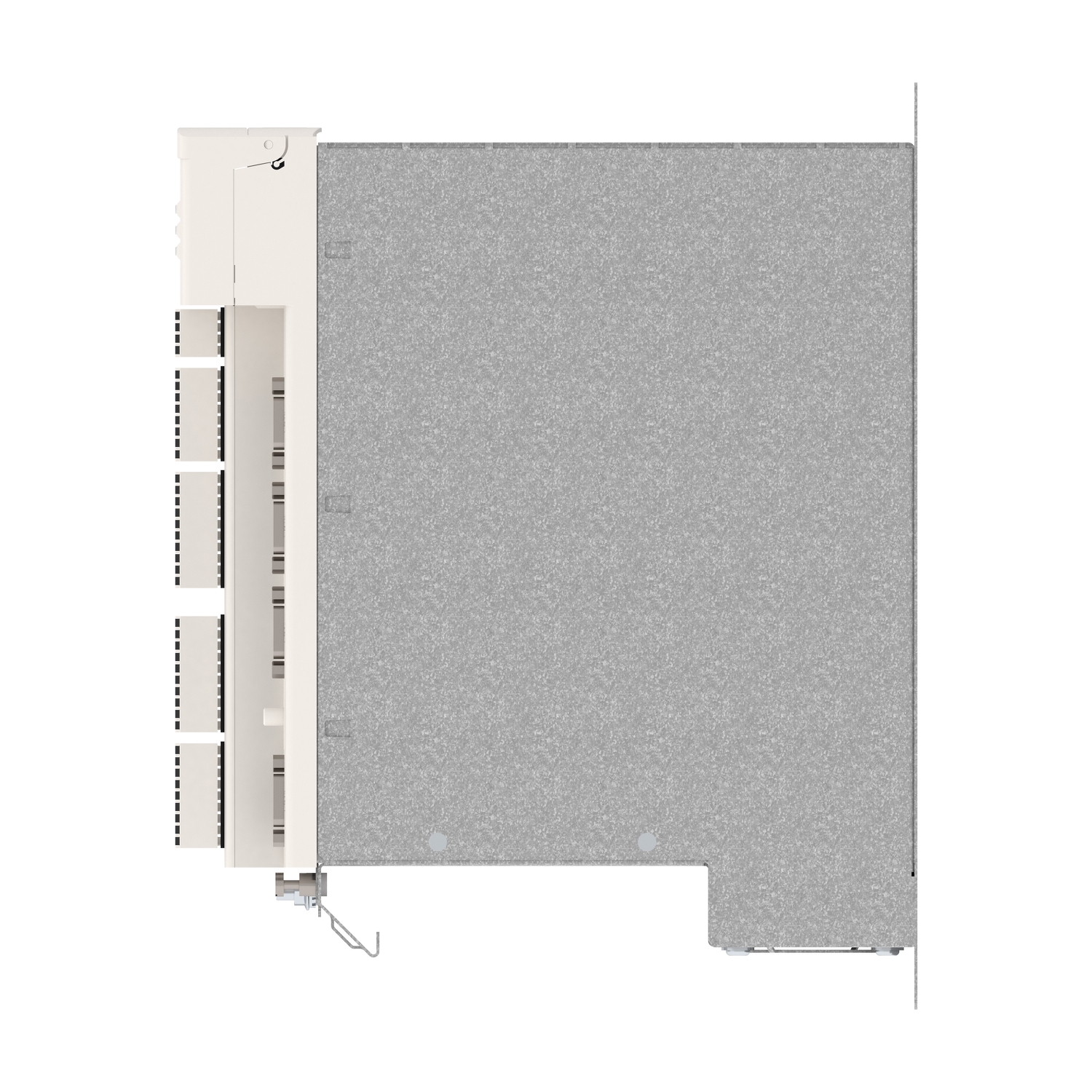

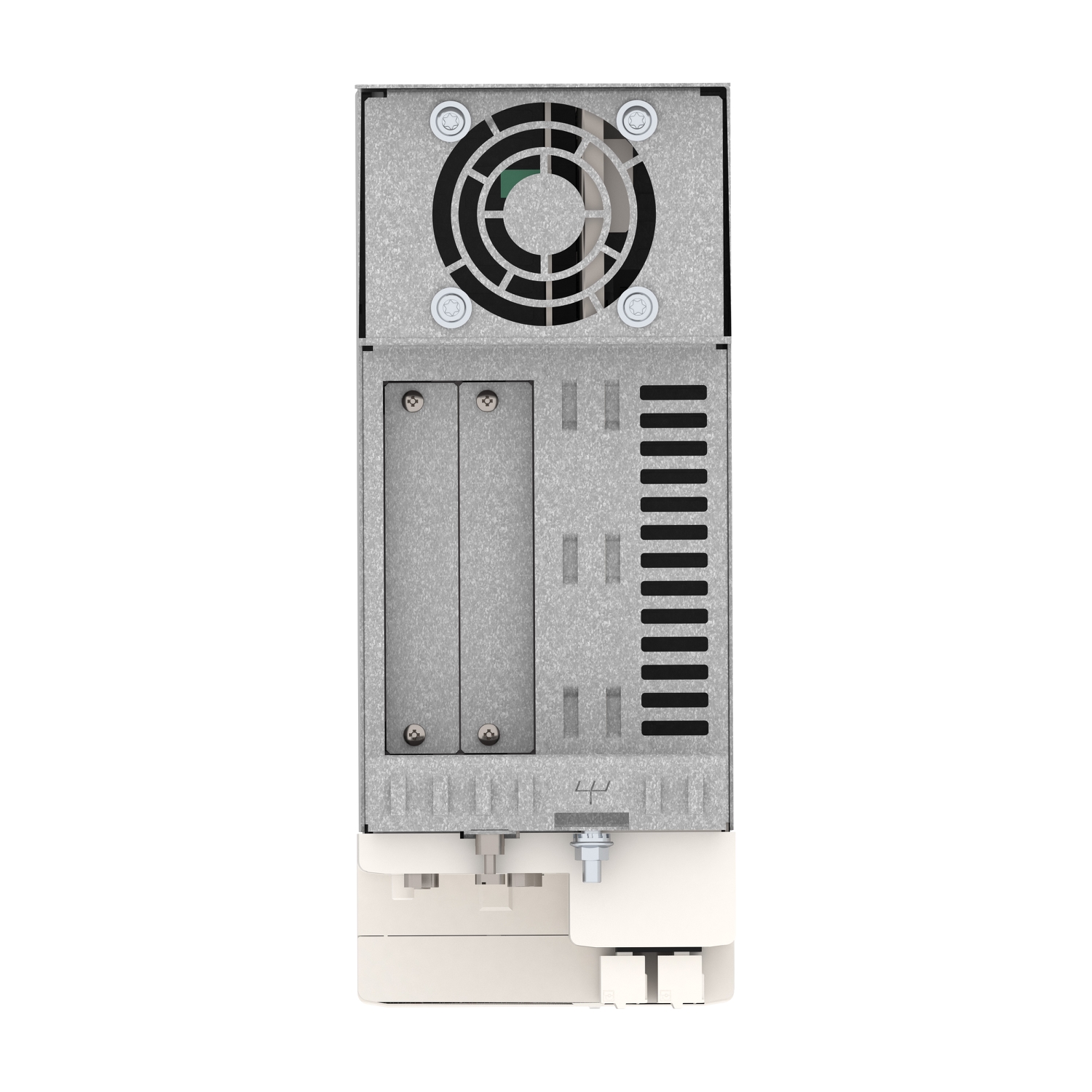

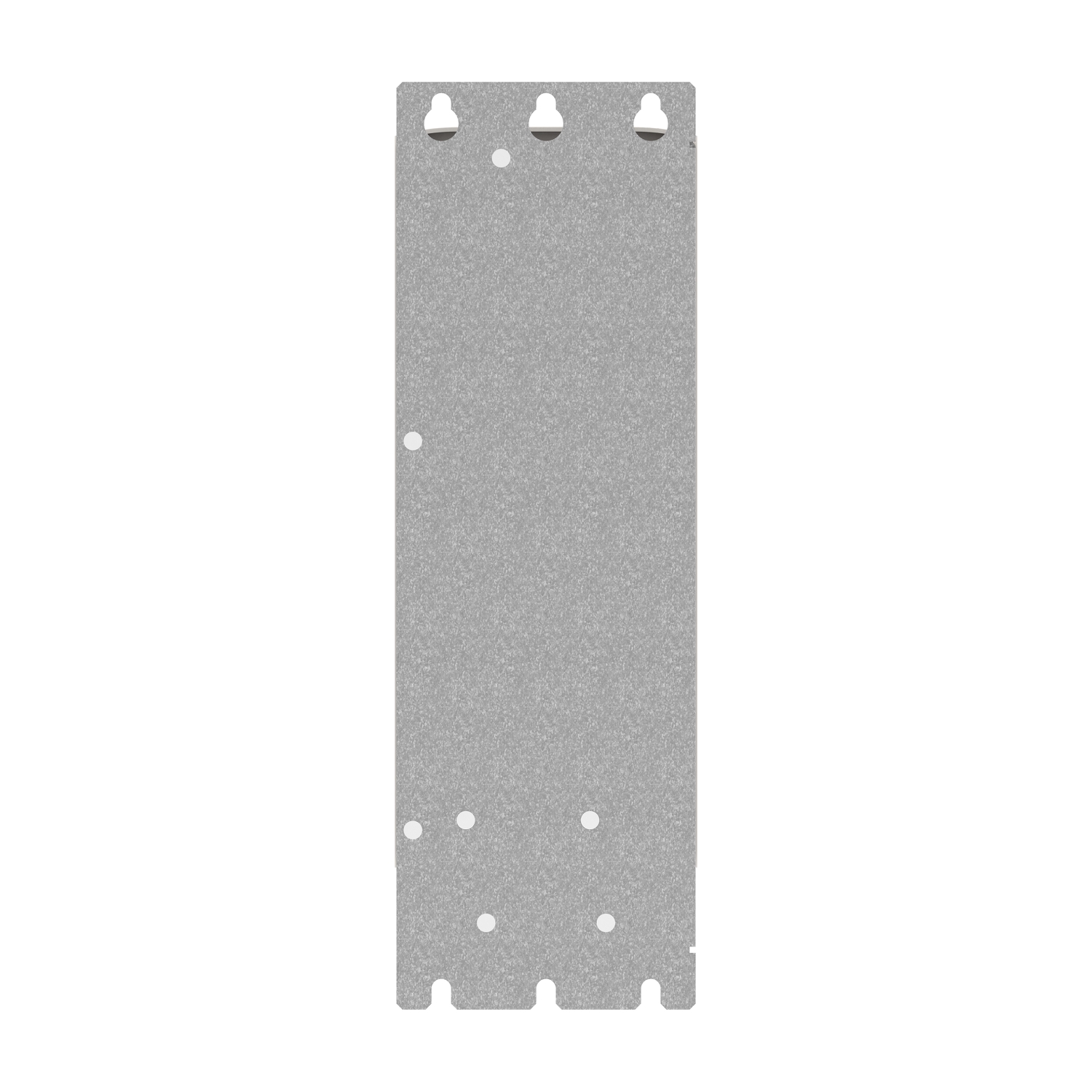

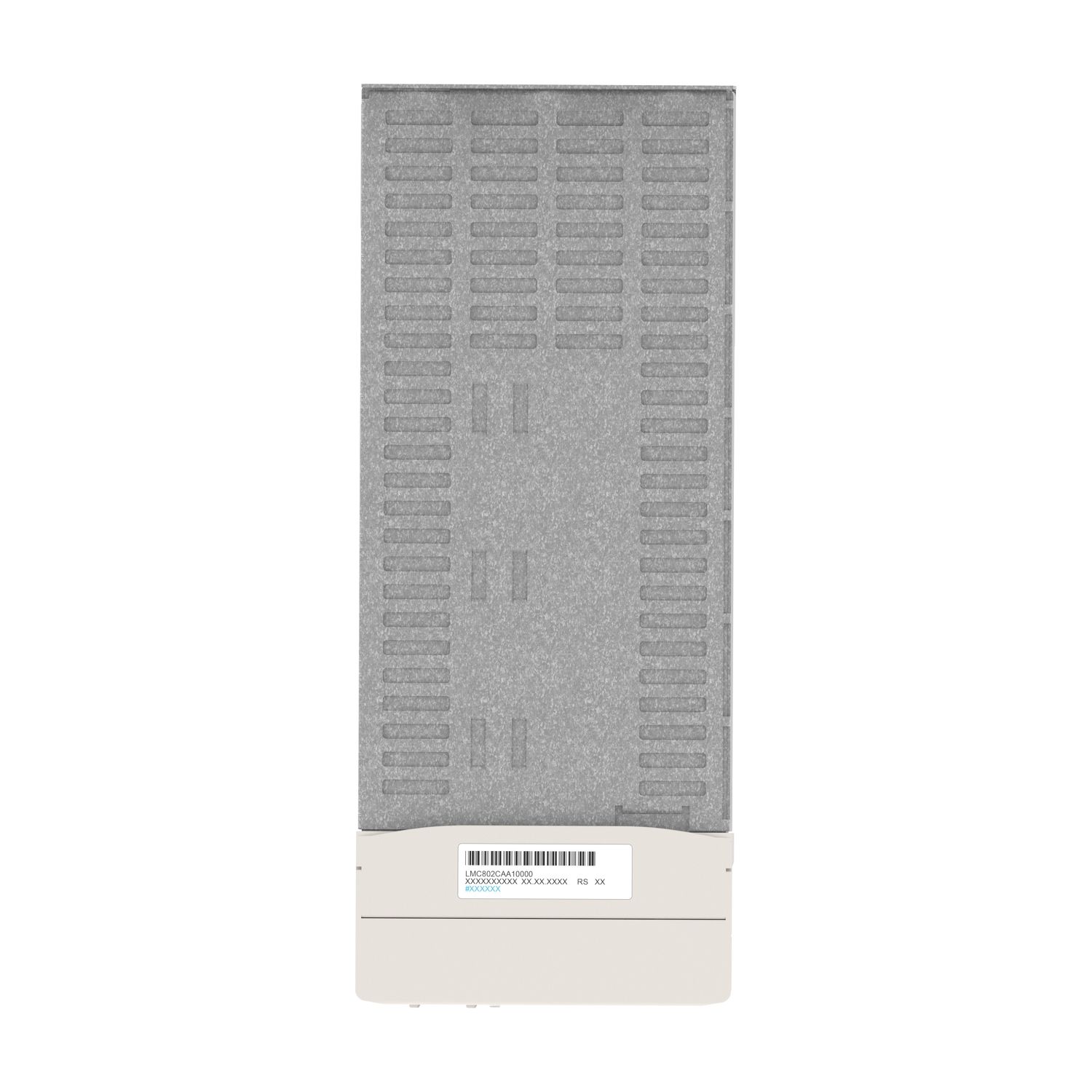

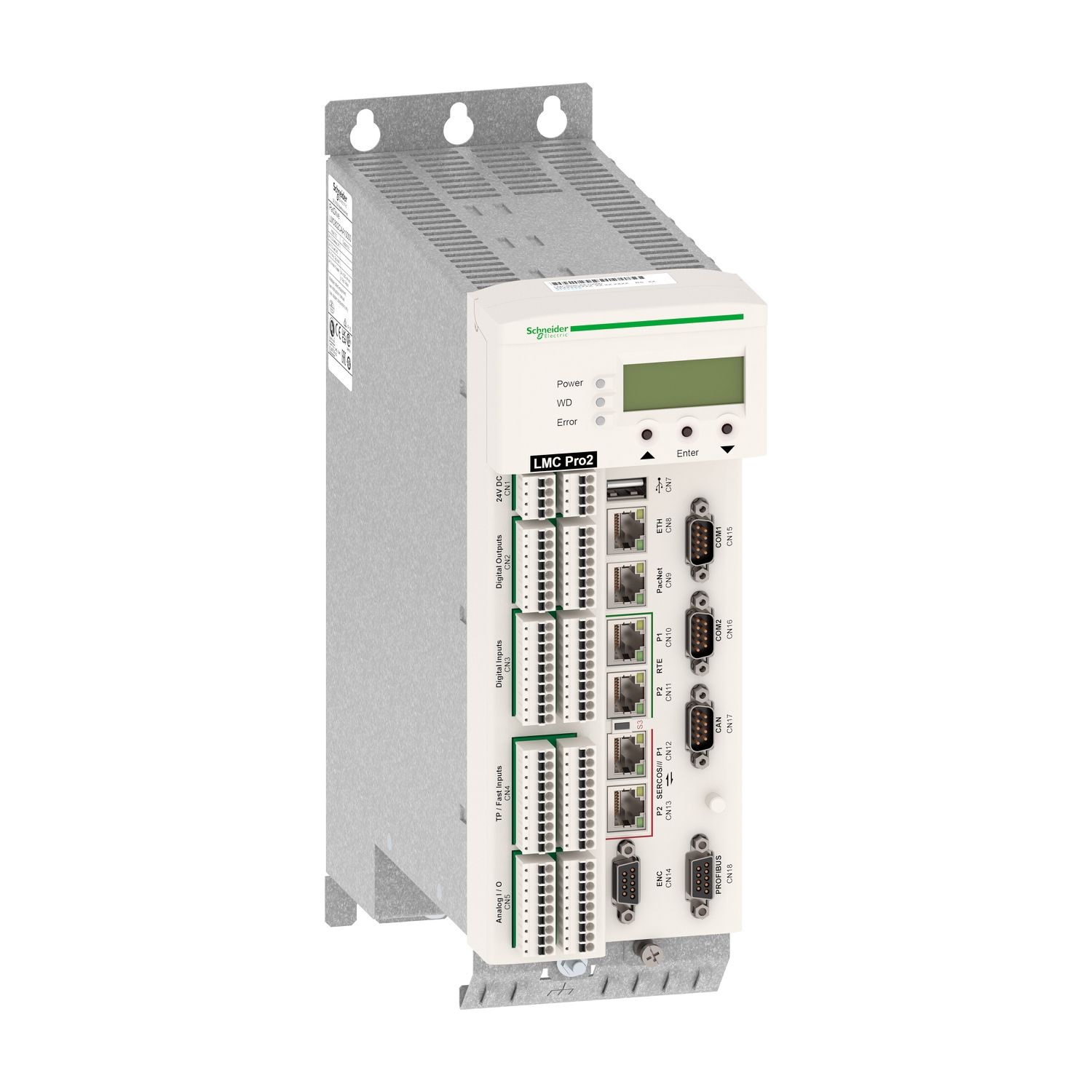

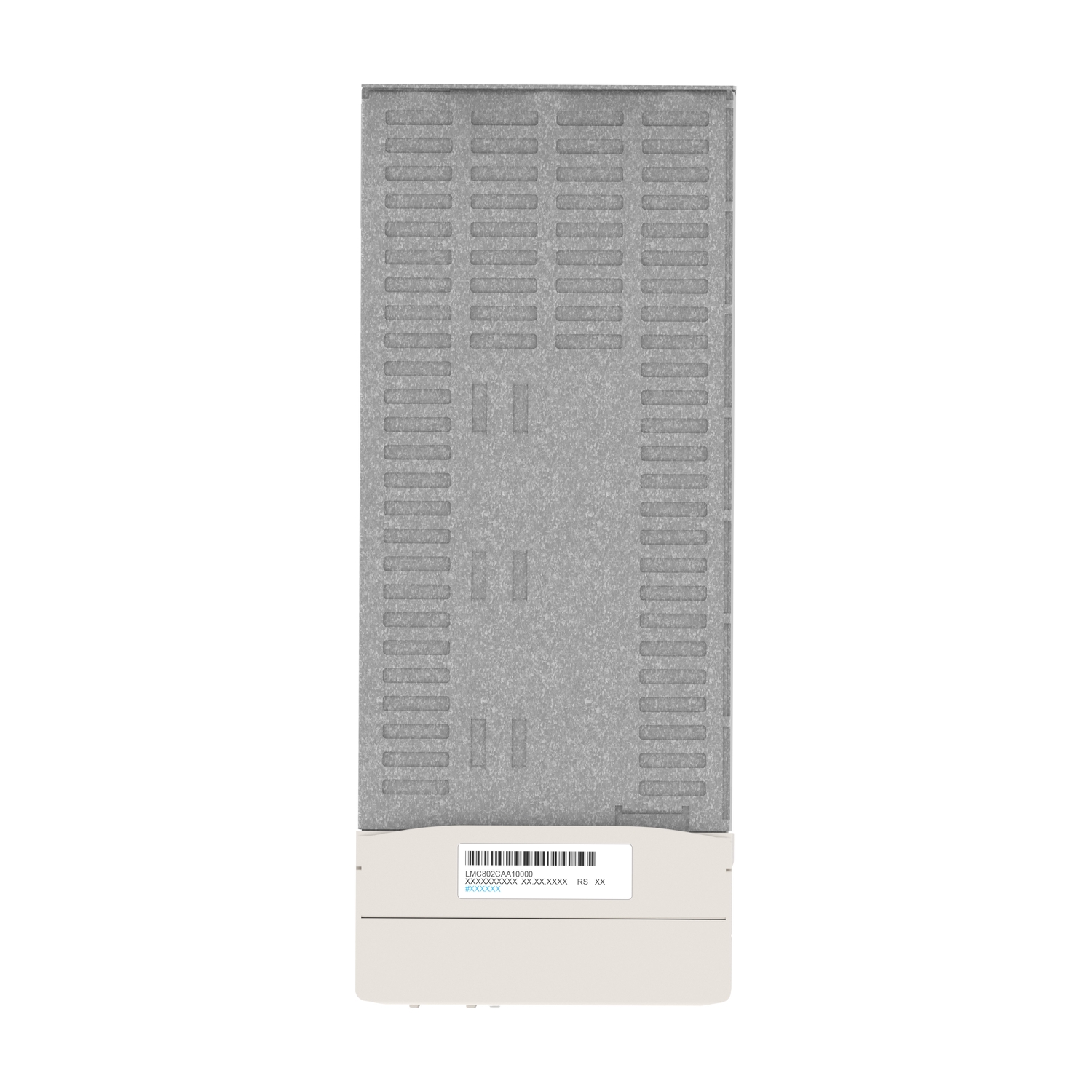

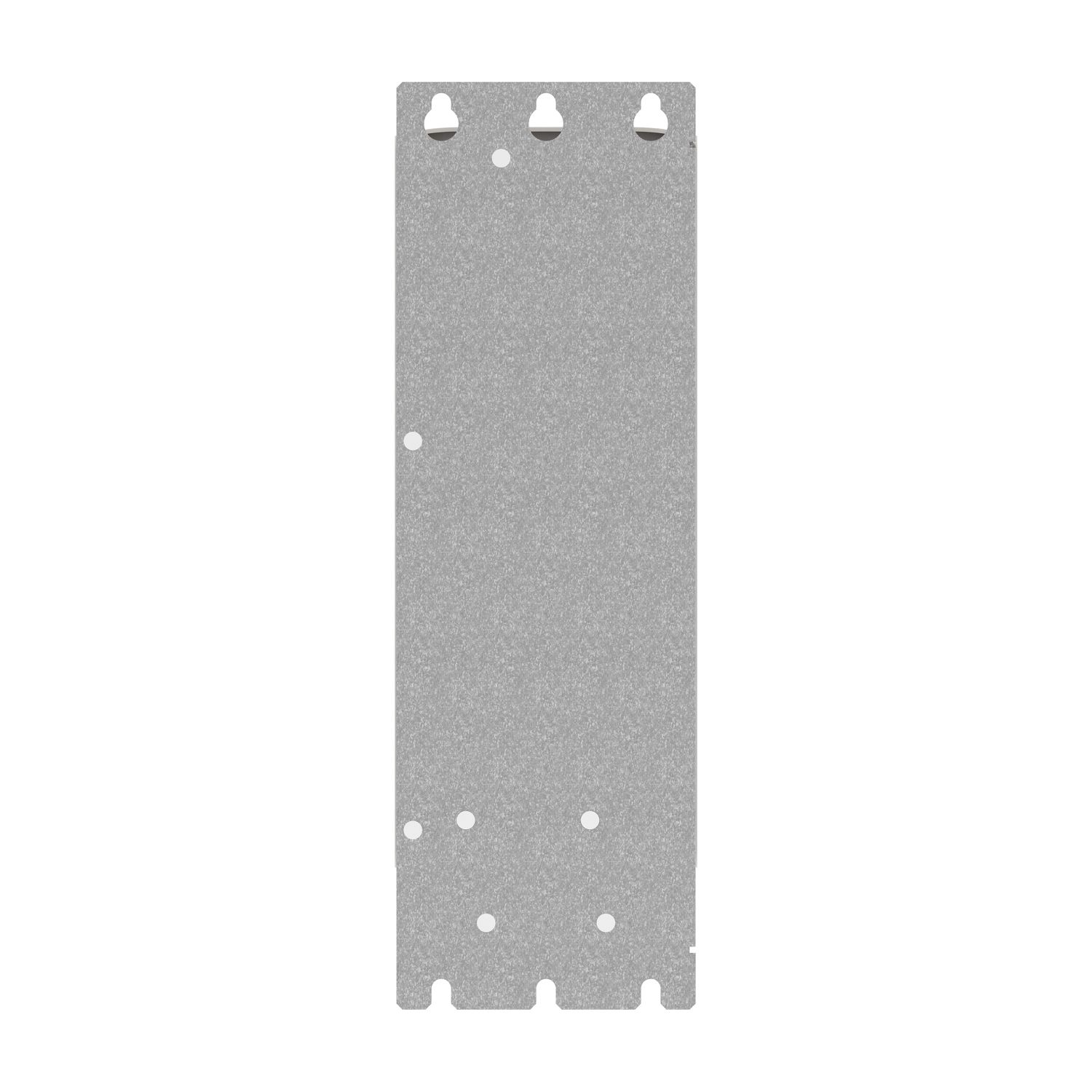

Motion controller LMC802 130 axis - Acc kit - Basic

$13,462.68 INC GST
Available for Shipping : 28-Jan-2026
Motion controller LMC802 130 axis - Acc kit - Basic
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
Environmental Disclosure
Catalog
Circularity Profile
Instruction sheet
Declaration of conformity
User guide
Product Page Link
Product Data Sheet
This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 130 axis, 20 discrete inputs, 4 for interrupt input and 16 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 250mA and a power consumption of 36W. It is an IP20 rated product. Its dimensions are 100mm (width) x 243mm (depth) x 310mm (height). It weighs 3.5kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.

Products specifications

Attribute name Attribute value
Main
Range of product PacDrive 3
Product or component type motion controller
Complementary
Maximum number of I/O expansion module 2
Discrete input number 16 for touch probe input conforming to IEC 61131-2 Type 1, 4 for interrupt input conforming to IEC 61131-2 Type 1, 20 for digital input conforming to IEC 61131-2 Type 1
Supply power supply: 24 VDC, <1 A
Number of axis 130
Product compatibility LMC802
Analogue input resolution 12 bits
[Us] rated supply voltage 24 V DC
Discrete output current 250 mA for digital output
Discrete output number 2 analog output, 16 digital output
Power consumption in W 36 W
Height 310 mm
Maximum leakage current 0.4 mA
Analogue input type current analog input: - 20...20 mA, voltage analog input: - 10...10 V
Depth 243 mm
Width 100 mm
Discrete input current 5 mA for touch probe input, 5 mA for interrupt input, 5 mA for digital input
Integrated connection type 1 Ethernet port, connector RJ45 for protocol Ethernet 10/100/1000BASE-T, FTP/HTTP, 1 port, connector SUB-D 9 for master encoder, 1 COM2 serial link, connector SUB-D 9 for protocol RS422/RS485, 1 COM1 serial link, connector SUB-D 9 for protocol RS232, 1 port, connector SUB-D 9 for protocol Profibus DP, 1 Ethernet port, connector RJ45 for protocol PacNet, 2 Ethernet port, connector RJ45 for protocol RT-Ethernet (real-time), 1 USB port, connector USB type A, 1 CAN port, connector SUB-D 9 for protocol CANopen, 2 Ethernet port, connector RJ45 for protocol Sercos
Memory type 1 GB RAM DDR3L, 256 kB NVRAM
Analogue input number 2
Net weight 3.5 kg
Discrete input voltage type DC
Programming language LD (ladder), ST (structured text), CFC (continuous function chart), IL (instruction list), FBD (function block diagram), SFC (sequential function chart)
Discrete input voltage 20...33 V, 0...6 V
Input impedance 500 Ohm, 100000 Ohm for analog input
Anti bounce filtering 0.1 ms or 1 ms configurable interrupt input, 100 µs touch probe input, 1 ms or 5 ms configurable digital input
Environment
Relative humidity 5-95 % without condensation
Pollution degree 2 conforming to IEC 61131-2
IP degree of protection IP20 conforming to EN/IEC 60529
Ambient air temperature for operation 5-55 °C
Shock resistance 150 m/s² for 6 ms (operation) conforming to EN/IEC 60721-3-3
Vibration resistance 10 m/s² at 8.4-150 Hz, 3.5 mm at 5-8.4 Hz
Standards EN/IEC 61131-2, CSA C22.2 No 14, UL 508C, CSA C22.2 No 274
Product certifications CE, EAC, cULus, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 19.000 cm
Package 1 Width 34.000 cm
Package 1 Length 46.000 cm
Package 1 Weight 4.258 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 38.548 kg
