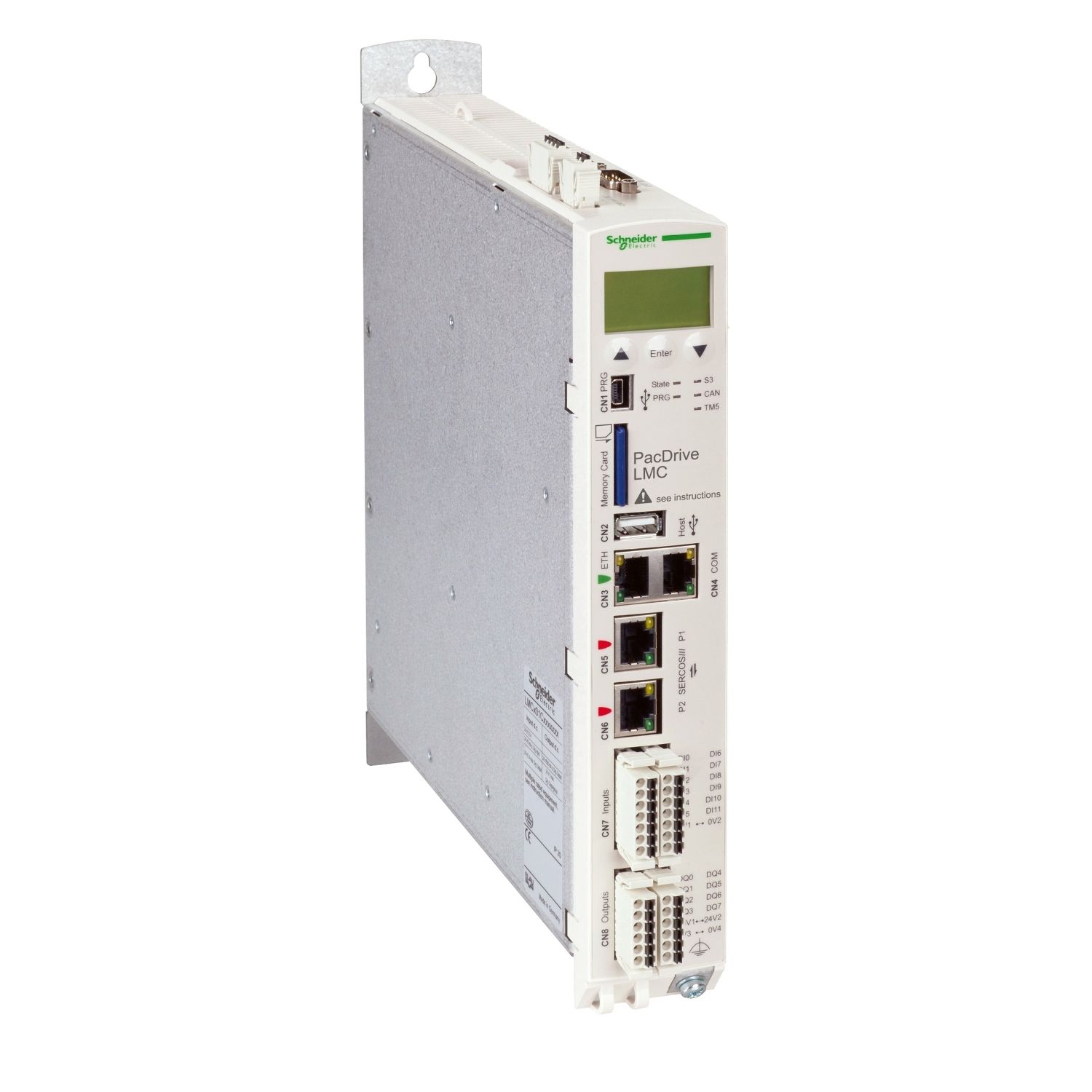

Picture of Motion controller LMC212 12 axis - Acc kit - Basic
SKU:

LMC212CAA10000

Motion controller LMC212 12 axis - Acc kit - Basic

$8,141.76 INC GST
Available for Shipping : 06-Jan-2026
Motion controller LMC212 12 axis - Acc kit - Basic
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Circularity Profile
Declaration of conformity
Environmental Disclosure
Instruction sheet
Catalog
User guide
Product Page Link
Product Data Sheet
This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 12 axis, 8 discrete inputs, 4 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 500mA and a power consumption of 30W. It is an IP20 rated product. Its dimensions are 44mm (width) x 222mm (depth) x 270mm (height). It weighs 2.2kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.

Products specifications

Attribute name Attribute value
Main
Range of product PacDrive 3
Product or component type motion controller
Complementary
Maximum number of I/O expansion module 1
Discrete input number 4 for touch probe input conforming to IEC 61131-2 Type 1, 8 for digital input conforming to IEC 61131-2 Type 1
Supply power supply: 24 VDC
Number of axis 12
Product compatibility LMC212
[Us] rated supply voltage 24 V DC
Discrete output current 500 mA for digital output
Discrete output number 8 digital output
Power consumption in W 30 W
Height 270 mm
Maximum cable distance between devices <50 m
Maximum leakage current 0.5 mA
Depth 222 mm
Width 44 mm
Discrete input current 4 mA for digital input
Integrated connection type 1 USB port, connector USB type A, 1 CAN port, connector SUB-D 9 for protocol CANopen, 1 serial link, connector RJ45 for protocol RS232/RS485, 1 Ethernet port, connector RJ45 for master encoder, 1 Ethernet port, connector RJ45 for protocol Ethernet 10/100BASE-T, FTP/HTTP, 2 Ethernet port, connector RJ45 for protocol Sercos
Memory type 128 kB NVRAM, 512 MB RAM DDR2
Net weight 2.2 kg
Discrete input voltage type DC
Programming language SFC (sequential function chart), CFC (continuous function chart), FBD (function block diagram), LD (ladder), IL (instruction list), ST (structured text)
Discrete input voltage 15...30 V, - 3...5 V
Anti bounce filtering 100 µs...4.29 s configurable interrupt input, 100 µs...4.29 s configurable touch probe input, 100 µs...4.29 s configurable digital input
Environment
Relative humidity 5-95 % without condensation
Pollution degree 2 conforming to IEC 61131-2
IP degree of protection IP20 conforming to EN/IEC 60529
Ambient air temperature for operation 5-55 °C
Operating altitude 0...2000 m
Shock resistance 150 m/s² for 6 ms (operation) conforming to EN/IEC 60721-3-3
Vibration resistance 10 m/s² at 8.4-150 Hz, 3.5 mm at 5-8.4 Hz
Standards EN/IEC 61131-2, UL 508, CSA C22.2 No 14, CSA C22.2 No 142
Product certifications CSA, cULus, EAC, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.500 cm
Package 1 Width 33.500 cm
Package 1 Length 44.000 cm
Package 1 Weight 2.204 kg
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 32.100 kg
