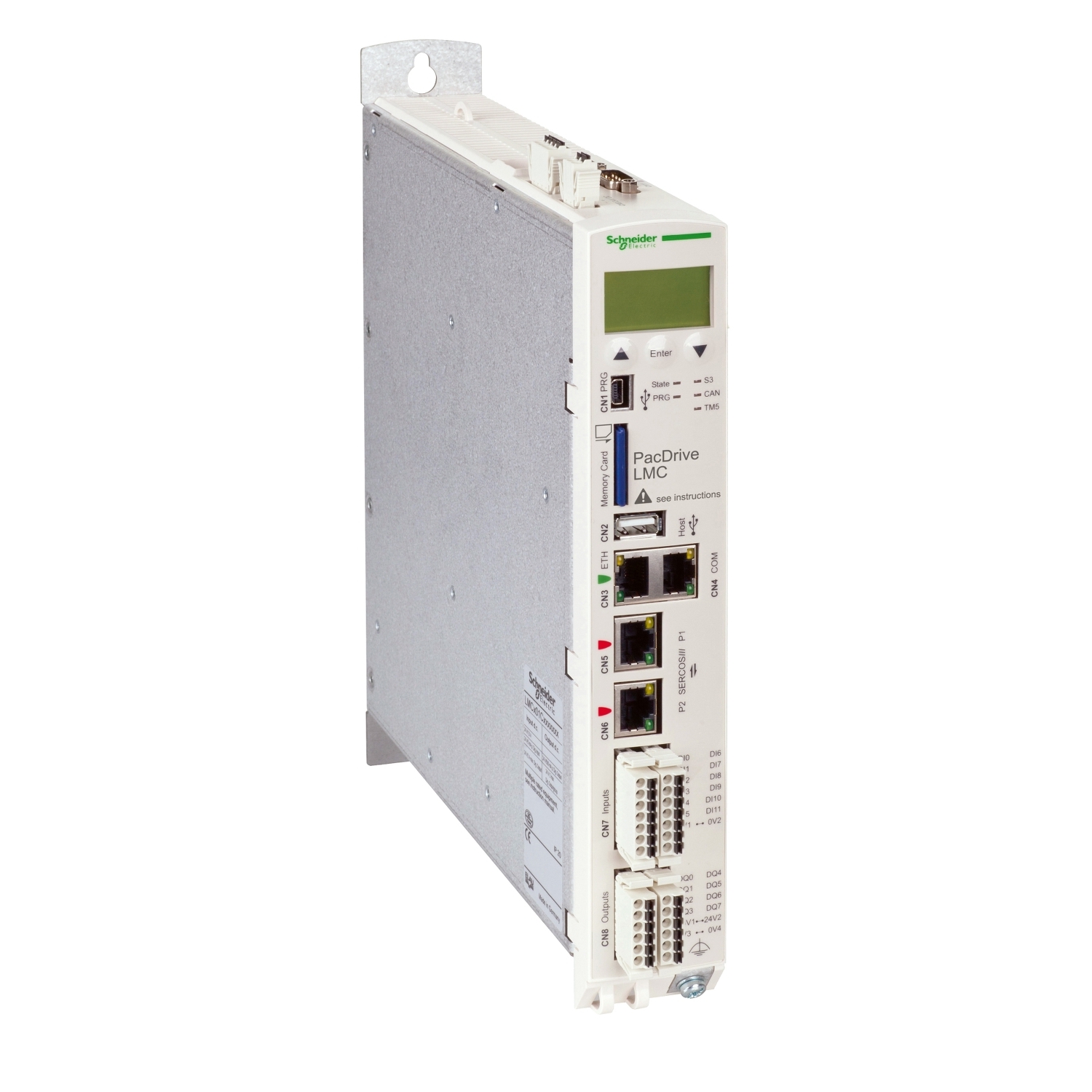

Picture of Motion controller LMC201 8 axis - Acc kit - Basic
SKU:

LMC201CAA10000

Motion controller LMC201 8 axis - Acc kit - Basic

$6,688.44 INC GST
Available for Shipping : 28-Jan-2026
Motion controller LMC201 8 axis - Acc kit - Basic
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
Declaration of conformity
Environmental Disclosure
Circularity Profile
Instruction sheet
Catalog
User guide
Product Page Link
Product Data Sheet
This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 8 axis, 8 discrete inputs, 4 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 500mA and a power consumption of 30W. It is an IP20 rated product. Its dimensions are 44mm (width) x 222mm (depth) x 270mm (height). It weighs 2.2kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.

Products specifications

Attribute name Attribute value
Main
Product or component type motion controller
Range of product PacDrive 3
Complementary
Maximum number of I/O expansion module 1
Discrete input number 4 for touch probe input conforming to IEC 61131-2 Type 1, 8 for digital input conforming to IEC 61131-2 Type 1
Maximum leakage current 0.5 mA
Supply power supply: 24 VDC
Number of axis 8
Product compatibility LMC201
Depth 222 mm
Width 44 mm
Discrete input current 4 mA for digital input
Integrated connection type 1 USB port, connector USB type A, 1 CAN port, connector SUB-D 9 for protocol CANopen, 1 serial link, connector RJ45 for protocol RS232/RS485, 1 Ethernet port, connector RJ45 for master encoder, 1 Ethernet port, connector RJ45 for protocol Ethernet 10/100BASE-T, FTP/HTTP, 2 Ethernet port, connector RJ45 for protocol Sercos
[Us] rated supply voltage 24 V DC
Memory type 128 kB NVRAM, 512 MB RAM DDR2
Discrete output current 500 mA for digital output
Net weight 2.2 kg
Discrete output number 8 digital output
Power consumption in W 30 W
Discrete input voltage type DC
Programming language IL (instruction list), FBD (function block diagram), CFC (continuous function chart), ST (structured text), SFC (sequential function chart), LD (ladder)
Discrete input voltage - 3...5 V, 15...30 V
Height 270 mm
Maximum cable distance between devices <50 m
Anti bounce filtering 100 µs...4.29 s configurable interrupt input, 100 µs...4.29 s configurable touch probe input, 100 µs...4.29 s configurable digital input
Environment
Operating altitude 0...2000 m
Relative humidity 5-95 % without condensation
Pollution degree 2 conforming to IEC 61131-2
Shock resistance 150 m/s² for 6 ms (operation) conforming to EN/IEC 60721-3-3
Vibration resistance 10 m/s² at 8.4-150 Hz, 3.5 mm at 5-8.4 Hz
IP degree of protection IP20 conforming to EN/IEC 60529
Ambient air temperature for operation 5-55 °C
Standards EN/IEC 61131-2, UL 508, CSA C22.2 No 142, CSA C22.2 No 14
Product certifications EAC, CE, CSA, cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.600 cm
Package 1 Width 33.700 cm
Package 1 Length 45.800 cm
Package 1 Weight 2.228 kg
