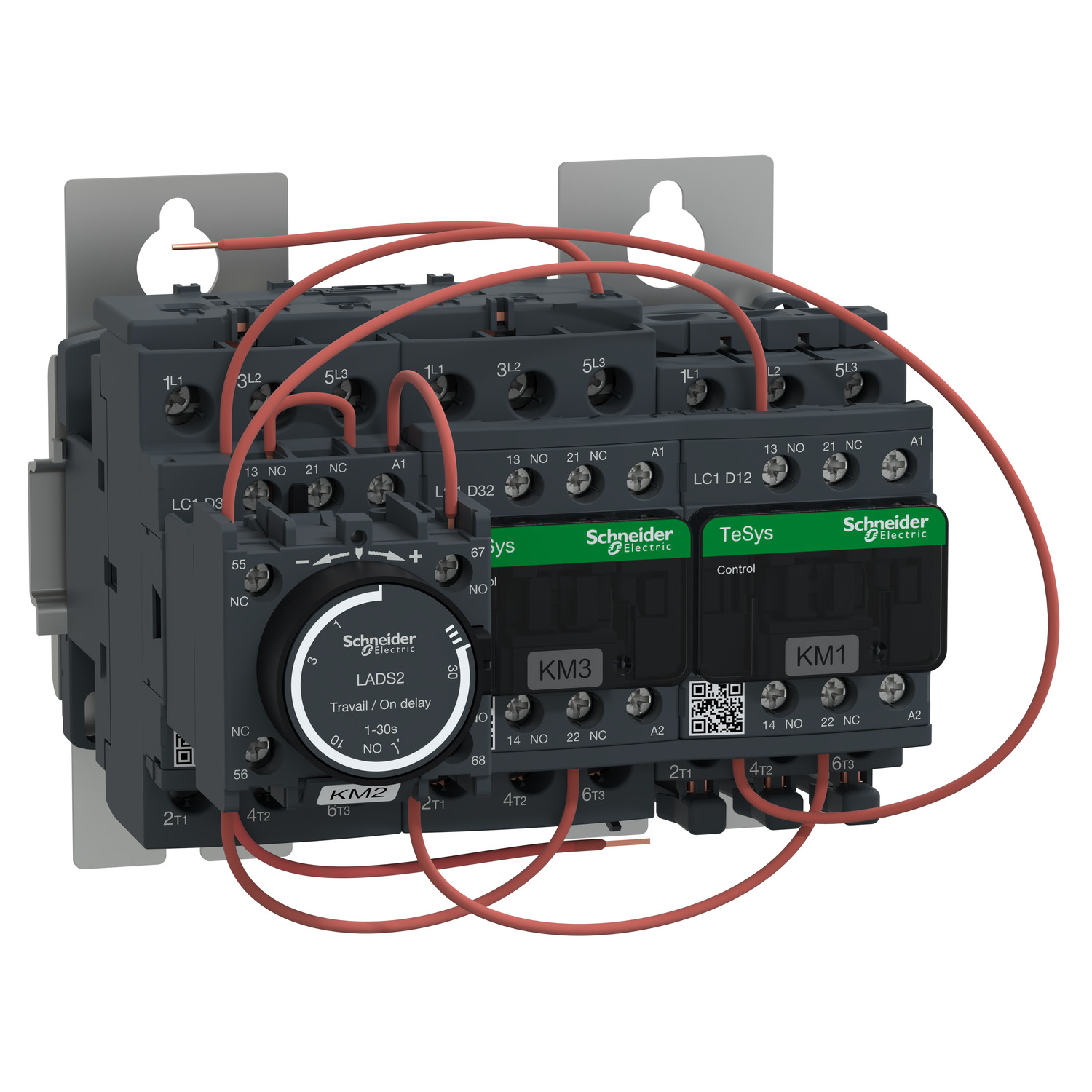

Picture of TeSys; TeSys Deca, Star delta starter, 3 x 3P (3 NO), 32A, 110VAC 50/60Hz coil
SKU:

LC3D32AF7

TeSys; TeSys Deca, Star delta starter, 3 x 3P (3 NO), 32A, 110VAC 50/60Hz coil

Old price: $1,955.80 INC GST
$1,232.15 INC GST
Available for Shipping : 19-Jan-2026
Product Selector
TeSys; TeSys Deca, Star delta starter, 3 x 3P (3 NO), 32A, 110VAC 50/60Hz coil
  • New modern look & feel of all machines
  • Designed to meet the requirements of industrial and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
Circularity Profile
Environmental Disclosure
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
TeSys D pre-assembled star-delta starter, for motor control applications up to 11kW@400V in delta connection. Plate mounted starter, open version, composed of 3 contactors LC1D with 24V 50/60Hz AC coils, 1NC built-in auxiliary contact on star, a time-delay contact block 1-30 sec. For operating rates until 30 starts/hour, maximum starting time 30 sec. Compact assembly (144mm width), screw fixing. Equipped with pre-wired star delta power connections, and mechanical interlock, the use of a thermal overload relay (to be ordered separately) is strongly recommended. Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Electrical durability 1.65 Mcycles 32 A AC-3 at Ue <= 440 V
Auxiliary contact composition 1 NC for KM1 star contactor
Device presentation pre-wired
Control circuit type AC at 50/60 Hz
[Ui] rated insulation voltage signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified, power circuit: 690 V conforming to IEC 60947-4-1
Overvoltage category III
[Ie] rated operational current 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Utilisation category AC-3
Pole contact composition 3 x 3 NO
[Uc] control circuit voltage 110 V AC 50/60 Hz
Product certifications UL, LROS (Lloyds register of shipping), CSA, CCC, DNV, BV, GOST, GL, RINA
Device short name LC3D
Provided equipment protective cover
Range TeSys Deca, TeSys
Range of product TeSys Deca
Interlocking type mechanical
Poles description 3 x 3P
Motor power kW 30 kW at 440 V AC 50/60 Hz, 30 kW at 415 V AC 50/60 Hz, 25 kW at 380/400 V AC 50/60 Hz, 15 kW at 220/230 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Product name TeSys Deca
Product or component type star delta starter
Contactor application motor control
Mounting support plate
Standards IEC 60335-1, IEC 60947-5-1, IEC 60947-4-1, CSA C22.2 No 14, UL 508, EN 60947-4-1, EN 60947-5-1
[Ue] rated operational voltage power circuit: <= 690 V AC 25...400 Hz
Complementary
Signalling circuit frequency 25...400 Hz
Motor starter type star delta starter
Starting time 30 s
Height 124 mm
Switching voltage 17 V for signalling circuit
Auxiliary contacts type mirror contact conforming to IEC 60947-4-1 3 x 1 NC, mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NC
Coil technology without built-in suppressor module
Inrush power in VA 70-70 VA 50 Hz cos phi 0.75 (at 20 °C), 70-70 VA 60 Hz cos phi 0.75 (at 20 °C)
Net weight 2.03 kg
Contactor coil voltage 110 V AC standard
Minimum switching current 5 mA for signalling circuit
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Heat dissipation 2-3 W at 50/60 Hz
Mechanical durability 15 Mcycles
Tightening torque control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2, power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit voltage limits operational: 0.85...1.1 Uc at 60 Hz (at <60 °C), operational: 0.8...1.1 Uc at 50 Hz (at <60 °C), drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
Depth 149 mm
Width 166 mm
Hold-in power consumption in VA 7-7 VA 50 Hz cos phi 0.3 (at 20 °C), 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate 30 cyc/h 60 °C
Connections - terminals power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Power range 30-50 kW at 380-440 V 3 phases, 15-25 kW at 200-240 V 3 phases, 15-25 kW at 380-440 V 3 phases
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Ambient air temperature for storage -60-80 °C
Climatic withstand conforming to IEC 60947-1 Annex Q category D,  conforming to IACS E10
Ambient air temperature for operation -40-70 °C at Uc
Operating altitude 3000 m without derating
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Pollution degree 3
Mechanical robustness shocks contactor open: 8 Gn for 11 ms, shocks contactor closed: 15 Gn for 11 ms, vibrations contactor closed: 4 Gn, 5...300 Hz, vibrations contactor open: 2 Gn, 5...300 Hz
Flame retardance V1 conforming to UL 94
Insulation resistance > 10 MOhm for signalling circuit
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.100 cm
Package 1 Width 17.800 cm
Package 1 Length 23.500 cm
Package 1 Weight 1.712 kg
