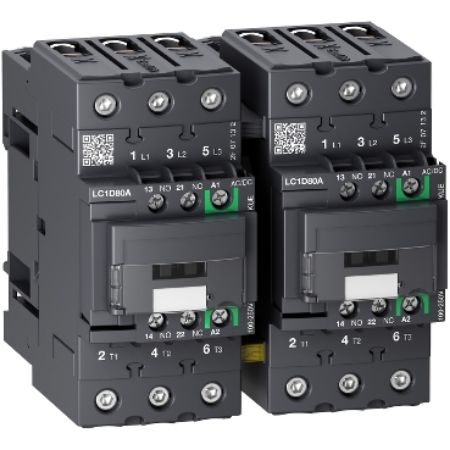

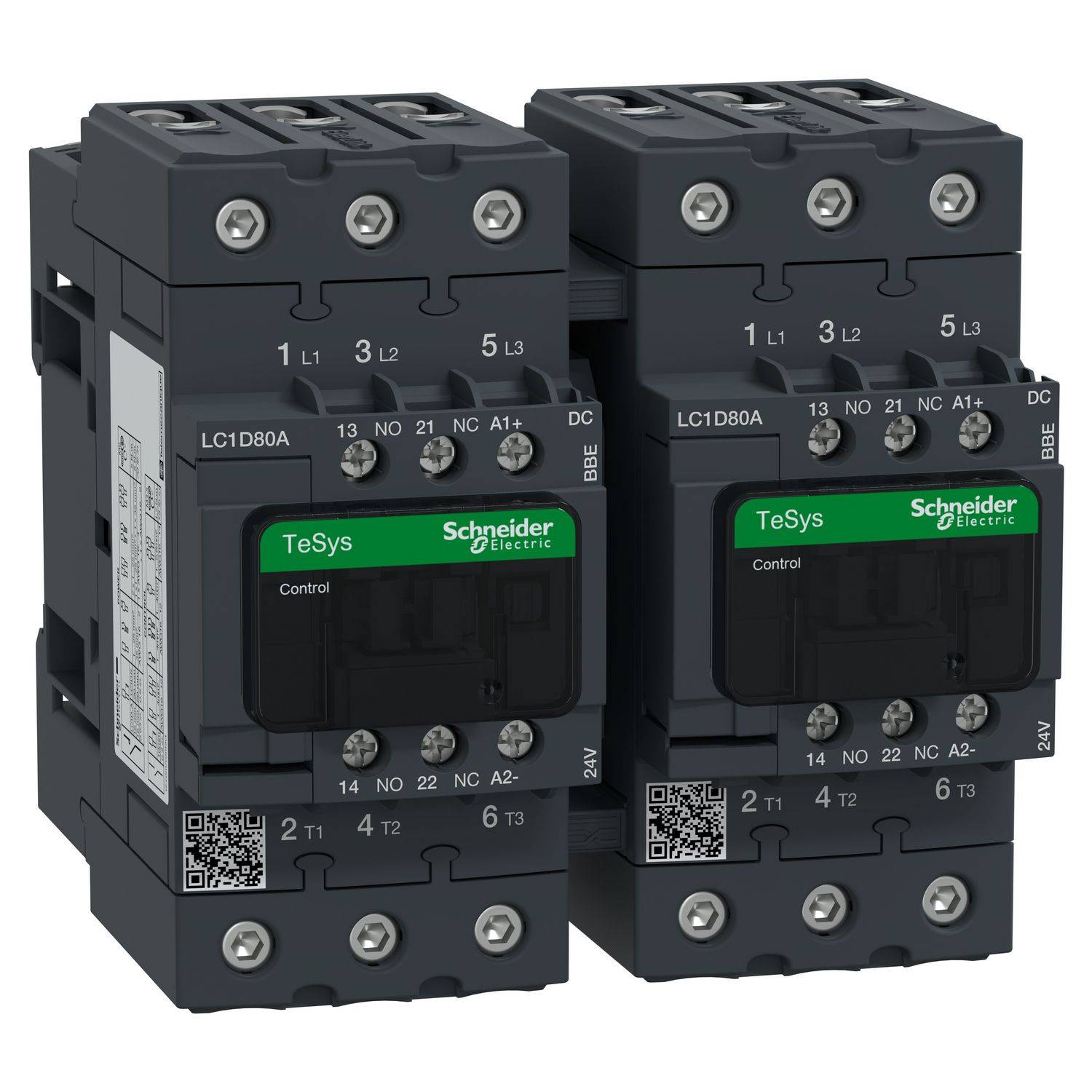

Picture of Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24V DC coil, EverLink BTR screws
SKU:

LC2D80ABBE

Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24V DC coil, EverLink BTR screws

Old price: $2,277.00 INC GST
$1,434.51 INC GST
Available for Shipping : 03-Feb-2026
Product Selector
Reversing contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 66A, 24V DC coil, EverLink BTR screws
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 03-Feb-2026
Declaration of conformity
Environmental Disclosure
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides low consumption 100-250V AC/DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
[Icw] rated short-time withstand current 260 A 40 °C - 1 min for power circuit, 110 A 40 °C - 10 min for power circuit, 900 A 40 °C - 1 s for power circuit, 520 A 40 °C - 10 s for power circuit, 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit
Device short name LC2D
Mechanical durability 6 Mcycles
Tightening torque power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm, power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Electrical durability 1 Mcycles 66 A AC-3e, 0.5 Mcycles 80 A AC-1 at Ue <= 440 V, 1 Mcycles 66 A AC-3 at Ue <= 440 V
Operating time 20...80 ms opening, 55...65 ms closing
Device presentation preassembled with reversing power busbar
Range TeSys Deca, TeSys
Connections - terminals power circuit: EverLink BTR screw connectors 2 cable(s) 1-25 mm²flexible, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm²flexible, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible, power circuit: EverLink BTR screw connectors 2 cable(s) 1-25 mm²solid, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm²solid, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid, power circuit: EverLink BTR screw connectors 2 cable(s) 1-25 mm²flexible with cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end
Associated fuse rating 125 A gG at <= 690 V coordination type 2 for power circuit, 125 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Irms rated making capacity 1000 A at 440 V for power circuit conforming to IEC 60947, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity 1000 A at 440 V for power circuit conforming to IEC 60947
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Standards IEC 60335-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Control circuit type DC low consumption
[Ith] conventional free air thermal current 80 A (at 60 °C) for power circuit, 10 A (at 60 °C) for signalling circuit
Range of product TeSys Deca
Interlocking type mechanical
Protective cover with
[Ui] rated insulation voltage signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 690 V conforming to IEC 60947-4-1
Motor power kW 37 kW at 660...690 V AC 50 Hz, 37 kW at 500 V AC 50 Hz, 37 kW at 440 V AC 50 Hz, 37 kW at 415 V AC 50 Hz, 37 kW at 380...400 V AC 50 Hz, 18.5 kW at 220...230 V AC 50 Hz
Motor power hp 50 hp at 575/600 V AC 60 Hz for 3 phases motors, 40 hp at 460/480 V AC 60 Hz for 3 phases motors, 20 hp at 230/240 V AC 60 Hz for 3 phases motors, 20 hp at 200/208 V AC 60 Hz for 3 phases motors, 10 hp at 230/240 V AC 60 Hz for 1 phase motors, 5 hp at 115 V AC 60 Hz for 1 phase motors
Overvoltage category III
Poles description 3P
Maximum operating rate 3600 cyc/h 60 °C
[Ie] rated operational current 66 A (at <60 °C) AC-3e for power circuit, 66 A (at <60 °C) at <= 440 V AC-3 for power circuit, 80 A (at <60 °C) at <= 440 V AC-1 for power circuit
Utilisation category AC-3e, AC-3, AC-1
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Product name TeSys Deca, Tesys Deca green
Product certifications UKCA, LROS (Lloyds register of shipping), DNV-GL, KC, UL, EAC, CSA, CCC
Product or component type reversing contactor
Contactor application motor control, resistive load
Mounting support plate, rail
Auxiliary contact composition 1 NO + 1 NC
Average impedance 1.5 mOhm - Ith 80 A 50 Hz for power circuit
Power dissipation per pole 6.5 W AC-3e, 6.5 W AC-3, 9.6 W AC-1
[Ue] rated operational voltage power circuit: 690 V AC 25...400 Hz
[Uc] control circuit voltage 24 V DC
Complementary
Compatibility code LC2D
Heat dissipation 0.5-0.5 W
Signalling circuit frequency 25...400 Hz
Minimum switching voltage 17 V for signalling circuit
Control circuit voltage limits 1...1.2 Uc (60-70 °C):operational DC, 0.8...1.2 Uc (-40-60 °C):operational DC, <= 0.1 Uc (-40-70 °C):drop-out DC
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Inrush power in W 11-11 W at 20 °C
Coil technology built-in bidirectional peak limiting
Insulation resistance > 10 MOhm for signalling circuit
Hold-in power consumption in W 0.5-0.5 W at 20 °C
Minimum switching current 5 mA for signalling circuit
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Environment
Colour green (SE GREEN 2), grey (SE GREY 6)
Fire resistance 850 °C conforming to IEC 60695-2-1
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Ambient air temperature for storage -60-80 °C
Pollution degree 3
Climatic withstand conforming to IEC 60947-1 Annex Q category D,  conforming to IACS E10
Height 122 mm
Ambient air temperature for operation 60-70 °C with derating, -40-60 °C
Mechanical robustness shocks contactor closed: 15 Gn for 11 ms, shocks contactor open: 10 Gn for 11 ms, vibrations contactor closed: 4 Gn, 5...300 Hz, vibrations contactor open: 2 Gn, 5...300 Hz
Depth 120 mm
Width 119 mm
Operating altitude 0...3000 m
Flame retardance V1 conforming to UL 94
Net weight 2.174 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14 cm
Package 1 Width 16.2 cm
Package 1 Length 19.8 cm
Package 1 Weight 2.291 kg
