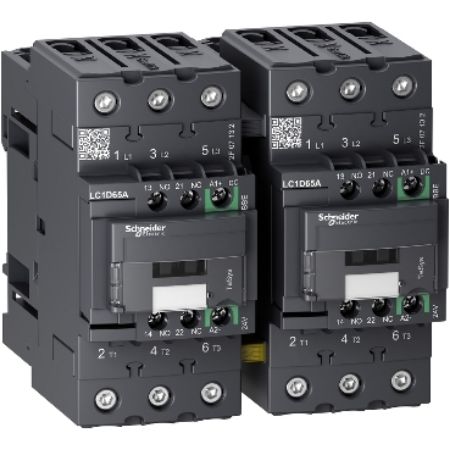

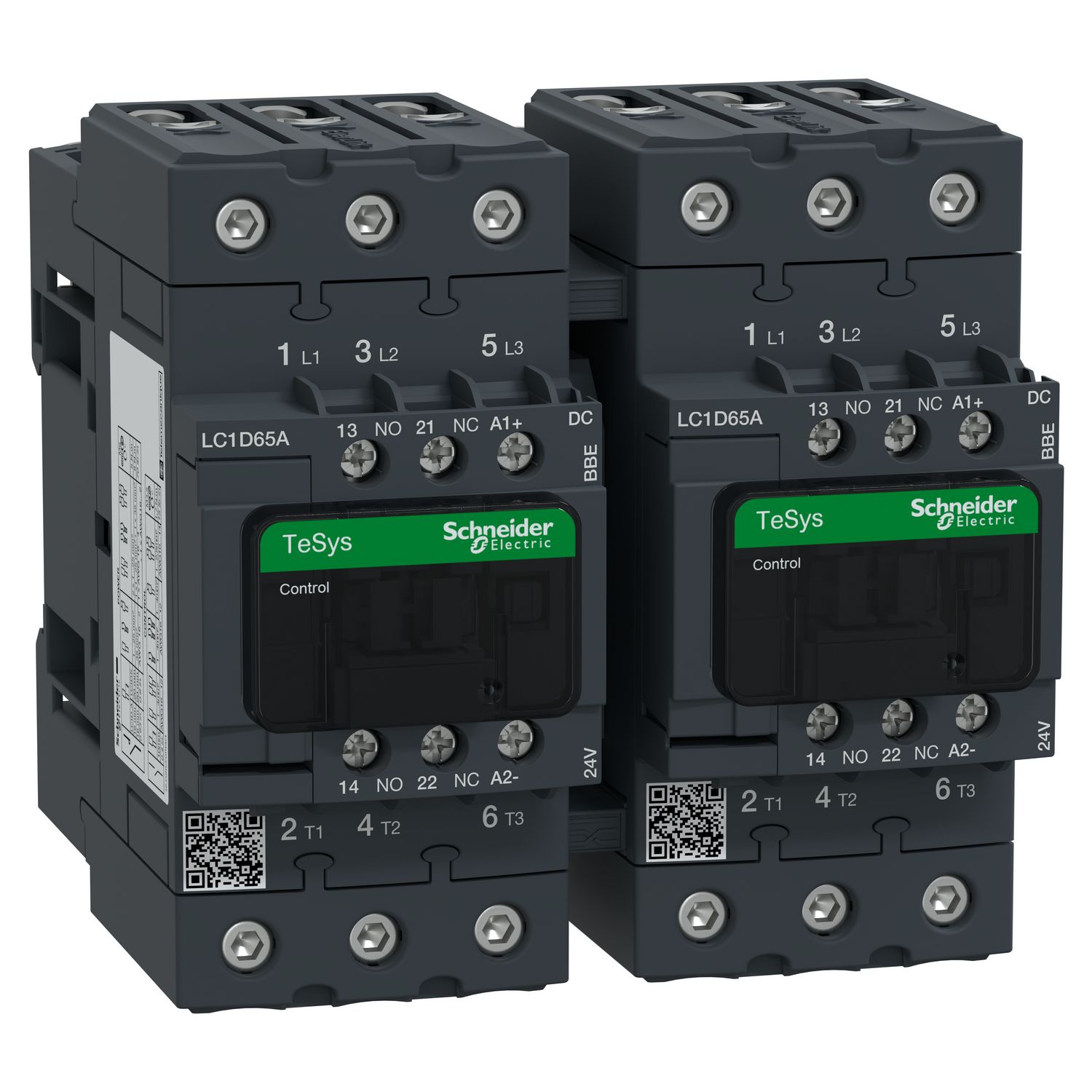

Picture of TeSys; TeSys Deca, reversing contactor,3P(3NO),<=440V,65A AC-3,24V DC coil
SKU:

LC2D65ABBE

TeSys; TeSys Deca, reversing contactor,3P(3NO),<=440V,65A AC-3,24V DC coil

Old price: $2,968.90 INC GST
$1,870.41 INC GST
Available for Shipping : 20-Jan-2026
Product Selector
TeSys; TeSys Deca, reversing contactor,3P(3NO),<=440V,65A AC-3,24V DC coil
  • Ultra low consumption coil for maximized energy efficiency to meet sustainability needs
  • Designed to meet the requirements of industrial and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 20-Jan-2026
Environmental Disclosure
Instruction sheet
Declaration of conformity
Brochure
Circularity Profile
Product Page Link
Product Data Sheet
TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 65A/590V AC-3 (30kW@400V). It provides low consumption 24V DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Electrical durability 0.5 Mcycles 80 A AC-1 at Ue <= 440 V, 1.8 Mcycles 57 A AC-3 at Ue <= 440 V
Device presentation preassembled with reversing power busbar
Connections - terminals power circuit: EverLink BTR screw connectors 2 cable(s) 1-25 mm²solid, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm²solid, power circuit: EverLink BTR screw connectors 2 cable(s) 1-25 mm²flexible with cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm²flexible with cable end, power circuit: EverLink BTR screw connectors 2 cable(s) 1-25 mm²flexible without cable end, power circuit: EverLink BTR screw connectors 1 cable(s) 1-35 mm²flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
Associated fuse rating 125 A gG at <= 690 V coordination type 2 for power circuit, 125 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Standards IEC 60335-1, CSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1
Control circuit type DC DC low consumption
Protective cover with
[Ui] rated insulation voltage signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 690 V conforming to IEC 60947-4-1
Overvoltage category III
[Ie] rated operational current 65 A (at <60 °C) at <= 440 V AC-3 for power circuit, 80 A (at <60 °C) at <= 440 V AC-1 for power circuit
Utilisation category AC-1, AC-3
Auxiliary contact composition 1 NO + 1 NC
Average impedance 1.5 mOhm - Ith 80 A 50 Hz for power circuit
Power dissipation per pole 6.3 W AC-3, 9.6 W AC-1
[Uc] control circuit voltage 24 V DC
[Icw] rated short-time withstand current 260 A 40 °C - 1 min for power circuit, 110 A 40 °C - 10 min for power circuit, 900 A 40 °C - 1 s for power circuit, 520 A 40 °C - 10 s for power circuit, 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit
Device short name LC2D
Mechanical durability 6 Mcycles
Tightening torque power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm, power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Operating time 20...80 ms opening (date code >= 18011), 20...120 ms opening (date code >= 17221), 55...65 ms closing
Range TeSys Deca, TeSys
Irms rated making capacity 1000 A at 440 V for power circuit conforming to IEC 60947, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity 1000 A at 440 V for power circuit conforming to IEC 60947
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
[Ith] conventional free air thermal current 80 A (at 60 °C) for power circuit, 10 A (at 60 °C) for signalling circuit
Range of product TeSys Deca
Interlocking type mechanical
Motor power kW 37 kW at 660...690 V AC 50 Hz, 37 kW at 500 V AC 50 Hz, 37 kW at 440 V AC 50 Hz, 37 kW at 415 V AC 50 Hz, 30 kW at 380...400 V AC 50 Hz, 18.5 kW at 220...230 V AC 50 Hz
Motor power hp 50 hp at 575/600 V AC 60 Hz for 3 phases motors, 40 hp at 460/480 V AC 60 Hz for 3 phases motors, 20 hp at 230/240 V AC 60 Hz for 3 phases motors, 20 hp at 200/208 V AC 60 Hz for 3 phases motors, 10 hp at 230/240 V AC 60 Hz for 1 phase motors, 5 hp at 115 V AC 60 Hz for 1 phase motors
Poles description 3P
Maximum operating rate 3600 cyc/h 60 °C
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Product name TeSys Deca, Tesys Deca green
Product certifications UKCA, LROS (Lloyds register of shipping), DNV-GL, KC, UL, EAC, CSA, CCC
Product or component type reversing contactor
Contactor application resistive load, motor control
Mounting support plate, rail
[Ue] rated operational voltage power circuit: 690 V AC 25...400 Hz
Complementary
Compatibility code LC2D
Signalling circuit frequency 25...400 Hz
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Coil technology built-in bidirectional peak limiting
Minimum switching current 5 mA for signalling circuit
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Heat dissipation 0.5-0.5 W
Minimum switching voltage 17 V for signalling circuit
Control circuit voltage limits 1...1.2 Uc (60-70 °C):operational DC, 0.8...1.2 Uc (-40-60 °C):operational DC, <= 0.1 Uc (-40-70 °C):drop-out DC
Inrush power in W 11-11 W at 20 °C
Insulation resistance > 10 MOhm for signalling circuit
Hold-in power consumption in W 0.5-0.5 W at 20 °C
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Ambient air temperature for storage -60-80 °C
Climatic withstand conforming to IEC 60947-1 Annex Q category D,  conforming to IACS E10
Height 122 mm
Ambient air temperature for operation 60-70 °C with derating, -40-60 °C
Operating altitude 0...3000 m
Net weight 2.174 kg
Colour green (SE GREEN 2), grey (SE GREY 6)
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Pollution degree 3
Mechanical robustness shocks contactor closed: 15 Gn for 11 ms, shocks contactor open: 10 Gn for 11 ms, vibrations contactor closed: 4 Gn, 5...300 Hz, vibrations contactor open: 2 Gn, 5...300 Hz
Depth 120 mm
Width 119 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.4 cm
Package 1 Width 16.2 cm
Package 1 Length 19.8 cm
Package 1 Weight 2.361 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 9.959 kg
