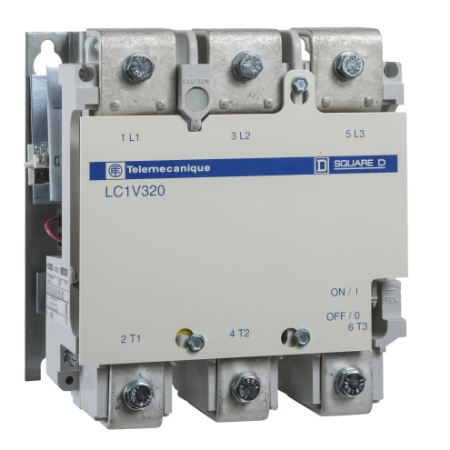

Picture of Contactor, vacuum contactor LC1-V, 3P, 320A, AC-3, 220 to 240VAC coil
SKU:

LC1V320P7

Contactor, vacuum contactor LC1-V, 3P, 320A, AC-3, 220 to 240VAC coil

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Contactor, vacuum contactor LC1-V, 3P, 320A, AC-3, 220 to 240VAC coil
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Coil type standard
Device short name LC1V
Poles description 3P
Utilisation category AC-1, AC-4, AC-3
Pole contact composition 3 NO
Range TeSys
Product name TeSys V
Product or component type vacuum contactor
Contactor application motor control, resistive load
Range of product TeSys V
Control circuit type AC
Complementary
[Ui] rated insulation voltage control circuit: 690 V, earth circuit: 2000 V, power circuit: 1500 V
Motor power kW 90 kW at 230 V AC 50/60 Hz (AC-3), 400 kW at 1000 V AC 50/60 Hz (AC-3), 280 kW at 690 V AC 50/60 Hz (AC-3), 220 kW at 525 V AC 50/60 Hz (AC-3), 160 kW at 400 V AC 50/60 Hz (AC-3)
Depth 159 mm
Width 201 mm
Operating time 95...115 ms on opening, 24...32 ms on closing
Hold-in power consumption in VA 20-20 VA
Compatibility code LC1V
Mechanical durability 2500000 cycles
Tightening torque power circuit: 39 N.m - on connector - cable 185-185 mm² hexagonal screw head
Maximum operating rate 1200 cyc/h
[Ie] rated operational current 270 A AC AC-4 for power circuit, 320 A (at <55 °C) AC AC-3 for power circuit, 320 A (at <40 °C) AC AC-1 for power circuit
Coil technology without built-in bidirectional peak limiting diode suppressor
Connections - terminals power circuit: connector 1 x 185-185 mm², control circuit: connector 1 x 2.5-2.5 mm²
[Uimp] rated impulse withstand voltage 8 kV
Inrush power in VA 600-600 VA
Net weight 10.5 kg
Associated fuse rating 400 A aM at <= 1000 V for power circuit conforming to IEC 60947, 10 A gG for control circuit
Irms rated making capacity 3800 A at 1500 V AC for power circuit conforming to IEC 60947
Rated breaking capacity 3200 A at 1500 V for power circuit conforming to IEC 60947
Mounting support rail, plate
[Ith] conventional free air thermal current 320 A for power circuit, 10 A for control circuit
Control circuit voltage limits 0.8...1.1 Uc at 50/60 Hz
Auxiliary contact composition 1 NO + 1 NC
Motor power hp 800 hp at 1500 V AC 50/60 Hz conforming to CSA, 500 hp at 1000 V AC 50/60 Hz conforming to CSA, 400 hp at 800 V AC 50/60 Hz conforming to CSA, 300 hp at 600 V AC 50/60 Hz conforming to CSA, 250 hp at 480 V AC 50/60 Hz conforming to CSA, 200 hp at 380 V AC 50/60 Hz conforming to CSA, 125 hp at 240 V AC 50/60 Hz conforming to CSA, 100 hp at 200 V AC 50/60 Hz conforming to CSA
Height 222 mm
[Uc] control circuit voltage 220...240 V AC 50/60 Hz
[Ue] rated operational voltage power circuit: <= 1000 V AC 50/60 Hz
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Operating altitude 3600...4500 m
IP degree of protection IP00 conforming to IEC 60529
Ambient air temperature for storage -40-80 °C
Vibration resistance 2 gn 10-500 Hz
Shock resistance 10 gn contactor opened, 10 gn contactor closed
Standards IEC 60947-4-1, EN 60947-4-1
Ambient air temperature for operation -5-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 31.5 cm
Package 1 Width 33.53 cm
Package 1 Length 40.89 cm
Package 1 Weight 12.47 kg
