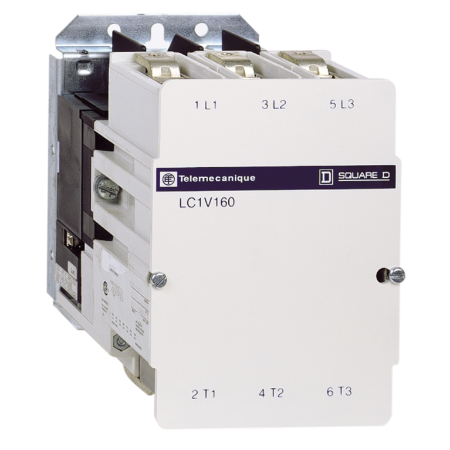

Picture of Contactor, vacuum contactor LC1-V, 3P, 160A, AC-3, 220 to 240VAC coil
SKU:

LC1V160P7

Contactor, vacuum contactor LC1-V, 3P, 160A, AC-3, 220 to 240VAC coil

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Contactor, vacuum contactor LC1-V, 3P, 160A, AC-3, 220 to 240VAC coil
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Coil type standard
Device short name LC1V
Poles description 3P
Utilisation category AC-3, AC-1, AC-4
Pole contact composition 3 NO
Range TeSys
Product name TeSys V
Product or component type vacuum contactor
Contactor application motor control, resistive load
Range of product TeSys V
Control circuit type AC
Complementary
[Ui] rated insulation voltage control circuit: 690 V, earth circuit: 2000 V, power circuit: 1500 V
Motor power kW 75 kW at 400 V AC 50/60 Hz (AC-3), 45 kW at 230 V AC 50/60 Hz (AC-3), 200 kW at 1000 V AC 50/60 Hz (AC-3), 150 kW at 690 V AC 50/60 Hz (AC-3), 110 kW at 525 V AC 50/60 Hz (AC-3)
Depth 151 mm
Width 123 mm
Operating time 95...115 ms on opening, 18...22 ms on closing
Hold-in power consumption in VA 30-30 VA
Compatibility code LC1V
Mechanical durability 5000000 cycles
Tightening torque power circuit: 14 N.m - on connector - cable 70-70 mm² hexagonal screw head
Maximum operating rate 1200 cyc/h
[Ie] rated operational current 130 A AC AC-4 for power circuit, 160 A (at <55 °C) AC AC-3 for power circuit, 160 A (at <40 °C) AC AC-1 for power circuit
Coil technology without built-in bidirectional peak limiting diode suppressor
Connections - terminals power circuit: bolted connection, control circuit: connector 1 x 2.5-2.5 mm²
[Uimp] rated impulse withstand voltage 8 kV
Inrush power in VA 300-300 VA
Net weight 3.8 kg
Associated fuse rating 160 A aM at <= 1000 V for power circuit conforming to IEC 60947, 10 A gG for control circuit
Irms rated making capacity 1900 A at 1500 V AC for power circuit conforming to IEC 60947
Rated breaking capacity 1600 A at 1500 V for power circuit conforming to IEC 60947
Mounting support rail, plate
[Ith] conventional free air thermal current 160 A for power circuit, 10 A for control circuit
Control circuit voltage limits 0.8...1.1 Uc at 50/60 Hz
Auxiliary contact composition 2 NO + 1 NC
Motor power hp 60 hp at 240 V AC 50/60 Hz conforming to CSA, 50 hp at 200 V AC 50/60 Hz conforming to CSA, 400 hp at 1500 V AC 50/60 Hz conforming to CSA, 250 hp at 1000 V AC 50/60 Hz conforming to CSA, 200 hp at 800 V AC 50/60 Hz conforming to CSA, 150 hp at 600 V AC 50/60 Hz conforming to CSA, 125 hp at 480 V AC 50/60 Hz conforming to CSA, 100 hp at 380 V AC 50/60 Hz conforming to CSA
Height 168 mm
[Uc] control circuit voltage 220...240 V AC 50/60 Hz
[Ue] rated operational voltage power circuit: <= 1000 V AC 50/60 Hz
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Operating altitude 2500...3600 m
IP degree of protection IP00 conforming to IEC 60529
Ambient air temperature for storage -40-80 °C
Vibration resistance 2 gn 10-500 Hz
Shock resistance 10 gn contactor opened, 10 gn contactor closed
Standards IEC 60947-4-1, EN 60947-4-1
Ambient air temperature for operation -5-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 26.92 cm
Package 1 Width 31.24 cm
Package 1 Length 31.5 cm
Package 1 Weight 4.9 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 15.016 kg
Unit Type of Package 3 3
Number of Units in Package 3 12
Package 3 Height 80 cm
Package 3 Width 80 cm
Package 3 Length 60 cm
Package 3 Weight 63.844 kg
