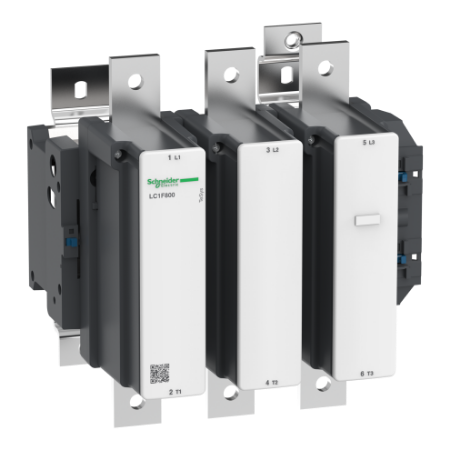

Picture of Contactor,TeSys F,3P (3 NO),AC-3,<= 440 V 800 A,coil 380-415V AC/400V DC
SKU:

LC1F800QW

Contactor,TeSys F,3P (3 NO),AC-3,<= 440 V 800 A,coil 380-415V AC/400V DC

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Contactor,TeSys F,3P (3 NO),AC-3,<= 440 V 800 A,coil 380-415V AC/400V DC
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Brochure
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LC1F
Poles description 3P
[Ie] rated operational current 800 A (at <55 °C) at <= 440 V AC AC-3, 1000 A (at <40 °C) at <= 440 V AC AC-1
Utilisation category AC-4, AC-1, AC-3
Range TeSys
Product or component type contactor
Contactor application motor control, resistive load
[Ue] rated operational voltage <= 460 V DC, <= 1000 V AC 50/60 Hz
Range of product TeSys F
[Uc] control circuit voltage 380...415 V AC 40...400 Hz, 400 V DC
Complementary
Heat dissipation 12-12 W
[Icw] rated short-time withstand current 1700 A 40 °C - 10 min, 2600 A 40 °C - 3 min, 3600 A 40 °C - 1 min, 4600 A 40 °C - 30 s, 5500 A 40 °C - 10 s
[Ui] rated insulation voltage 1500 V conforming to VDE 0110 group C, 1000 V conforming to IEC 60947-4-1
Motor power kW 250 kW at 220...230 V AC 50/60 Hz (AC-3), 450 kW at 440 V AC 50/60 Hz (AC-3), 450 kW at 415 V AC 50/60 Hz (AC-3), 450 kW at 380...400 V AC 50/60 Hz (AC-3), 110 kW at 400 V AC 50/60 Hz (AC-4), 475 kW at 660...690 V AC 50/60 Hz (AC-3), 450 kW at 500 V AC 50/60 Hz (AC-3), 450 kW at 1000 V AC 50/60 Hz (AC-3)
Overvoltage category III
Compatibility code LC1F
Inrush power in W 1900-1900 W (at 20 °C)
Tightening torque power circuit: 58 N.m, control circuit: 1.2 N.m
Mechanical durability 5 Mcycles
Maximum operating rate 600 cyc/h 55 °C
Operating time 60...80 ms closing, 40...50 ms opening
Motor starter type direct on-line contactor
Pole contact composition 3 NO
Connections - terminals power circuit: bolted connection, power circuit: bar 2 cable(s) - busbar cross section: 60 x 5 mm, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
[Uimp] rated impulse withstand voltage 8 kV
Power range 250-500 kW at 480-500 V 3 phases, 110-220 kW at 200-240 V 3 phases, 250-500 kW at 380-440 V 3 phases, 250-500 kW at 200-240 V 3 phases
Associated fuse rating 800 A aM at <= 440 V, 1000 A gG at <= 440 V
Rated breaking capacity 6400 A conforming to IEC 60947-4-1
Hold-in power consumption in W 12-12 W at 20 °C
Contactor coil voltage 415 V AC standard, 380 V AC standard, 400 V AC standard, 400 V DC standard
Control circuit type AC at 40...400 Hz, DC standard
Mounting support plate
Standards EN 60947-1, IEC 60947-1, EN 60947-4-1, IEC 60947-4-1, JIS C8201-4-1
Control circuit voltage limits drop-out: 0.3...0.5 Uc (at 55 °C), operational: 0.85...1.1 Uc (at 55 °C)
[Ith] conventional free air thermal current 1000 A (at 40 °C)
Average impedance 0.12 mOhm - Ith 1000 A 50 Hz
Power dissipation per pole 77 W AC-3, 120 W AC-1
Product certifications UKCA, CCC, ABS, CB, RMRoS, CSA, UL
Environment
Permissible ambient air temperature around the device -5-55 °C
Depth 255 mm
Width 309 mm
Operating altitude 3000 m without derating
IP degree of protection IP20 front face with shrouds conforming to VDE 0106, IP20 front face with shrouds conforming to IEC 60529
Protective treatment TH
Ambient air temperature for storage -60-80 °C
Net weight 18.75 kg
Ambient air temperature for operation -5-55 °C
Height 304 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 44.0 cm
Package 1 Width 33.0 cm
Package 1 Length 33.0 cm
Package 1 Weight 18.988 kg
