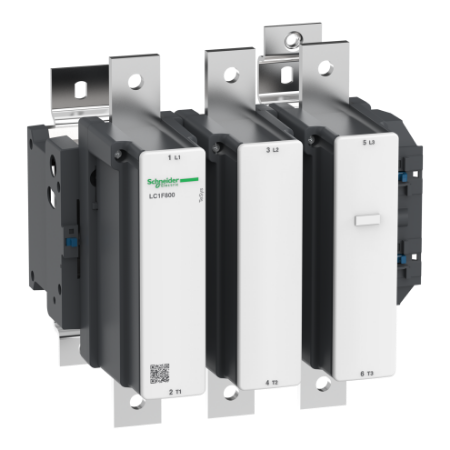

Contactor,TeSys F,3P (3 NO),AC-3,<= 440 V 800 A,coil 220-240V AC/220-230V DC

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Contactor,TeSys F,3P (3 NO),AC-3,<= 440 V 800 A,coil 220-240V AC/220-230V DC
  • Reliability and durability: high operating rate under high temperature
  • Easy installation and maintenance: special drawer-mounted coil & multi options of add-on blocks
  • Wide application fields: Multi standards certified
  • Green Premium compliant, made of environmentally friendly materials
  • Reduced machine downtime and maintenance
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Catalogue
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
TeSys F contactor, 3 poles (3NO), 800A/1000V AC-3, for motor applications up to 450kW@400V. It provides a low sealed consumption 220/240V DC coil, bolt terminals for bars or cables with lugs. For high operating rates until 600 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1F
Range TeSys
Range of product TeSys F
Poles description 3P
[Ie] rated operational current 800 A (at <55 °C) at <= 440 V AC AC-3, 1000 A (at <40 °C) at <= 440 V AC AC-1
Utilisation category AC-3, AC-1, AC-4
Product or component type contactor
Contactor application resistive load, motor control
[Ue] rated operational voltage <= 460 V DC, <= 1000 V AC 50/60 Hz
[Uc] control circuit voltage 220...240 V AC 40...400 Hz, 220...230 V DC
Complementary
Heat dissipation 12-12 W
[Icw] rated short-time withstand current 1700 A 40 °C - 10 min, 2600 A 40 °C - 3 min, 3600 A 40 °C - 1 min, 4600 A 40 °C - 30 s, 5500 A 40 °C - 10 s
Compatibility code LC1F
Tightening torque power circuit: 58 N.m, control circuit: 1.2 N.m
Operating time 60...80 ms closing, 40...50 ms opening
Motor starter type direct on-line contactor
Connections - terminals power circuit: bolted connection, power circuit: bar 2 cable(s) - busbar cross section: 60 x 5 mm, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
Associated fuse rating 800 A aM at <= 440 V, 1000 A gG at <= 440 V
Rated breaking capacity 6400 A conforming to IEC 60947-4-1
Control circuit type AC at 40...400 Hz, DC standard
Control circuit voltage limits drop-out: 0.3...0.5 Uc (at 55 °C), operational: 0.85...1.1 Uc (at 55 °C)
[Ith] conventional free air thermal current 1000 A (at 40 °C)
[Ui] rated insulation voltage 1500 V conforming to VDE 0110 group C, 1000 V conforming to IEC 60947-4-1
Motor power kW 250 kW at 220...230 V AC 50/60 Hz (AC-3), 450 kW at 440 V AC 50/60 Hz (AC-3), 450 kW at 415 V AC 50/60 Hz (AC-3), 450 kW at 380...400 V AC 50/60 Hz (AC-3), 110 kW at 400 V AC 50/60 Hz (AC-4), 475 kW at 660...690 V AC 50/60 Hz (AC-3), 450 kW at 500 V AC 50/60 Hz (AC-3), 450 kW at 1000 V AC 50/60 Hz (AC-3)
Overvoltage category III
Inrush power in W 1900-1900 W (at 20 °C)
Mechanical durability 5 Mcycles
Maximum operating rate 600 cyc/h 55 °C
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 8 kV
Power range 250-500 kW at 480-500 V 3 phases, 110-220 kW at 200-240 V 3 phases, 250-500 kW at 380-440 V 3 phases, 250-500 kW at 200-240 V 3 phases
Hold-in power consumption in W 12-12 W at 20 °C
Contactor coil voltage 240 V AC standard, 230 V AC standard, 220 V AC standard, 230 V DC standard, 220 V DC standard
Mounting support plate
Standards IEC 60947-4-1, EN 60947-1, EN 60947-4-1, JIS C8201-4-1, IEC 60947-1
Average impedance 0.12 mOhm - Ith 1000 A 50 Hz
Power dissipation per pole 77 W AC-3, 120 W AC-1
Product certifications UKCA, CB, RMRoS, CSA, CCC, UL, ABS
Environment
IP degree of protection IP20 front face with shrouds conforming to VDE 0106, IP20 front face with shrouds conforming to IEC 60529
Protective treatment TH
Ambient air temperature for storage -60-80 °C
Ambient air temperature for operation -5-55 °C
Height 304 mm
Permissible ambient air temperature around the device -5-55 °C
Depth 255 mm
Width 309 mm
Operating altitude 3000 m without derating
Net weight 18.75 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 33.500 cm
Package 1 Width 33.000 cm
Package 1 Length 44.000 cm
Package 1 Weight 18.455 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 82.320 kg
