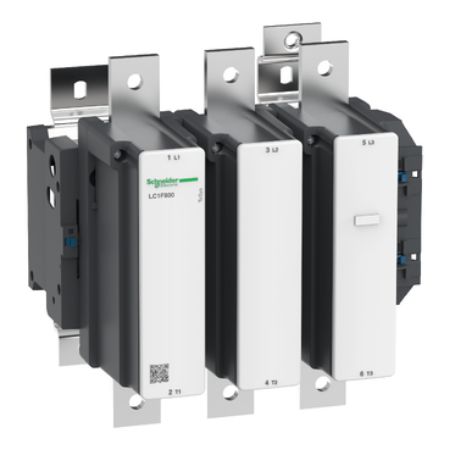

Picture of Contactor body,TeSys F,3P(3NO), AC-3, <=440V 800 A without coil
SKU:

LC1F800

Contactor body,TeSys F,3P(3NO), AC-3, <=440V 800 A without coil

Old price: $22,264.00 INC GST
$14,026.32 INC GST
Available for Shipping : 18-Mar-2026
Contactor body,TeSys F,3P(3NO), AC-3, <=440V 800 A without coil
  • Later selection with no coil
  • High durability: 600 cycles/hour for operating rate
  • High reliability: environments tolerance up to 55°C
  • Easy installation and maintenance thanks to its drawer-mounted coil and a large choice of add-on blocks
  • Various fields of application with multiple standards certifications
  • Green Premium product
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 18-Mar-2026
Declaration of conformity
Brochure
Catalog
Environmental Disclosure
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
TeSys F contactor, 3 poles (3NO), 800A/1000V AC-3, for motor applications up to 450kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 600 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1F
[Ie] rated operational current 800 A (at <55 °C) at <= 440 V AC AC-3, 1000 A (at <40 °C) at <= 440 V AC AC-1
Range TeSys
Range of product TeSys F
Motor power kW 250 kW at 220...240 V AC 50/60 Hz (AC-3), 450 kW at 440 V AC 50/60 Hz (AC-3), 450 kW at 415 V AC 50/60 Hz (AC-3), 450 kW at 380...400 V AC 50/60 Hz (AC-3), 110 kW at 400 V AC 50/60 Hz (AC-4), 475 kW at 660...690 V AC 50/60 Hz (AC-3), 450 kW at 500 V AC 50/60 Hz (AC-3), 450 kW at 1000 V AC 50/60 Hz (AC-3)
Poles description 3P
Utilisation category AC-4, AC-1, AC-3
Pole contact composition 3 NO
Product name TeSys F
Product or component type contactor
Contactor application resistive load, motor control
[Ue] rated operational voltage <= 460 V DC, <= 1000 V AC 50/60 Hz
Complementary
Heat dissipation 2.2-5.5 W, 25-25 W
[Icw] rated short-time withstand current 1700 A 40 °C - 10 min, 3600 A 40 °C - 1 min, 4600 A 40 °C - 30 s, 5500 A 40 °C - 10 s, 2600 A 40 °C - 3 min
Compatibility code LC1F
Mechanical durability 5 Mcycles
Tightening torque control circuit: 1.2 N.m, power circuit: 58 N.m
Operating time 6...54 ms opening for with LXE coil, 40...80 ms closing for with LXE coil, 40...50 ms opening for with LX4 coil, 60...80 ms closing for with LX4 coil, 160...180 ms opening for with LX1/LX9 coil, 60...80 ms closing for with LX1/LX9 coil
Connections - terminals control circuit: screw clamp terminals 2 cable(s) 1-4 mm², control circuit: screw clamp terminals 1 cable(s) 1-4 mm², control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, power circuit: bolted connection, power circuit: bar 2 cable(s) - busbar cross section: 60 x 5 mm
Associated fuse rating 800 A aM at <= 440 V, 1000 A gG at <= 440 V
Irms rated making capacity 8000 A AC conforming to IEC 60947-4-1
Rated breaking capacity 6400 A conforming to IEC 60947-4-1
Control circuit voltage limits drop-out: 0...45 V DC with LXE coil, operational: 85...418 V DC with LXE coil, drop-out: 0...60 V AC 50/60 Hz with LXE coil, operational: 85...275 V AC 50/60 Hz with LXE coil, drop-out: 0.3...0.5 Uc DC with LX4 coil, operational: 0.85...1.1 Uc DC with LX4 coil, drop-out: 0.3...0.5 Uc AC 40...400 Hz with LX1/LX9 coil, operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil
[Ith] conventional free air thermal current 1000 A (at 40 °C)
[Ui] rated insulation voltage 1500 V conforming to VDE 0110 group C, 1000 V conforming to IEC 60947-4-1
Overvoltage category III
Hold-in power consumption in VA 4.0-5.5 VA cos phi 0.5 (at 20 °C)with LXE coil, 7-10 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 12-12 VA (at 20 °C)with LX4 coil, 12-12 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil
Maximum operating rate 600 cyc/h 55 °C
Inrush power in VA 500-680 VA cos phi 0.5 (at 20 °C)with LXE coil, 460-730 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 1900-1900 VA (at 20 °C)with LX4 coil, 1700-1700 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil
[Uimp] rated impulse withstand voltage 8 kV
Mounting support plate
[Uc] control circuit voltage 100...380 V DC with LXE coil, 100...250 V AC 50/60 Hz with LXE coil, 110...400 V DC with LX4 coil, 110...400 V AC 40...400 Hz with LX1/LX9 coil
Standards EN 60947-4-1, IEC 60947-4-1, EN 60947-1, JIS C8201-4-1, IEC 60947-1
Average impedance 0.12 mOhm - Ith 1000 A 50 Hz
Power dissipation per pole 77 W AC-3, 120 W AC-1
Product certifications UKCA, UL, CCC, ABS, LROS (Lloyds register of shipping), CSA, CB
Environment
IP degree of protection IP20 front face with shrouds conforming to VDE 0106, IP20 front face with shrouds conforming to IEC 60529
Protective treatment TH
Ambient air temperature for storage -60-80 °C
Ambient air temperature for operation -5-55 °C
Height 304 mm
Mechanical robustness shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms), shocks contactor open: 6 Gn for 1/2 sine wave (11 ms), vibrations contactor closed: 4 Gn, 5...300 Hz, vibrations contactor open: 2 Gn, 5...300 Hz
Permissible ambient air temperature around the device -5-55 °C
Depth 255 mm
Width 309 mm
Operating altitude 3000 m without derating
Net weight 18.75 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 33.500 cm
Package 1 Width 33.500 cm
Package 1 Length 44.500 cm
Package 1 Weight 17.195 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 77.280 kg

Related products

Picture of TeSys F - contactor coil - LX4F8 - 110...120 V DC

TeSys F - contactor coil - LX4F8 - 110...120 V DC

LX4F8FW
$1,250.17 INC GST $1,984.40 INC GST
View Detail
Picture of TeSys F - contactor coil - LX4F8 - 220...240 V DC

TeSys F - contactor coil - LX4F8 - 220...240 V DC

LX4F8MW
$1,250.17 INC GST $1,984.40 INC GST
View Detail

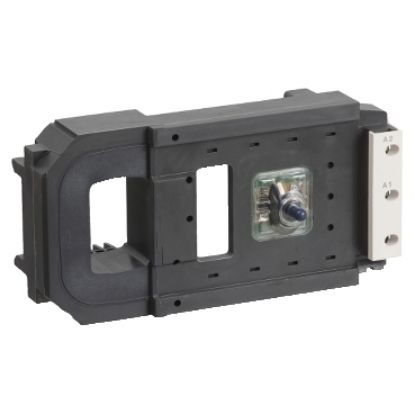

Picture of TeSys F - contactor coil - LX4F8 - 380...400V DC
