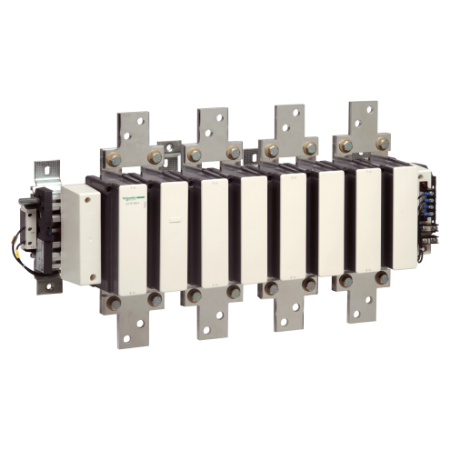

Picture of Contactor body, TeSys F, 4P(4NO), AC-1, <=440V 1600A without coil
SKU:

LC1F7804

Contactor body, TeSys F, 4P(4NO), AC-1, <=440V 1600A without coil

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Contactor body, TeSys F, 4P(4NO), AC-1, <=440V 1600A without coil
  • Later selection with no coil
  • High durability: 600 cycles/hour for operating rate
  • High reliability: environments tolerance up to 55°C
  • Easy installation and maintenance thanks to its drawer-mounted coil and a large choice of add-on blocks
  • Various fields of application with multiple standards certifications
  • Green Premium product
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LC1F
Poles description 4P
Utilisation category AC-1
[Ie] rated operational current 1600 A (at <40 °C) at <= 440 V AC AC-1
Pole contact composition 4 NO
Range TeSys
Product name TeSys F
Product or component type contactor
Contactor application resistive load
Range of product TeSys F
[Ue] rated operational voltage <= 460 V DC, <= 1000 V AC 50/60 Hz
Complementary
Heat dissipation 22-22 W
[Icw] rated short-time withstand current 2200 A 40 °C - 10 min, 4600 A 40 °C - 1 min, 5600 A 40 °C - 30 s, 6250 A 40 °C - 10 s, 3000 A 40 °C - 3 min
[Ui] rated insulation voltage 1500 V conforming to VDE 0110 group C, 1000 V conforming to IEC 60947-4-1
Overvoltage category III
Hold-in power consumption in VA 42-52 VA (at 20 °C)with LX4 coil, 44-55 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil
Compatibility code LC1F
Mechanical durability 5 Mcycles
Tightening torque control circuit: 1.2 N.m, power circuit: 58 N.m
Operating time 100...130 ms opening for with LX4 coil, 70...80 ms closing for with LX4 coil, 130...230 ms opening for with LX1/LX9 coil, 40...80 ms closing for with LX1/LX9 coil
Maximum operating rate 600 cyc/h 55 °C
Inrush power in VA 1960-2420 VA (at 20 °C)with LX4 coil, 1900-2300 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil
Connections - terminals control circuit: screw clamp terminals 2 cable(s) 1-4 mm², control circuit: screw clamp terminals 1 cable(s) 1-4 mm², control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, power circuit: bolted connection, power circuit: bar 2 cable(s) - busbar cross section: 100 x 5 mm
[Uimp] rated impulse withstand voltage 8 kV
Associated fuse rating 1600 A gG at <= 440 V, 800 A aM at <= 440 V
Irms rated making capacity 7800 A AC conforming to IEC 60947-4-1
Rated breaking capacity 6240 A conforming to IEC 60947-4-1
Mounting support plate
[Uc] control circuit voltage 48...440 V DC with LX4 coil, 110...500 V AC 40...400 Hz with LX1/LX9 coil
Standards EN 60947-4-1, JIS C8201-4-1, EN 60947-1, IEC 60947-4-1, IEC 60947-1
Control circuit voltage limits drop-out: 0.2...0.4 Uc DC with LX4 coil, operational: 0.85...1.1 Uc DC with LX4 coil, drop-out: 0.2...0.4 Uc AC 40...400 Hz with LX1/LX9 coil, operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil
[Ith] conventional free air thermal current 1600 A (at 40 °C)
Average impedance 0.1 mOhm - Ith 1600 A 50 Hz
Power dissipation per pole 250 W AC-1
Product certifications UKCA, ABS, CB, BV, CCC, DNV, RINA, LROS (Lloyds register of shipping), UL
Environment
Permissible ambient air temperature around the device -40-70 °C
Depth 255 mm
Width 862 mm
Operating altitude 3000 m without derating
IP degree of protection IP20 front face with shrouds conforming to VDE 0106, IP20 front face with shrouds conforming to IEC 60529
Protective treatment TH
Ambient air temperature for storage -60-80 °C
Net weight 48 kg
Ambient air temperature for operation -5-55 °C
Height 434 mm
Mechanical robustness shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms), shocks contactor open: 5 Gn for 1/2 sine wave (11 ms), vibrations contactor closed: 5.5 Gn, 5...300 Hz, vibrations contactor open: 2.5 Gn, 5...300 Hz
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 41.0 cm
Package 1 Width 115.0 cm
Package 1 Length 44.0 cm
Package 1 Weight 47.5 kg
Unit Type of Package 2 2
Number of Units in Package 2 2
Package 2 Height 85.0 cm
Package 2 Width 120.0 cm
Package 2 Length 80.0 cm
Package 2 Weight 142.0 kg
