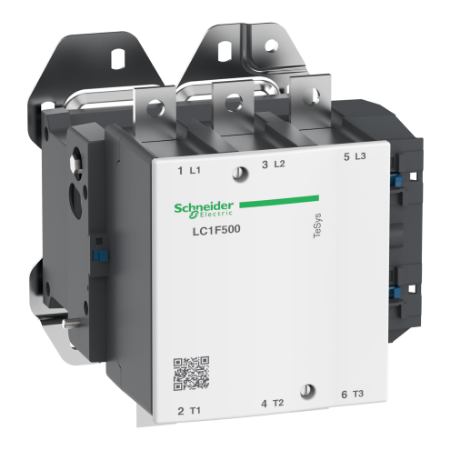

Picture of TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 500 A - coil 220 V AC
SKU:

LC1F500M7

TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 500 A - coil 220 V AC

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 500 A - coil 220 V AC
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
Instruction sheet
Declaration of conformity
Catalogue
Product Page Link
Product Data Sheet
TeSys F contactor, 3 poles (3NO), 500A/1000V AC-3, for motor applications up to 250kW@400V. It provides a low sealed consumption 220V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1F
Poles description 3P
[Ie] rated operational current 500 A (at <55 °C) at <= 440 V AC AC-3, 700 A (at <40 °C) at <= 440 V AC AC-1
Utilisation category AC-3, AC-4, AC-1
Range TeSys
Product or component type contactor
Contactor application resistive load, motor control
[Ue] rated operational voltage <= 460 V DC, <= 1000 V AC 50/60 Hz
Range of product TeSys F
[Uc] control circuit voltage 220 V AC 40...400 Hz
Complementary
Heat dissipation 18-18 W
[Icw] rated short-time withstand current 1200 A 40 °C - 10 min, 1500 A 40 °C - 3 min, 2400 A 40 °C - 1 min, 3200 A 40 °C - 30 s, 4200 A 40 °C - 10 s
[Ui] rated insulation voltage 1500 V conforming to VDE 0110 group C, 1000 V conforming to IEC 60947-4-1
Motor power kW 80 kW at 400 V AC 50/60 Hz (AC-4), 147 kW at 220...230 V AC 50/60 Hz (AC-3), 335 kW at 1000 V AC 50/60 Hz (AC-3), 335 kW at 660...690 V AC 50/60 Hz (AC-3), 355 kW at 500 V AC 50/60 Hz (AC-3), 295 kW at 440 V AC 50/60 Hz (AC-3), 280 kW at 415 V AC 50/60 Hz (AC-3), 250 kW at 380...400 V AC 50/60 Hz (AC-3)
Overvoltage category III
Hold-in power consumption in VA 18-18 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
Compatibility code LC1F
Tightening torque power circuit: 35 N.m, control circuit: 1.2 N.m
Mechanical durability 10 Mcycles
Maximum operating rate 2400 cyc/h 55 °C
Operating time 100...170 ms opening, 40...65 ms closing
Motor starter type direct on-line contactor
Pole contact composition 3 NO
Connections - terminals power circuit: bolted connection, power circuit: lugs-ring terminals 2 cable(s) 240-240 mm², power circuit: bar 2 cable(s) - busbar cross section: 40 x 5 mm, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
Inrush power in VA 1100-1100 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
[Uimp] rated impulse withstand voltage 8 kV
Power range 250-500 kW at 480-500 V 3 phases, 110-220 kW at 200-240 V 3 phases, 110-220 kW at 380-440 V 3 phases, 250-500 kW at 380-440 V 3 phases
Associated fuse rating 800 A gG at <= 440 V, 500 A aM at <= 440 V
Rated breaking capacity 4000 A conforming to IEC 60947-4-1
Contactor coil voltage 220 V AC standard
Control circuit type AC at 40...400 Hz
Mounting support plate
Standards IEC 60947-4-1, JIS C8201-4-1, EN 60947-1, IEC 60947-1, EN 60947-4-1
Control circuit voltage limits drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C), operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)
[Ith] conventional free air thermal current 700 A (at 40 °C)
Average impedance 0.18 mOhm - Ith 700 A 50 Hz
Power dissipation per pole 45 W AC-3, 88 W AC-1
Product certifications UKCA, DNV, BV, RINA, UL, LROS (Lloyds register of shipping), ABS, RMRoS, CB, CSA
Environment
Permissible ambient air temperature around the device -40-70 °C
Depth 232 mm
Width 233 mm
Operating altitude 3000 m without derating
IP degree of protection IP20 front face with shrouds conforming to VDE 0106, IP20 front face with shrouds conforming to IEC 60529
Protective treatment TH
Ambient air temperature for storage -60-80 °C
Net weight 11.35 kg
Ambient air temperature for operation -5-55 °C
Height 238 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 27.5 cm
Package 1 Width 30.0 cm
Package 1 Length 30.0 cm
Package 1 Weight 11.612 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 80.0 cm
Package 2 Width 80.0 cm
Package 2 Length 60.0 cm
Package 2 Weight 101.412 kg
