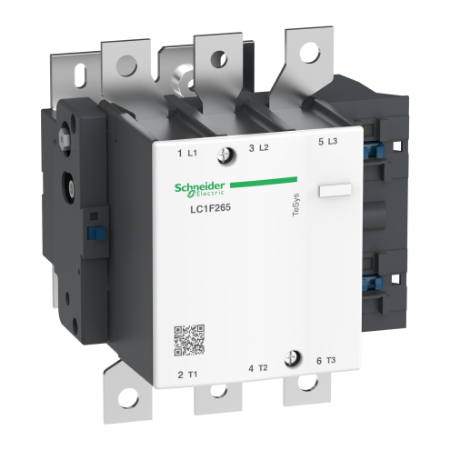

Picture of TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 265 A - coil 440 V AC
SKU:

LC1F265R7

TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 265 A - coil 440 V AC

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 265 A - coil 440 V AC
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Brochure
Product environmental
Declaration of conformity
Instruction sheet
End of life manual
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LC1F
Poles description 3P
[Ie] rated operational current 265 A (at <55 °C) at <= 440 V AC AC-3, 350 A (at <40 °C) at <= 440 V AC AC-1
Utilisation category AC-4, AC-1, AC-3
Range TeSys
Product or component type contactor
Contactor application resistive load, motor control
[Ue] rated operational voltage <= 460 V DC, <= 690 V AC-4, <= 690 V AC-3, <= 1000 V AC-1
Range of product TeSys F
[Uc] control circuit voltage 440 V AC 40...400 Hz
Complementary
Heat dissipation 8-8 W
[Icw] rated short-time withstand current 480 A 40 °C - 10 min, 620 A 40 °C - 3 min, 950 A 40 °C - 1 min, 1230 A 40 °C - 30 s, 2200 A 40 °C - 10 s
[Ui] rated insulation voltage 1500 V conforming to VDE 0110 group C, 1000 V conforming to IEC 60947-4-1
Motor power kW 51 kW at 400 V AC 50/60 Hz (AC-4), 75 kW at 220...230 V AC 50/60 Hz (AC-3), 147 kW at 1000 V AC 50/60 Hz (AC-3), 160 kW at 660...690 V AC 50/60 Hz (AC-3), 160 kW at 500 V AC 50/60 Hz (AC-3), 140 kW at 440 V AC 50/60 Hz (AC-3), 140 kW at 415 V AC 50/60 Hz (AC-3), 132 kW at 380...400 V AC 50/60 Hz (AC-3)
Overvoltage category III
Hold-in power consumption in VA 10-10 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
Compatibility code LC1F
Tightening torque power circuit: 35 N.m, control circuit: 1.2 N.m
Mechanical durability 10 Mcycles
Maximum operating rate 2400 cyc/h 55 °C
Operating time 100...170 ms opening, 40...65 ms closing
Pole contact composition 3 NO
Connections - terminals power circuit: bolted connection, power circuit: connector 1 cable(s) 240-240 mm², power circuit: lugs-ring terminals 1 cable(s) 240-240 mm², power circuit: bar 2 cable(s) - busbar cross section: 32 x 4 mm, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
Inrush power in VA 650-650 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
[Uimp] rated impulse withstand voltage 8 kV
Associated fuse rating 400 A gG at <= 440 V, 315 A aM at <= 440 V
Rated breaking capacity 2120 A conforming to IEC 60947-4-1
Control circuit type AC at 40...400 Hz
Mounting support plate
Standards JIS C8201-4-1, IEC 60947-1, EN 60947-4-1, EN 60947-1, IEC 60947-4-1
Control circuit voltage limits drop-out: 0.15...0.2 Uc 40...400 Hz (at 55 °C), operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)
[Ith] conventional free air thermal current 350 A (at 40 °C)
Average impedance 0.3 mOhm - Ith 350 A 50 Hz
Power dissipation per pole 21 W AC-3, 37 W AC-1
Product certifications UKCA, RINA, UL, DNV, LROS (Lloyds register of shipping), ABS, CB, BV, CCC, RMRoS
Environment
Permissible ambient air temperature around the device -40-70 °C
Depth 213 mm
Width 201.5 mm
Operating altitude 3000 m without derating
IP degree of protection IP20 front face with shrouds conforming to VDE 0106, IP20 front face with shrouds conforming to IEC 60529
Protective treatment TH
Ambient air temperature for storage -60-80 °C
Net weight 7.44 kg
Ambient air temperature for operation -5-55 °C
Height 203 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 25.5 cm
Package 1 Width 25.0 cm
Package 1 Length 30.0 cm
Package 1 Weight 7.975 kg
