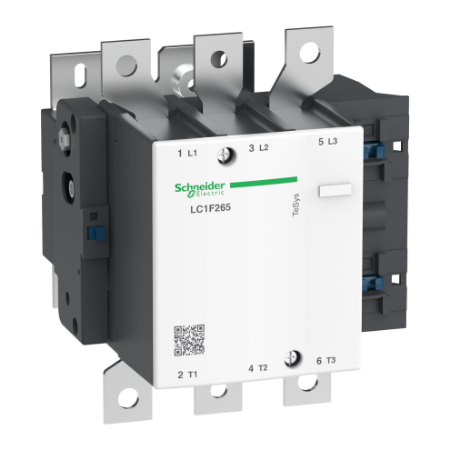

Picture of Contactor body,TeSys F,3P(3NO)-AC-3, <=440V 265A without coil
SKU:

LC1F265

Contactor body,TeSys F,3P(3NO)-AC-3, <=440V 265A without coil

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
TeSys F Contactor Body
  • 3P (3NO)-AC-3, up to 440V, 265A, without coil.
  • No coil selection available later.
  • High durability: 2400 cycles/hour operating rate.
  • High reliability: Tolerant to environments up to 55°C.
  • Easy installation and maintenance with drawer-mounted coil and various add-on blocks.
  • Versatile applications with multiple standard certifications.
  • Green Premium product.
Be the first to review this product
Manufacturer: Schneider Electric
Brochure
End of life manual
Product environmental
Declaration of conformity
Catalogue
Instruction sheet
Product Page Link
Product Data Sheet

The TeSys F contactor (LC1F265) is a 3-pole (3NO) device rated for 265A at 1000V AC-3, suitable for motor applications up to 132kW at 400V. The contactor comes without a coil, allowing you to choose and install the coil later (coil sold separately). It features bolt terminals for connecting bars or cables with lugs.

Designed for high operating rates of up to 2400 cycles per hour and environments with temperatures up to 55°C, this contactor offers excellent reliability and long-lasting performance. Installation and maintenance are easy thanks to a drawer that allows quick coil insertion and a wide range of add-on blocks and accessories (sold separately).

The contactor is certified to multiple international standards (IEC, UL, CSA, CCC, EAC, Marine) and complies with Green Premium standards (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1F
[Ie] rated operational current 265 A (at <55 °C) at <= 440 V AC AC-3, 350 A (at <40 °C) at <= 440 V AC AC-1
Range TeSys
Range of product TeSys F
Motor power kW 51 kW at 400 V AC 50/60 Hz (AC-4), 160 kW at 660...690 V AC 50/60 Hz (AC-3), 75 kW at 220...240 V AC 50/60 Hz (AC-3), 160 kW at 500 V AC 50/60 Hz (AC-3), 147 kW at 1000 V AC 50/60 Hz (AC-3), 140 kW at 440 V AC 50/60 Hz (AC-3), 140 kW at 415 V AC 50/60 Hz (AC-3), 132 kW at 380...400 V AC 50/60 Hz (AC-3)
Poles description 3P
Utilisation category AC-1, AC-4, AC-3
Pole contact composition 3 NO
Product name TeSys F
Product or component type contactor
Contactor application motor control, resistive load
Complementary
Heat dissipation 2.2-2.5 W, 8-8 W
[Icw] rated short-time withstand current 480 A 40 °C - 10 min, 620 A 40 °C - 3 min, 950 A 40 °C - 1 min, 1230 A 40 °C - 30 s, 2200 A 40 °C - 10 s
Compatibility code LC1F
Mechanical durability 10 Mcycles
Tightening torque control circuit: 0.6 N.m, control circuit: 1.2 N.m, power circuit: 35 N.m
Operating time 6...54 ms opening for with LXE coil, 40...80 ms closing for with LXE coil, 40...65 ms opening for with LX4 coil, 40...50 ms closing for with LX4 coil, 100...170 ms opening for with LX1/LX9 coil, 40...65 ms closing for with LX1/LX9 coil
Connections - terminals control circuit: screw clamp terminals 1.0 cable(s) 0.2-2.5 mm²solid without cable end, control circuit: screw clamp terminals 1.0 cable(s) 0.25-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1.0 cable(s) 0.2-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm², control circuit: screw clamp terminals 1 cable(s) 1-4 mm², control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, power circuit: bolted connection, power circuit: connector 1 cable(s) 240-240 mm², power circuit: lugs-ring terminals 1 cable(s) 240-240 mm², power circuit: bar 2 cable(s) - busbar cross section: 32 x 4 mm
Associated fuse rating 400 A gG at <= 440 V, 315 A aM at <= 440 V
Irms rated making capacity 2650 A AC conforming to IEC 60947-4-1
Rated breaking capacity 2120 A conforming to IEC 60947-4-1
Control circuit voltage limits drop-out: 0...45 V DC with LXE coil, operational: 85...418 V DC with LXE coil, drop-out: 0...60 V AC 50/60 Hz with LXE coil, operational: 85...275 V AC 50/60 Hz with LXE coil, drop-out: 0.15...0.2 Uc DC with LX4 coil, operational: 0.85...1.1 Uc DC with LX4 coil, drop-out: 0.35...0.55 Uc AC 40...400 Hz with LX1/LX9 coil, operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil
[Ith] conventional free air thermal current 350 A (at 40 °C)
[Ui] rated insulation voltage 1500 V conforming to VDE 0110 group C, 1000 V conforming to IEC 60947-4-1
Overvoltage category III
Hold-in power consumption in VA 2.5-4.0 VA (at 20 °C)with LXE coil, 4.5-7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 3.68-4.53 VA (at 20 °C)with LX4 coil, 8-10 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil
Maximum operating rate 2400 cyc/h 55 °C
Inrush power in VA 300-310 VA (at 20 °C)with LXE coil, 300-350 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 655-803 VA (at 20 °C)with LX4 coil, 600-700 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil
[Uimp] rated impulse withstand voltage 8 kV
Mounting support plate
[Uc] control circuit voltage 100...380 V with LXE coil, 100...250 V AC 50/60 Hz with LXE coil, 24...460 V DC with LX4 coil, 24...1000 V AC 40...400 Hz with LX1/LX9 coil
[Ue] rated operational voltage <= 460 V DC, <= 690 V AC-4, <= 690 V AC-3, <= 1000 V AC-1
Standards EN 60947-4-1, EN 60947-1, JIS C8201-4-1, IEC 60947-4-1, IEC 60947-1
Average impedance 0.3 mOhm - Ith 350 A 50 Hz
Power dissipation per pole 21 W AC-3, 37 W AC-1
Product certifications UKCA, BV, LROS (Lloyds register of shipping), RINA, CSA, UL, RMRoS, DNV, CB, ABS
Environment
IP degree of protection IP20 front face with shrouds conforming to VDE 0106, IP20 front face with shrouds conforming to IEC 60529
Protective treatment TH
Ambient air temperature for storage -60-80 °C
Ambient air temperature for operation -5-55 °C
Height 203 mm
Mechanical robustness shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms), shocks contactor open: 6 Gn for 1/2 sine wave (11 ms), vibrations contactor closed: 5 Gn, 5...300 Hz, vibrations contactor open: 2 Gn, 5...300 Hz
Permissible ambient air temperature around the device -40-70 °C
Depth 213 mm
Width 201.5 mm
Operating altitude 3000 m without derating
Net weight 8.54 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 25.000 cm
Package 1 Width 25.000 cm
Package 1 Length 28.000 cm
Package 1 Weight 7.159 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 95.140 kg
