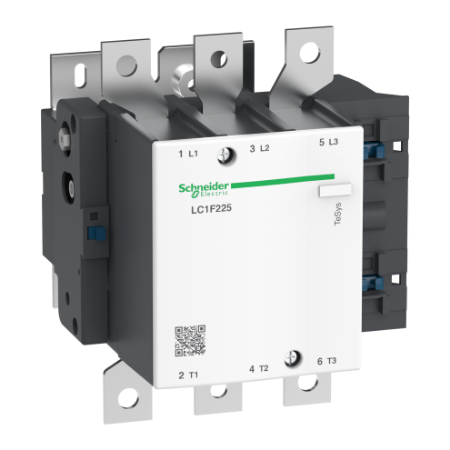

Picture of Contactor body,TeSys F,3P(3NO), AC-3, <=440V 225A without coil
SKU:

LC1F225

Contactor body,TeSys F,3P(3NO), AC-3, <=440V 225A without coil

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Contactor body,TeSys F,3P(3NO), AC-3, <=440V 225A without coil
  • Later selection with no coil
  • High durability: 2400 cycles/hour for operating rate
  • High reliability: environments tolerance up to 55°C
  • Easy installation and maintenance thanks to its drawer-mounted coil and a large choice of add-on blocks
  • Various fields of application with multiple standards certifications
  • Green Premium product
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Brochure
Instruction sheet
Product environmental
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet
TeSys F contactor, 3 poles (3NO), 225A/690V AC-3, for motor applications up to 110kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1F
[Ie] rated operational current 225 A (at <55 °C) at <= 440 V AC-3, 315 A (at <40 °C) at <= 440 V AC-1
Range TeSys
Range of product TeSys F
Motor power kW 40 kW at 400 V AC 50/60 Hz (AC-4), 129 kW at 660...690 V AC 50/60 Hz (AC-3), 63 kW at 220...240 V AC 50/60 Hz (AC-3), 129 kW at 500 V AC 50/60 Hz (AC-3), 110 kW at 440 V AC 50/60 Hz (AC-3), 110 kW at 415 V AC 50/60 Hz (AC-3), 110 kW at 380...400 V AC 50/60 Hz (AC-3)
Poles description 3P
Utilisation category AC-3, AC-1, AC-4
Pole contact composition 3 NO
Product name TeSys F
Product or component type contactor
Contactor application resistive load, motor control
[Ue] rated operational voltage <= 460 V DC, <= 690 V AC 50/60 Hz
Complementary
Heat dissipation 2.2-2.5 W, 8-9.8 W
[Icw] rated short-time withstand current 440 A 40 °C - 10 min, 560 A 40 °C - 3 min, 850 A 40 °C - 1 min, 1000 A 40 °C - 30 s, 1800 A 40 °C - 10 s
Compatibility code LC1F
Mechanical durability 10 Mcycles
Tightening torque control circuit: 0.6 N.m, control circuit: 1.2 N.m, power circuit: 35 N.m
Operating time 6...54 ms opening for with LXE coil, 40...80 ms closing for with LXE coil, 30...50 ms opening for with LX4 coil, 30...40 ms closing for with LX4 coil, 130 ms opening for with LX9 coil, 35 ms closing for with LX9 coil
Connections - terminals control circuit: screw clamp terminals 1.0 cable(s) 0.2-2.5 mm²solid without cable end, control circuit: screw clamp terminals 1.0 cable(s) 0.25-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1.0 cable(s) 0.2-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm², control circuit: screw clamp terminals 1 cable(s) 1-4 mm², control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, power circuit: bolted connection, power circuit: bar 2 cable(s) - busbar cross section: 32 x 4 mm, power circuit: connector 1 cable(s) 185-185 mm², power circuit: lugs-ring terminals 1 cable(s) 185-185 mm²
Associated fuse rating 250 A aM at <= 440 V, 315 A gG at <= 440 V
Irms rated making capacity 2250 A conforming to IEC 60947-4-1
Rated breaking capacity 1800 A conforming to IEC 60947-4-1
Control circuit voltage limits drop-out: 0...45 V DC with LXE coil, operational: 85...418 V DC with LXE coil, drop-out: 0...60 V AC 50/60 Hz with LXE coil, operational: 85...275 V AC 50/60 Hz with LXE coil, drop-out: 0.15...0.2 Uc DC with LX4 coil, operational: 0.85...1.1 Uc DC with LX4 coil, drop-out: 0.2...0.55 Uc AC 40...400 Hz with LX9 coil, operational: 0.85...1.1 Uc AC 40...400 Hz with LX9 coil
[Ith] conventional free air thermal current 315 A (at 40 °C)
[Ui] rated insulation voltage 1500 V conforming to VDE 0110 group C, 1000 V conforming to IEC 60947-4-1
Overvoltage category III
Hold-in power consumption in VA 2.5-4.0 VA (at 20 °C)with LXE coil, 4.5-7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 4.13-5.07 VA (at 20 °C)with LX4 coil, 8.9-10.9 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX9 coil
Maximum operating rate 2400 cyc/h 55 °C
Inrush power in VA 270-320 VA (at 20 °C)with LXE coil, 280-310 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 737-902 VA (at 20 °C)with LX4 coil, 950-1180 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX9 coil
[Uimp] rated impulse withstand voltage 8 kV
Mounting support plate
[Uc] control circuit voltage 100...380 V DC with LXE coil, 100...250 V AC 50/60 Hz with LXE coil, 24...460 V DC with LX4 coil, 24...575 V AC 40...400 Hz with LX9 coil
Standards EN 60947-1, EN 60947-4-1, IEC 60947-1, IEC 60947-4-1, JIS C8201-4-1
Average impedance 0.32 mOhm - Ith 315 A 50 Hz
Power dissipation per pole 16 W AC-3, 32 W AC-1
Product certifications UKCA, RINA, RMRoS, CSA, DNV, ABS, CB, BV, LROS (Lloyds register of shipping), UL
Environment
IP degree of protection IP20 front face with shrouds conforming to VDE 0106, IP20 front face with shrouds conforming to IEC 60529
Protective treatment TH
Ambient air temperature for storage -60-80 °C
Ambient air temperature for operation -5-55 °C
Height 197 mm
Mechanical robustness shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms), shocks contactor open: 7 Gn for 1/2 sine wave (11 ms), vibrations contactor closed: 5 Gn, 5...300 Hz, vibrations contactor open: 2 Gn, 5...300 Hz
Permissible ambient air temperature around the device -40-70 °C
Depth 181 mm
Width 168.5 mm
Operating altitude 3000 m without derating
Net weight 5.55 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 23.000 cm
Package 1 Width 25.000 cm
Package 1 Length 29.000 cm
Package 1 Weight 4.694 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 64.000 kg

Related products

Picture of TeSys F - terminal shroud for contactor or relay 2P/3P

TeSys F - terminal shroud for contactor or relay 2P/3P

LA9F703
$321.55 INC GST $510.40 INC GST
View Detail

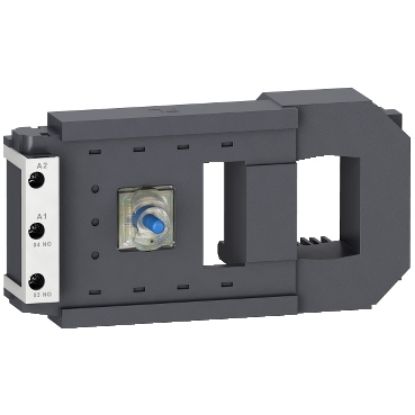

Picture of TeSys F - specific contactor coil - 220...230 V AC 40...400 Hz low consumption
