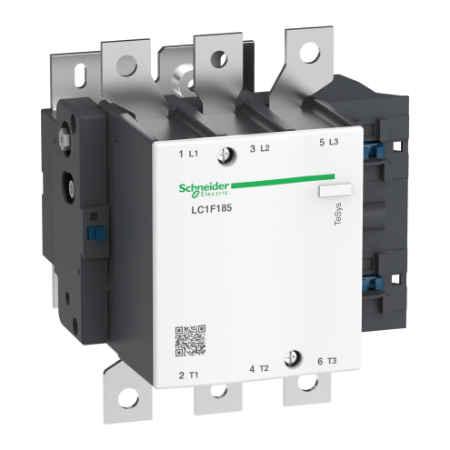

Picture of Contactor body,TeSys F,3P(3NO), AC-3, <=440V 185A without coil
SKU:

LC1F185

Contactor body,TeSys F,3P(3NO), AC-3, <=440V 185A without coil

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Contactor body,TeSys F,3P(3NO), AC-3, <=440V 185A without coil
  • Later selection with no coil
  • High durability: 2400 cycles/hour for operating rate
  • High reliability: environments tolerance up to 55°C
  • Easy installation and maintenance thanks to its drawer-mounted coil and a large choice of add-on blocks
  • Various fields of application with multiple standards certifications
  • Green Premium product
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Brochure
End of life manual
Product environmental
Catalogue
Product Page Link
Product Data Sheet
TeSys F contactor, 3 poles (3NO), 185A/690V AC-3, for motor applications up to 90kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1F
[Ie] rated operational current 185 A (at <55 °C) at <= 440 V AC-3, 275 A (at <40 °C) at <= 440 V AC-1
Range TeSys
Range of product TeSys F
Motor power kW 33 kW at 400 V AC 50/60 Hz (AC-4), 110 kW at 660...690 V AC 50/60 Hz (AC-3), 55 kW at 220...240 V AC 50/60 Hz (AC-3), 90 kW at 380...400 V AC 50/60 Hz (AC-3), 110 kW at 500 V AC 50/60 Hz (AC-3), 100 kW at 440 V AC 50/60 Hz (AC-3), 100 kW at 415 V AC 50/60 Hz (AC-3)
Poles description 3P
Utilisation category AC-1, AC-4, AC-3
Pole contact composition 3 NO
Product name TeSys F
Product or component type contactor
Contactor application motor control, resistive load
[Ue] rated operational voltage <= 460 V DC, <= 690 V AC 50/60 Hz
Complementary
Heat dissipation 2.2-2.5 W, 8-9.8 W
[Icw] rated short-time withstand current 400 A 40 °C - 10 min, 500 A 40 °C - 3 min, 740 A 40 °C - 1 min, 920 A 40 °C - 30 s, 1500 A 40 °C - 10 s
Compatibility code LC1F
Mechanical durability 10 Mcycles
Tightening torque control circuit: 0.6 N.m, control circuit: 1.2 N.m, power circuit: 18 N.m
Operating time 6...54 ms opening for with LXE coil, 40...80 ms closing for with LXE coil, 30...50 ms opening for with LX4 coil, 30...40 ms closing for with LX4 coil, 130 ms opening for with LX9 coil, 35 ms closing for with LX9 coil
Connections - terminals control circuit: screw clamp terminals 1.0 cable(s) 0.2-2.5 mm²solid without cable end, control circuit: screw clamp terminals 1.0 cable(s) 0.25-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1.0 cable(s) 0.2-2.5 mm²flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm², control circuit: screw clamp terminals 1 cable(s) 1-4 mm², control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, power circuit: bolted connection, power circuit: connector 1 cable(s) 150-150 mm², power circuit: lugs-ring terminals 1 cable(s) 150-150 mm², power circuit: bar 2 cable(s) - busbar cross section: 25 x 3 mm
Associated fuse rating 315 A gG at <= 440 V, 200 A aM at <= 440 V
Irms rated making capacity 1850 A conforming to IEC 60947-4-1
Rated breaking capacity 1480 A conforming to IEC 60947-4-1
Control circuit voltage limits drop-out: 0...45 V DC with LXE coil, operational: 85...418 V DC with LXE coil, drop-out: 0...60 V AC 50/60 Hz with LXE coil, operational: 85...275 V AC 50/60 Hz with LXE coil, drop-out: 0.15...0.2 Uc DC with LX4 coil, operational: 0.85...1.1 Uc DC with LX4 coil, drop-out: 0.2...0.55 Uc AC 40...400 Hz with LX9 coil, operational: 0.85...1.1 Uc AC 40...400 Hz with LX9 coil
[Ith] conventional free air thermal current 275 A (at 40 °C)
[Ui] rated insulation voltage 1500 V conforming to VDE 0110 group C, 1000 V conforming to IEC 60947-4-1
Overvoltage category III
Hold-in power consumption in VA 2.5-4.0 VA (at 20 °C)with LXE coil, 4.5-7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 4.13-5.07 VA (at 20 °C)with LX4 coil, 8.9-10.9 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX9 coil
Inrush power in VA 270-320 VA (at 20 °C)with LXE coil, 280-310 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil, 737-902 VA (at 20 °C)with LX4 coil, 950-1180 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX9 coil
[Uimp] rated impulse withstand voltage 8 kV
Mounting support plate
[Uc] control circuit voltage 100...380 V DC with LXE coil, 100...250 V AC 50/60 Hz with LXE coil, 24...460 V DC with LX4 coil, 24...575 V AC 40...400 Hz with LX9 coil
Standards IEC 60947-1, EN 60947-4-1, JIS C8201-4-1, EN 60947-1, IEC 60947-4-1
Average impedance 0.33 mOhm - Ith 275 A 50 Hz
Power dissipation per pole 12 W AC-3, 25 W AC-1
Product certifications UKCA, DNV, RMRoS, BV, UL, CB, CSA, RINA, LROS (Lloyds register of shipping), ABS
Environment
Colour -
IP degree of protection IP2X front face with shrouds conforming to VDE 0106, IP2X front face with shrouds conforming to IEC 60529
Protective treatment TH
Ambient air temperature for storage -60-80 °C
Ambient air temperature for operation -5-55 °C
Height 174 mm
Mechanical robustness shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms), shocks contactor open: 7 Gn for 1/2 sine wave (11 ms), vibrations contactor closed: 5 Gn, 5...300 Hz, vibrations contactor open: 2 Gn, 5...300 Hz
Permissible ambient air temperature around the device -40-70 °C
Depth 181 mm
Width 168.5 mm
Net weight 5.45 kg
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 24.000 cm
Package 1 Width 27.000 cm
Package 1 Length 25.000 cm
Package 1 Weight 4.379 kg
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 61.048 kg
