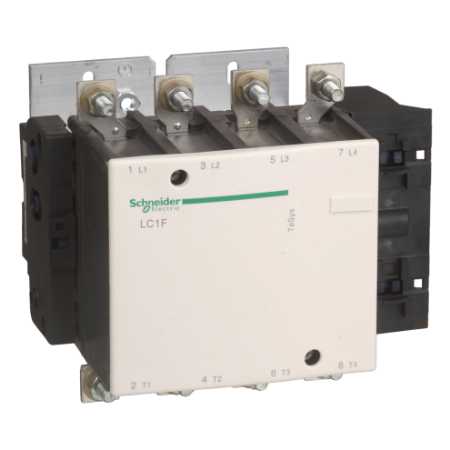

Picture of TeSys F contactor - 4P (4 NO) - AC-1 - <= 440 V 250 A - coil 24 V DC
SKU:

LC1F1504BD

TeSys F contactor - 4P (4 NO) - AC-1 - <= 440 V 250 A - coil 24 V DC

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
TeSys F contactor - 4P (4 NO) - AC-1 - <= 440 V 250 A - coil 24 V DC
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Product environmental
Declaration of conformity
End of life manual
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name LC1F
Poles description 4P
[Ie] rated operational current 250 A (at <40 °C) at <= 440 V AC-1
Utilisation category AC-1
Range TeSys
Product or component type contactor
Contactor application resistive load
[Ue] rated operational voltage <= 460 V DC, <= 690 V AC 50/60 Hz
Range of product TeSys F
[Uc] control circuit voltage 24 V DC
Complementary
Heat dissipation 4.5-4.5 W
[Icw] rated short-time withstand current 350 A 40 °C - 10 min, 450 A 40 °C - 3 min, 600 A 40 °C - 1 min, 700 A 40 °C - 30 s, 1200 A 40 °C - 10 s
[Ui] rated insulation voltage 1500 V conforming to VDE 0110 group C, 1000 V conforming to IEC 60947-4-1
Overvoltage category III
Compatibility code LC1F
Inrush power in W 560-560 W (at 20 °C)
Tightening torque power circuit: 18 N.m, control circuit: 1.2 N.m
Mechanical durability 10 Mcycles
Maximum operating rate 2400 cyc/h 55 °C
Operating time 30...50 ms opening, 30...40 ms closing
Pole contact composition 4 NO
Connections - terminals power circuit: bolted connection, power circuit: connector 1 cable(s) 120-120 mm², power circuit: lugs-ring terminals 1 cable(s) 120-120 mm², power circuit: bar 2 cable(s) - busbar cross section: 25 x 3 mm, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
[Uimp] rated impulse withstand voltage 8 kV
Associated fuse rating 250 A gG at <= 440 V, 160 A aM at <= 440 V
Rated breaking capacity 1200 A conforming to IEC 60947-4-1
Hold-in power consumption in W 4.5-4.5 W at 20 °C
Control circuit type DC standard
Mounting support plate
Standards EN 60947-1, JIS C8201-4-1, IEC 60947-4-1, IEC 60947-1, EN 60947-4-1
Control circuit voltage limits drop-out: 0.15...0.2 Uc (at 55 °C), operational: 0.85...1.1 Uc (at 55 °C)
[Ith] conventional free air thermal current 250 A (at 40 °C)
Average impedance 0.35 mOhm - Ith 250 A 50 Hz
Power dissipation per pole 22 W AC-1
Product certifications UKCA, RMRoS, RINA, LROS (Lloyds register of shipping), CB, UL, ABS, DNV, BV, CCC
Environment
Permissible ambient air temperature around the device 60-70 °C at Uc
Depth 171 mm
Width 200.5 mm
Operating altitude 3000 m without derating
IP degree of protection IP2X front face with shrouds conforming to VDE 0106, IP2X front face with shrouds conforming to IEC 60529
Protective treatment TH
Ambient air temperature for storage -60-80 °C
Net weight 3.83 kg
Ambient air temperature for operation -40-60 °C
Height 170 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 21.0 cm
Package 1 Width 22.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 4.95 kg
