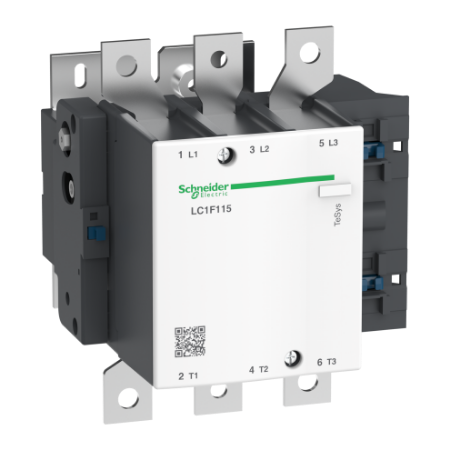

Picture of TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 115 A - coil 220 V AC
SKU:

LC1F115M7

TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 115 A - coil 220 V AC

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 115 A - coil 220 V AC
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Declaration of conformity
Instruction sheet
Brochure
Product environmental
End of life manual
Product Page Link
Product Data Sheet
TeSys F contactor, 3 poles (3NO), 115A/690V AC-3, for motor applications up to 55kW@400V. It provides a low sealed consumption 220V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to its drawer-mounted coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1F
Poles description 3P
[Ie] rated operational current 115 A (at <55 °C) at <= 440 V AC-3, 200 A (at <40 °C) at <= 440 V AC-1
Utilisation category AC-4, AC-1, AC-3
Range TeSys
Product or component type contactor
Contactor application motor control, resistive load
[Ue] rated operational voltage <= 460 V DC, <= 690 V AC 50/60 Hz
Range of product TeSys F
[Uc] control circuit voltage 220 V AC 40...400 Hz
Complementary
Heat dissipation 5.9-7.2 W
[Icw] rated short-time withstand current 320 A 40 °C - 10 min, 400 A 40 °C - 3 min, 520 A 40 °C - 1 min, 640 A 40 °C - 30 s, 1100 A 40 °C - 10 s
[Ui] rated insulation voltage 1500 V conforming to VDE 0110 group C, 1000 V conforming to IEC 60947-4-1
Motor power kW 18.5 kW at 400 V AC 50/60 Hz (AC-4), 30 kW at 220...230 V AC 50/60 Hz (AC-3), 80 kW at 660...690 V AC 50/60 Hz (AC-3), 75 kW at 500 V AC 50/60 Hz (AC-3), 59 kW at 440 V AC 50/60 Hz (AC-3), 59 kW at 415 V AC 50/60 Hz (AC-3), 55 kW at 380...400 V AC 50/60 Hz (AC-3)
Overvoltage category III
Hold-in power consumption in VA 8.1-8.1 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
Compatibility code LC1F
Tightening torque control circuit: 1.2 N.m, power circuit: 10 N.m
Mechanical durability 10 Mcycles
Maximum operating rate 2400 cyc/h 55 °C
Operating time 130 ms opening (at Uc) , 35 ms closing (at Uc)
Pole contact composition 3 NO
Connections - terminals power circuit: bolted connection, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, power circuit: connector 1 cable(s) 95-95 mm², power circuit: lugs-ring terminals 1 cable(s) 95-95 mm², power circuit: bar 2 cable(s) - busbar cross section: 20 x 3 mm
Inrush power in VA 770-770 VA, 40...400 Hz cos phi 0.9 (at 20 °C)
[Uimp] rated impulse withstand voltage 8 kV
Associated fuse rating 200 A gG at <= 440 V, 125 A aM at <= 440 V
Rated breaking capacity 920 A conforming to IEC 60947-4-1
Control circuit type AC at 40...400 Hz
Mounting support plate
Standards JIS C8201-4-1, EN 60947-1, EN 60947-4-1, IEC 60947-1, IEC 60947-4-1
Control circuit voltage limits drop-out: 0.2...0.55 Uc 40...400 Hz (at 55 °C), operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C)
[Ith] conventional free air thermal current 200 A (at 40 °C)
Average impedance 0.37 mOhm - Ith 200 A 50 Hz
Power dissipation per pole 5 W AC-3, 15 W AC-1
Product certifications UKCA, ABS, CCC, UL, DNV, LROS (Lloyds register of shipping), CB, RMRoS, BV, RINA
Environment
Permissible ambient air temperature around the device 60-70 °C at Uc
Depth 171 mm
Width 163.3 mm
Operating altitude 3000 m without derating
IP degree of protection IP2X front face with shrouds conforming to VDE 0106, IP2X front face with shrouds conforming to IEC 60529
Protective treatment TH
Ambient air temperature for storage -60-80 °C
Net weight 3.43 kg
Ambient air temperature for operation -40-60 °C
Height 162 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.500 cm
Package 1 Width 20.000 cm
Package 1 Length 22.500 cm
Package 1 Weight 3.964 kg
Unit Type of Package 2 2
Number of Units in Package 2 18
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 81.952 kg
