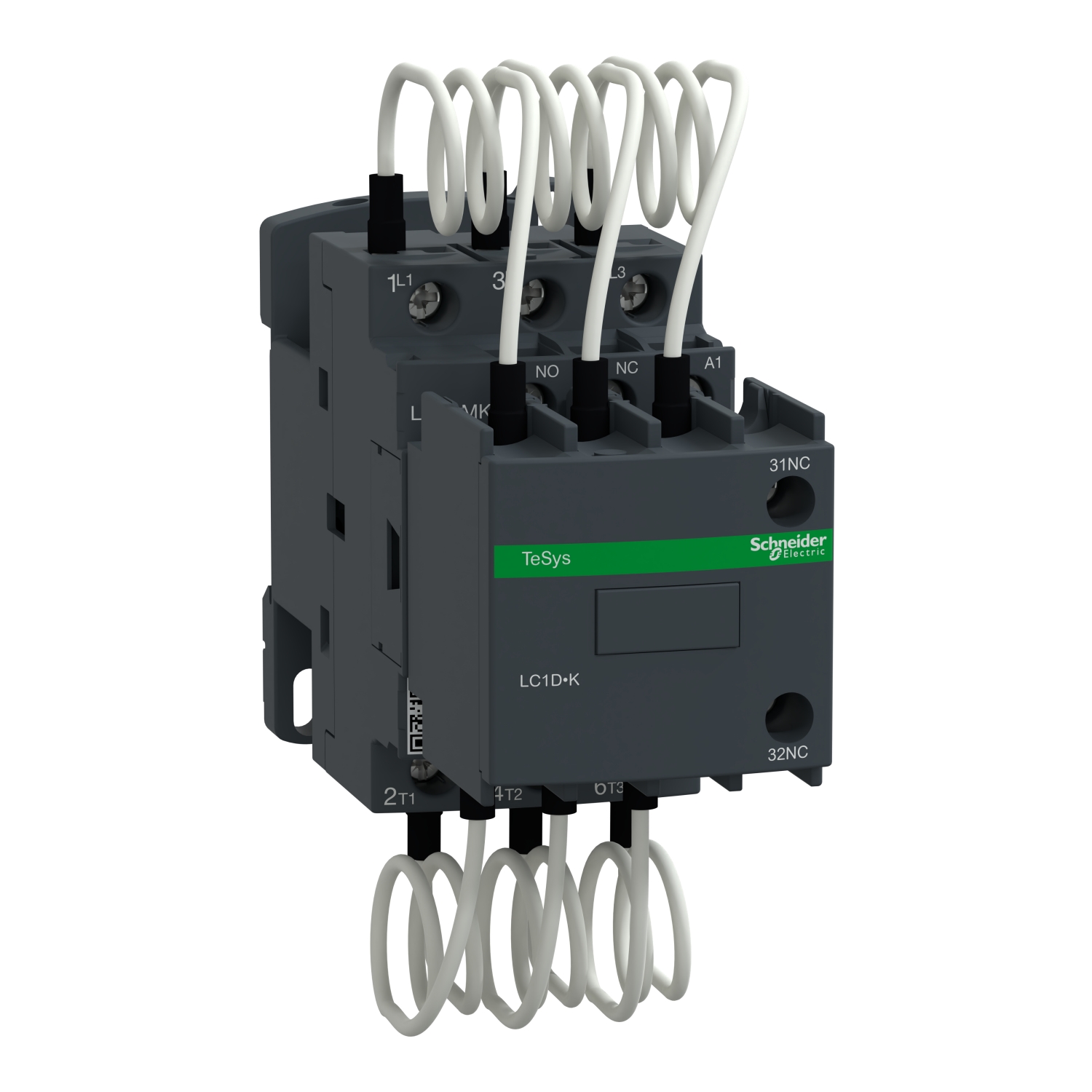

Picture of Capacitor contactor, Tesys Deca, 25kVAR at 400/415V 50Hz, 220V AC 50/60Hz coil, screw clamp terminals
SKU:

LC1DMKM7

Capacitor contactor, Tesys Deca, 25kVAR at 400/415V 50Hz, 220V AC 50/60Hz coil, screw clamp terminals

Old price: $486.75 INC GST
$306.65 INC GST
Available for Shipping : 12-Jan-2026
Capacitor contactor, Tesys Deca, 25kVAR at 400/415V 50Hz, 220V AC 50/60Hz coil, screw clamp terminals
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 25kVAR@400V 50Hz (42kVAR@690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device application control
Electrical durability 200000 cycles at Ue 690 V, 300000 cycles at Ue 400 V
Auxiliary contact composition 1 NO + 2 NC instantaneous
Control circuit type AC at 50/60 Hz
Utilisation category AC-6b
Device location in system inside delta interruption, line interruption
Reactive power rating 42 kvar at 690-690 V AC 50 Hz 60 °C, 27 kvar at 440-440 V AC 50 Hz 60 °C, 25 kvar at 400-400 V AC 50 Hz 60 °C, 14 kvar at 230-230 V AC 50 Hz 60 °C
[Uc] control circuit voltage 220 V AC 50/60 Hz
Product certifications UKCA, IECEE CB Scheme
Device short name LC1DMK
Tightening torque power circuit: 2.5 N.m - on screw clamp terminals, control circuit: 1.7 N.m - on screw clamp terminals
Range TeSys Deca, TeSys
Range of product TeSys Deca
Poles description 3P
Maximum operating rate 240 cyc/h
Connections - terminals power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 2.5-6 mm² - cable stiffness: solid, power circuit: screw clamp terminals 1 2.5-16 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid
Pole contact composition 3 NO
Product name TeSys Deca, TeSys LC1D.K
Product or component type capacitor duty contactor
Contactor application power factor correction
Mounting support plate, DIN rail
Standards IEC 60335-1, EN/IEC 60947-4-1, EN/IEC 60947-1
[Ue] rated operational voltage power circuit: 690 V AC 50/60 Hz
Complementary
Compatibility code LC1D
Auxiliary contacts type type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
Environment
Ambient air temperature for storage -60-80 °C
Height 125 mm
Operating altitude 0...3000 m
Net weight 0.63 kg
IP degree of protection IP20 front face conforming to IEC 60529
Ambient air temperature for operation -5-60 °C
Depth 127 mm
Width 45 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 19.500 cm
Package 1 Length 23.000 cm
Package 1 Weight 599.000 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.077 kg
Unit Type of Package 3 3
Number of Units in Package 3 48
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 42.500 kg
