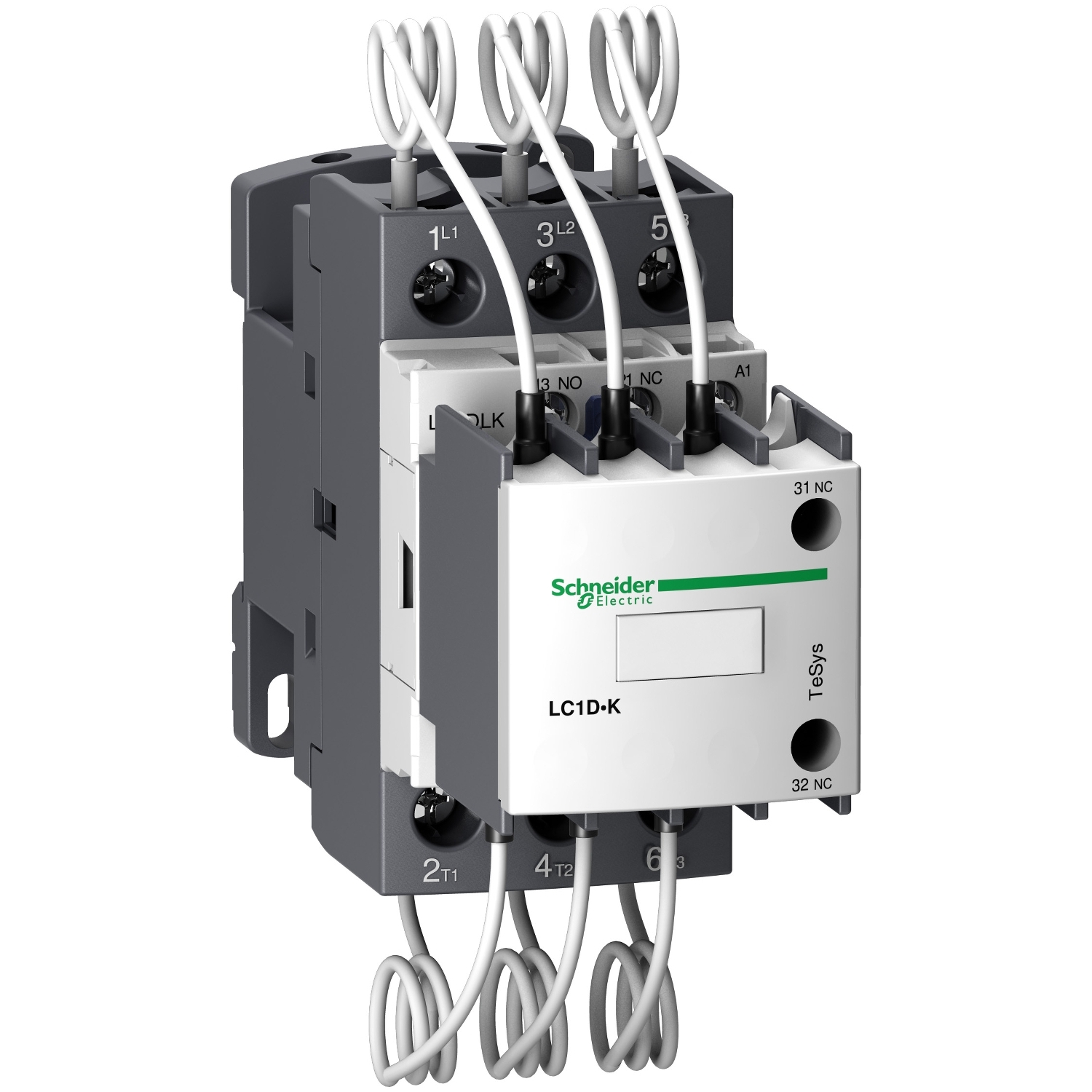

Picture of Capacitor contactor, Tesys Deca, 20kVAR at 400/415V 50Hz, 240V AC 50/60Hz coil, screw clamp terminals
SKU:

LC1DLKU7

Capacitor contactor, Tesys Deca, 20kVAR at 400/415V 50Hz, 240V AC 50/60Hz coil, screw clamp terminals

Old price: $320.65 INC GST
$202.01 INC GST
Availability: Please contact our sales team on 1300 724 622.
Capacitor contactor, Tesys Deca, 20kVAR at 400/415V 50Hz, 240V AC 50/60Hz coil, screw clamp terminals
  • New modern look & feel of all machines
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
  • Compatible for all the voltages on the market
  • Multiple international certifications
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalog
Environmental Disclosure
Product Page Link
Product Data Sheet
TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 20kVAR@400V 50Hz (33kVAR@690V). It provides a 240V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
Device short name LC1DLK
Device application control
Poles description 3P
Electrical durability 200000 cycles at Ue 690 V, 300000 cycles at Ue 400 V
Tightening torque power circuit: 2.5 N.m - on screw clamp terminals, control circuit: 1.7 N.m - on screw clamp terminals
Auxiliary contact composition 1 NO + 2 NC instantaneous
Maximum operating rate 240 cyc/h
Utilisation category AC-6b
Connections - terminals power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 2 2.5-6 mm² - cable stiffness: solid, power circuit: screw clamp terminals 1 2.5-16 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid
Pole contact composition 3 NO
Range TeSys
Product name TeSys Deca, TeSys LC1D.K
Product or component type capacitor duty contactor
Contactor application power factor correction
Device location in system inside delta interruption, line interruption
Control circuit type AC at 50/60 Hz
Mounting support plate, DIN rail
Standards EN/IEC 60947-4-1, EN/IEC 60947-1
Range of product TeSys Deca
Reactive power rating 33 kvar at 690-690 V AC 50 Hz 60 °C, 21 kvar at 440-440 V AC 50 Hz 60 °C, 20 kvar at 400-400 V AC 50 Hz 60 °C, 11 kvar at 230-230 V AC 50 Hz 60 °C
[Ue] rated operational voltage power circuit: 690 V AC 50/60 Hz
[Uc] control circuit voltage 240 V AC 50/60 Hz
Product certifications UKCA, IECEE CB Scheme
Complementary
Compatibility code LC1D
Auxiliary contacts type type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
Environment
Depth 127 mm
Width 45 mm
Operating altitude 0...3000 m
IP degree of protection IP20 front face conforming to IEC 60529
Ambient air temperature for storage -60-80 °C
Net weight 0.6 kg
Ambient air temperature for operation -5-60 °C
Height 125 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 20.0 cm
Package 1 Length 23.0 cm
Package 1 Weight 615.0 g
Unit Type of Package 2 2
Number of Units in Package 2 48
Package 2 Height 60.0 cm
Package 2 Width 80.0 cm
Package 2 Length 48.0 cm
Package 2 Weight 41.32 kg
