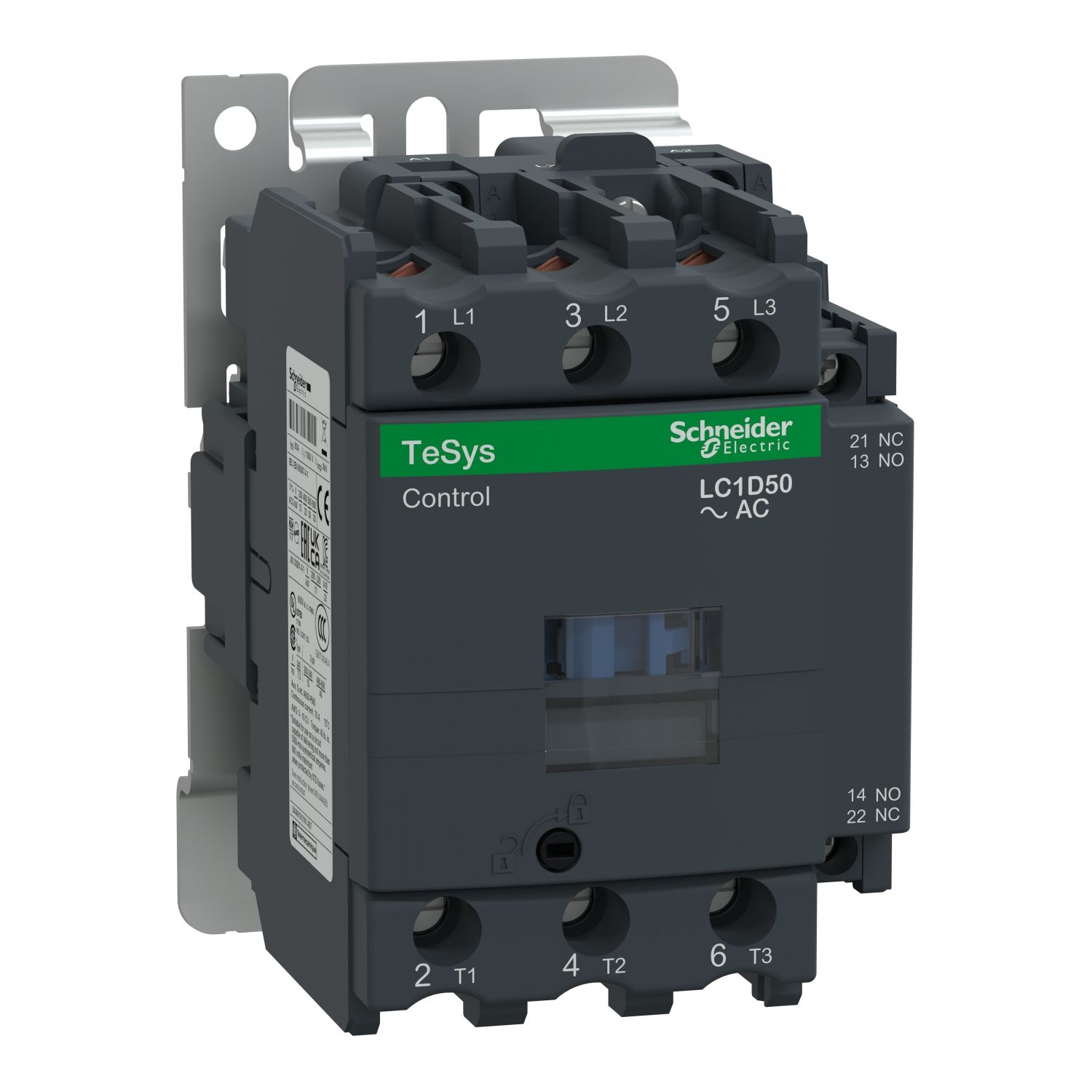

Picture of Contactor, Tesys Deca, 3P(3NO),AC-3/AC-3e/<=440V 50A,120V AC 60Hz coil, screw clamp terminals
SKU:

LC1D50G6

Contactor, Tesys Deca, 3P(3NO),AC-3/AC-3e/<=440V 50A,120V AC 60Hz coil, screw clamp terminals

Old price: $615.89 INC GST
$388.01 INC GST
Availability: Please contact our sales team on 1300 724 622.
Contactor, Tesys Deca, 3P(3NO),AC-3/AC-3e/<=440V 50A,120V AC 60Hz coil, screw clamp terminals
  • Designed to meet needs of demanding applications
  • New modern look & feel of all machines
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
  • Compatible for all the voltages on the market
  • Multiple international certifications
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
TeSys Deca contactor, 3 poles (3NO),for motor control applications 50A/690V,AC-3 33kW@690V. and for non-inductive load control applications up to 80A@60℃ in category AC-1. It provides a 120V 50/60Hz AC coil,1NO/1NC built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN), Green Premium compliant (RoHS/REACh).

Products specifications

Attribute name Attribute value
Main
[Ie] rated operational current 50 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Utilisation category AC-3e, AC-2, AC-4, AC-1, AC-3
[Uc] control circuit voltage 120 V AC 60 Hz
Device short name LC1D
Range TeSys
Range of product TeSys Deca
Poles description 3P
Product or component type contactor
Contactor application resistive load, motor control
[Ue] rated operational voltage power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code LC1D
Associated fuse rating 100 A gG at <= 690 V coordination type 2 for power circuit, 100 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for control circuit conforming to IEC 60947-5-1
Control circuit type AC at 60 Hz
Protective cover with
[Ui] rated insulation voltage power circuit: 690 V conforming to IEC 60947-1, control circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified, control circuit: 600 V UL certified, control circuit: 600 V CSA certified
Overvoltage category III
Auxiliary contacts type type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1,  type mirror contact 1 NC conforming to IEC 60947-4-1
Coil technology without built-in bidirectional peak limiting diode suppressor
Inrush power in VA 160-160 VA cos phi 0.75 (at 20 °C), 140-140 VA cos phi 0.75 (at 20 °C)
Auxiliary contact composition 1 NO + 1 NC
Average impedance 1.5 mOhm - Ith 80 A 50 Hz for power circuit
Power dissipation per pole 3.7 W AC-3e, 9.6 W AC-1, 3.7 W AC-3
Minimum switching current 5 mA for control circuit
Non-overlap time 1.5 ms on energisation between NC and NO contacts, 1.5 ms on de-energisation between NC and NO contacts
Heat dissipation 4-5 W at 50/60 Hz for control circuit
Mechanical durability 6000000 cycles
Tightening torque control circuit: 1.2 N.m - on screw clamp terminal - with screwdriver pozidriv No 2, power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 8 mm, power circuit: 5 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm, control circuit: 1.2 N.m - on screw clamp terminal - with screwdriver Philips No 2, control circuit: 1.2 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm
Minimum switching voltage 17 V for control circuit
Operating time 4...19 ms opening, 12...26 ms closing
Irms rated making capacity 900 A at 440 V for power circuit conforming to IEC 60947, 140 A AC for control circuit conforming to IEC 60947-5-1
Rated breaking capacity 900 A at 440 V for power circuit conforming to IEC 60947
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits 0.3...0.6 Uc (60-60 °C):drop-out AC 60 Hz, 0.85...1.1 Uc (60-60 °C):operational AC 60 Hz
[Ith] conventional free air thermal current 80 A (at 60 °C) for power circuit, 10 A (at 60 °C) for control circuit
Motor power hp 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL, 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA, 40 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to UL, 40 hp at 575/600 V AC 60 Hz for 3 phases motors conforming to CSA, 40 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to UL, 40 hp at 460/480 V AC 60 Hz for 3 phases motors conforming to CSA, 15 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to UL, 15 hp at 230/240 V AC 60 Hz for 3 phases motors conforming to CSA, 15 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to UL, 15 hp at 200/208 V AC 60 Hz for 3 phases motors conforming to CSA, 3 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL, 3 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA
Motor power kW 15 kW at 220...230 V AC 50/60 Hz, 33 kW at 660...690 V AC 50/60 Hz, 30 kW at 500 V AC 50/60 Hz, 30 kW at 440 V AC 50/60 Hz, 25 kW at 415 V AC 50/60 Hz, 22 kW at 380...400 V AC 50/60 Hz
Hold-in power consumption in VA 15-15 VA 60 Hz cos phi 0.3 (at 20 °C), 13-13 VA 50 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals power circuit: connector 2 2.5-35 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 2.5-35 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 2.5-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 2.5-35 mm² - cable stiffness: flexible without cable end, power circuit: connector 2 2.5-35 mm² - cable stiffness: solid with cable end, power circuit: connector 1 2.5-35 mm² - cable stiffness: solid with cable end, control circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminal 2 1-2.5 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminal 1 1-2.5 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminal 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminal 1 1-4 mm² - cable stiffness: solid without cable end
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Insulation resistance > 10 MOhm for control circuit
Mounting support plate, rail
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor opened (2 Gn, 5...300 Hz) , shocks contactor closed (15 Gn for 11 ms) , shocks contactor opened (10 Gn for 11 ms)
Climatic withstand conforming to IACS E10 exposure to damp heat
Standards IEC 60947-5-1, EN 60947-5-1, CSA C22.2 No 14, IEC 60947-4-1, UL 508, EN 60947-4-1
Height 122 mm
Permissible ambient air temperature around the device -40-70 °C at Uc, -5-60 °C
Operating altitude 3000 m without derating
Net weight 1.4 kg
Product certifications UKCA, GL, UL, CSA, GOST, LROS (pending), BV, DNV, RINA, CCC
IP degree of protection IP2X conforming to VDE 0106, IP2X conforming to IEC 60529
Depth 119 mm
Width 55 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.000 cm
Package 1 Width 9.600 cm
Package 1 Length 13.200 cm
Package 1 Weight 1.448 kg
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.610 kg
