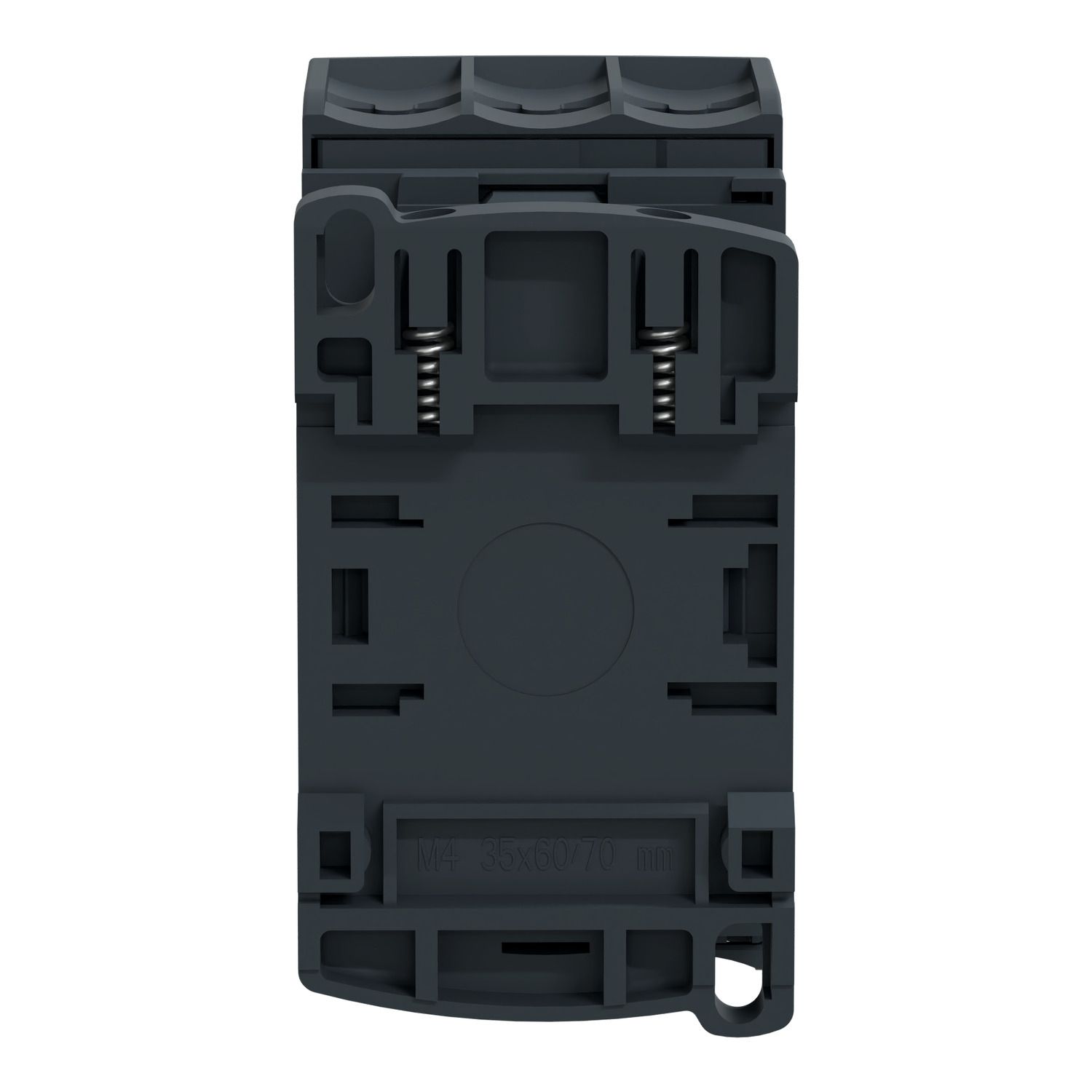

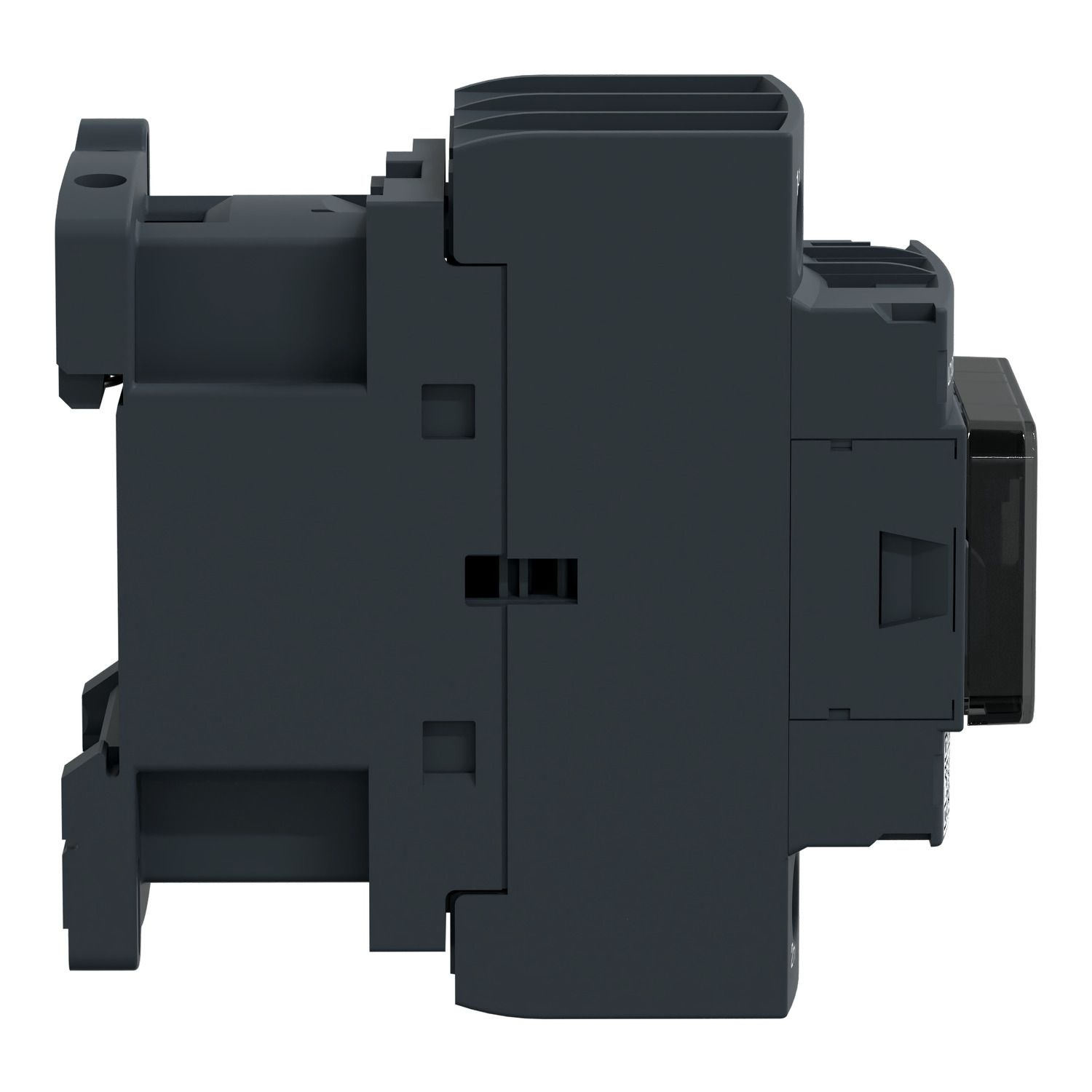

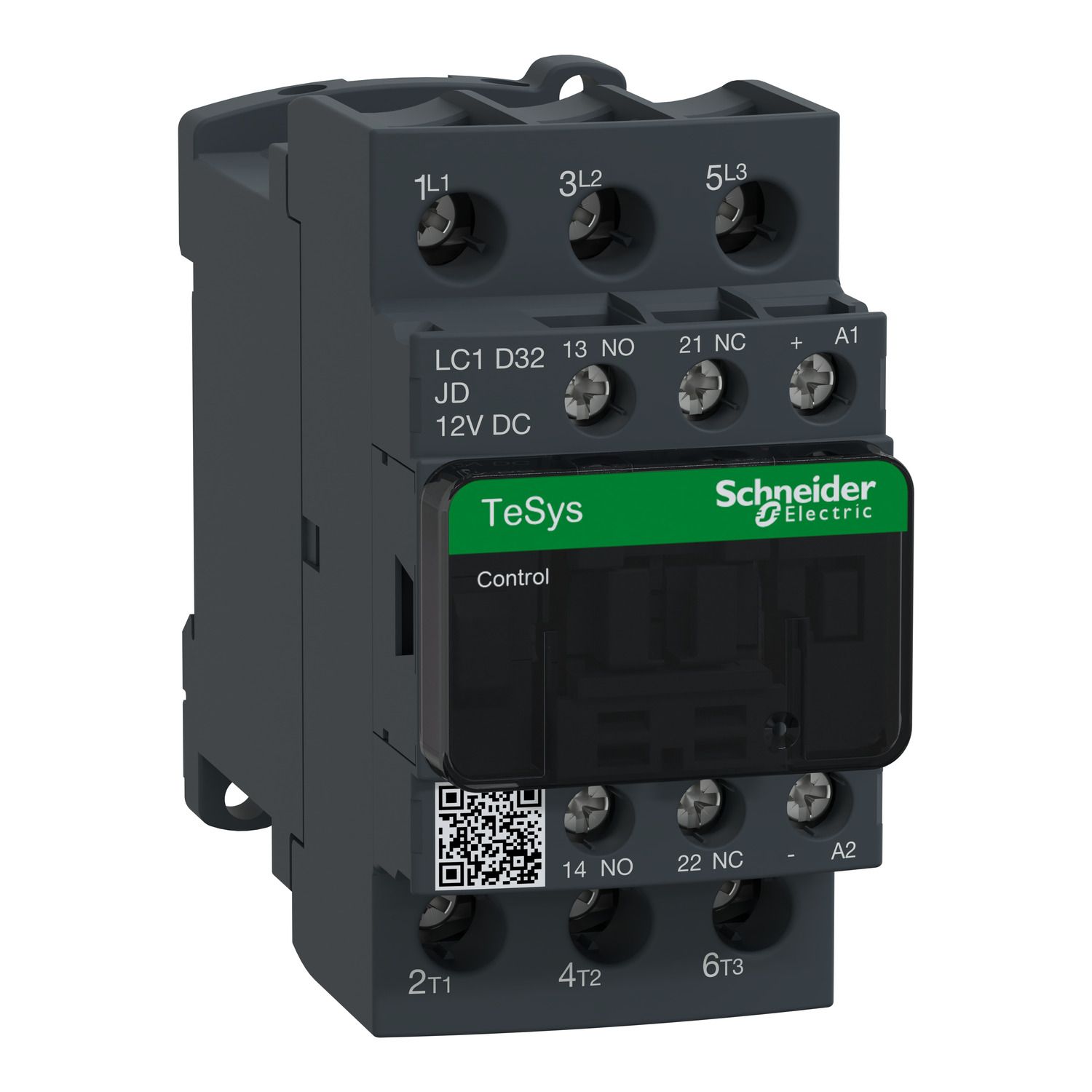

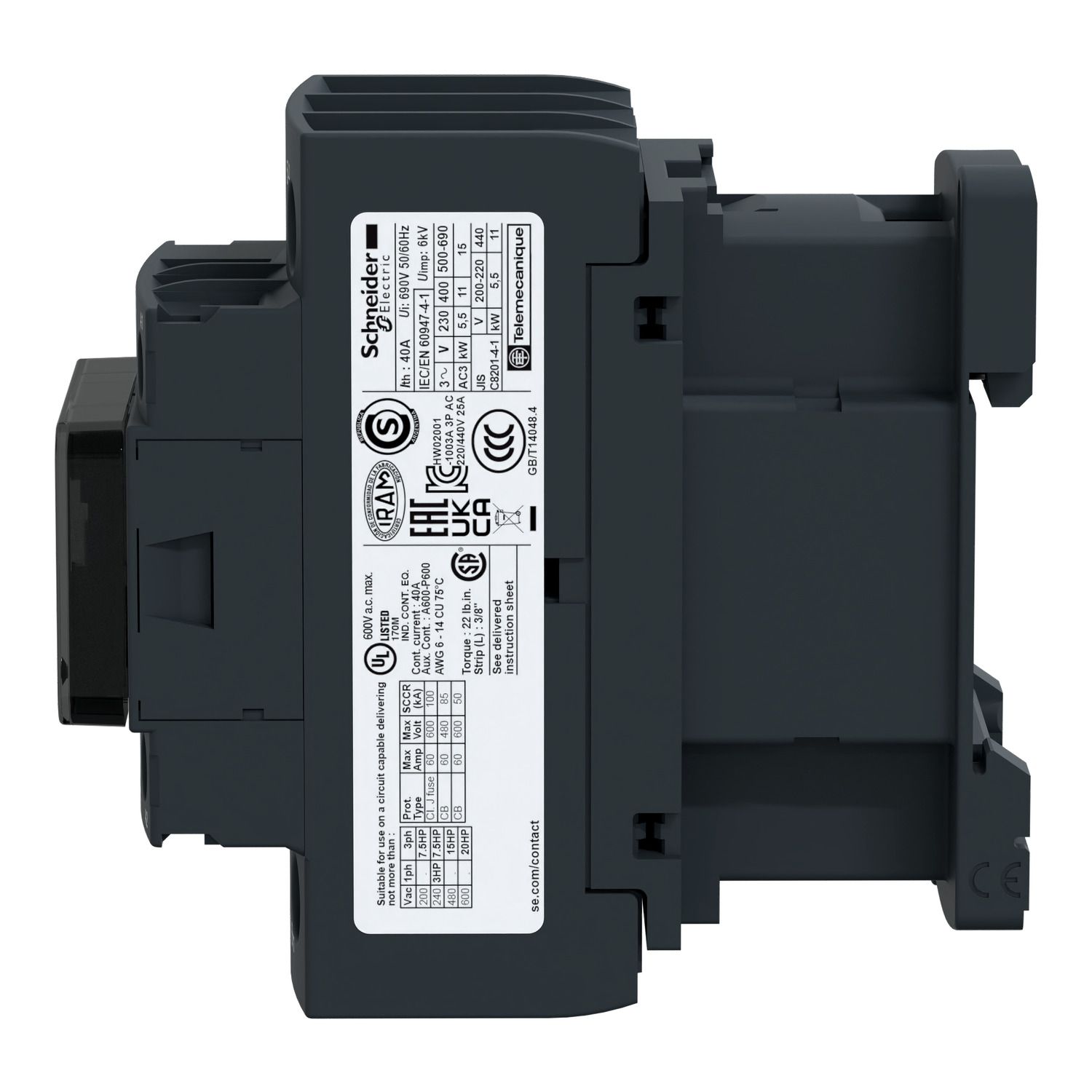

TeSys D, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 12VDC coil

$279.31
Available for Shipping : 19-Jan-2025
Product Selector
TeSys D, Contactor, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 12VDC coil
  • New modern look & feel of all machines
  • Designed to meet the requirements of industrial and HVAC applications
  • Easier to install and operate with multi-standard screws
  • With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
  • Green Premium products and multiple international certificated
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Catalogue
End of life manual
Instruction sheet
Product Page Link
Product Data Sheet
TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). They can be used to create motor starters for almost any type of application. It provides a 12V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Contactor is rated for 7.5HP at 200 to 208VAC, 10HP at 240VAC, 20HP at 480VAC and 30HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 80A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 12 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.98 inches deep. It weighs 1.18 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Products specifications

Attribute name Attribute value
Main
[Ie] rated operational current 32 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Utilisation category AC-3e, AC-4, AC-3, AC-1
[Uc] control circuit voltage 12 V DC
Device short name LC1D
Range of product TeSys Deca
Poles description 3P
Product or component type contactor
Contactor application motor control, resistive load
[Ue] rated operational voltage power circuit: <= 300 V DC, power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code LC1D
Electrical durability 1.65 Mcycles 32 A AC-3e at Ue <= 440 V, 1.4 Mcycles 50 A AC-1 at Ue <= 440 V, 1.65 Mcycles 32 A AC-3 at Ue <= 440 V
Signalling circuit frequency 25...400 Hz
Associated fuse rating 63 A gG at <= 690 V coordination type 2 for power circuit, 63 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Control circuit type DC standard
Protective cover with
[Ui] rated insulation voltage signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified, power circuit: 690 V conforming to IEC 60947-4-1
Overvoltage category III
Auxiliary contacts type type mirror contact 1 NC conforming to IEC 60947-4-1,  type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Coil technology built-in bidirectional peak limiting diode suppressor
Auxiliary contact composition 1 NO + 1 NC
Average impedance 2 mOhm - Ith 50 A 50 Hz for power circuit
Power dissipation per pole 2 W AC-3e, 5 W AC-1, 2 W AC-3
Minimum switching current 5 mA for signalling circuit
Non-overlap time 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
[Icw] rated short-time withstand current 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit, 138 A 40 °C - 1 min for power circuit, 60 A 40 °C - 10 min for power circuit, 430 A 40 °C - 1 s for power circuit, 260 A 40 °C - 10 s for power circuit
Mechanical durability 30 Mcycles
Tightening torque power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2, power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Minimum switching voltage 17 V for signalling circuit
Operating time 20 ±20 % ms opening, 63 ±15 % ms closing
Time constant 28 ms
Irms rated making capacity 550 A at 440 V for power circuit conforming to IEC 60947, 250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity 550 A at 440 V for power circuit conforming to IEC 60947
Pollution degree 3
Safety reliability level B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits 1...1.25 Uc (60-70 °C):operational DC, 0.7...1.25 Uc (-40-60 °C):operational DC, 0.1...0.25 Uc (-40-70 °C):drop-out DC
[Ith] conventional free air thermal current 50 A (at 60 °C) for power circuit, 10 A (at 60 °C) for signalling circuit
Motor power hp 25 hp at 575/600 V AC 50/60 Hz for 3 phases motors, 20 hp at 460/480 V AC 50/60 Hz for 3 phases motors, 10 hp at 230/240 V AC 50/60 Hz for 3 phases motors, 10 hp at 200/208 V AC 50/60 Hz for 3 phases motors, 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors, 2 hp at 115 V AC 50/60 Hz for 1 phase motors
Motor power kW 18.5 kW at 660...690 V AC 50/60 Hz (AC-3e), 18.5 kW at 500 V AC 50/60 Hz (AC-3e), 15 kW at 415...440 V AC 50/60 Hz (AC-3e), 15 kW at 380...400 V AC 50/60 Hz (AC-3e), 7.5 kW at 220...230 V AC 50/60 Hz (AC-3e), 7.5 kW at 400 V AC 50/60 Hz (AC-4), 18.5 kW at 660...690 V AC 50/60 Hz (AC-3), 18.5 kW at 500 V AC 50/60 Hz (AC-3), 15 kW at 415...440 V AC 50/60 Hz (AC-3), 15 kW at 380...400 V AC 50/60 Hz (AC-3), 7.5 kW at 220...230 V AC 50/60 Hz (AC-3)
Inrush power in W 5.4-5.4 W (at 20 °C)
Maximum operating rate 3600 cyc/h 60 °C
Connections - terminals power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end, power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
Pole contact composition 3 NO
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Insulation resistance > 10 MOhm for signalling circuit
Hold-in power consumption in W 5.4-5.4 W at 20 °C
Contact compatibility M4
Mounting support plate, rail
Environment
Fire resistance 850 °C conforming to IEC 60695-2-1
Mechanical robustness shocks contactor open (8 Gn for 11 ms) , shocks contactor closed (15 Gn for 11 ms) , vibrations contactor closed (4 Gn, 5...300 Hz) , vibrations contactor open (2 Gn, 5...300 Hz)
Climatic withstand conforming to IEC 60947-1 Annex Q category D exposure to damp heat,  conforming to IACS E10 exposure to damp heat
Standards IEC 60335-1, UL 508, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA C22.2 No 14
Height 85 mm
Permissible ambient air temperature around the device 60-70 °C with derating, -40-60 °C
Operating altitude 0...3000 m
Net weight 0.535 kg
Product certifications UKCA, CCC, GL, GOST, BV, UL, DNV, RINA, CSA, LROS (Lloyds register of shipping)
IP degree of protection IP20 front face conforming to IEC 60529
Protective treatment TH conforming to IEC 60068-2-30
Depth 101 mm
Width 45 mm
Flame retardance V1 conforming to UL 94
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.6 cm
Package 1 Width 9.4 cm
Package 1 Length 12.0 cm
Package 1 Weight 592.0 g
Unit Type of Package 2 2
Number of Units in Package 2 15
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 9.2 kg
