SKU:

LA9ZA32627

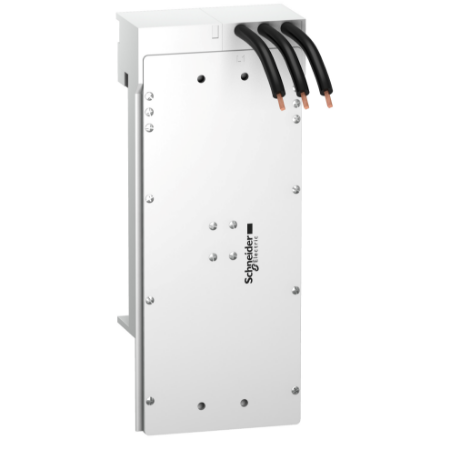

PLATE LD 63A 108X260 IEC/UL FOR 60 BUSBAR INTERAXIS

Call for pricing

Availability: Please contact our sales team on 1300 724 622.

PLATE LD 63A 108X260 IEC/UL FOR 60 BUSBAR INTERAXIS

Manufacturer: Schneider Electric

Product environmental

Catalogue

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	LA9Z
Number of ways	1 way
Range	Linergy
Product name	BZ
Product or component type	adaptors for busbar systems
Range of product	TeSys
Complementary
Product compatibility	LD4LD, LD1
Depth	63 mm
Range compatibility	TeSys, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Width	108 mm
Colour	grey
Poles description	3P
[Ui] rated insulation voltage	690 V
Permissible current	63 A
Cable cross section	10-10 mm² - AWG 8
Height	260 mm
Busbar pitch	60 mm
Environment
IP degree of protection	IP20 conforming to IEC 60529
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	10.5 cm
Package 1 Width	11.5 cm
Package 1 Length	30.5 cm
Package 1 Weight	863 g
Unit Type of Package 2	2
Number of Units in Package 2	10
Package 2 Height	30 cm
Package 2 Width	40 cm
Package 2 Length	60 cm
Package 2 Weight	9.436 kg
Unit Type of Package 3	3
Package 3 Height	80 cm
