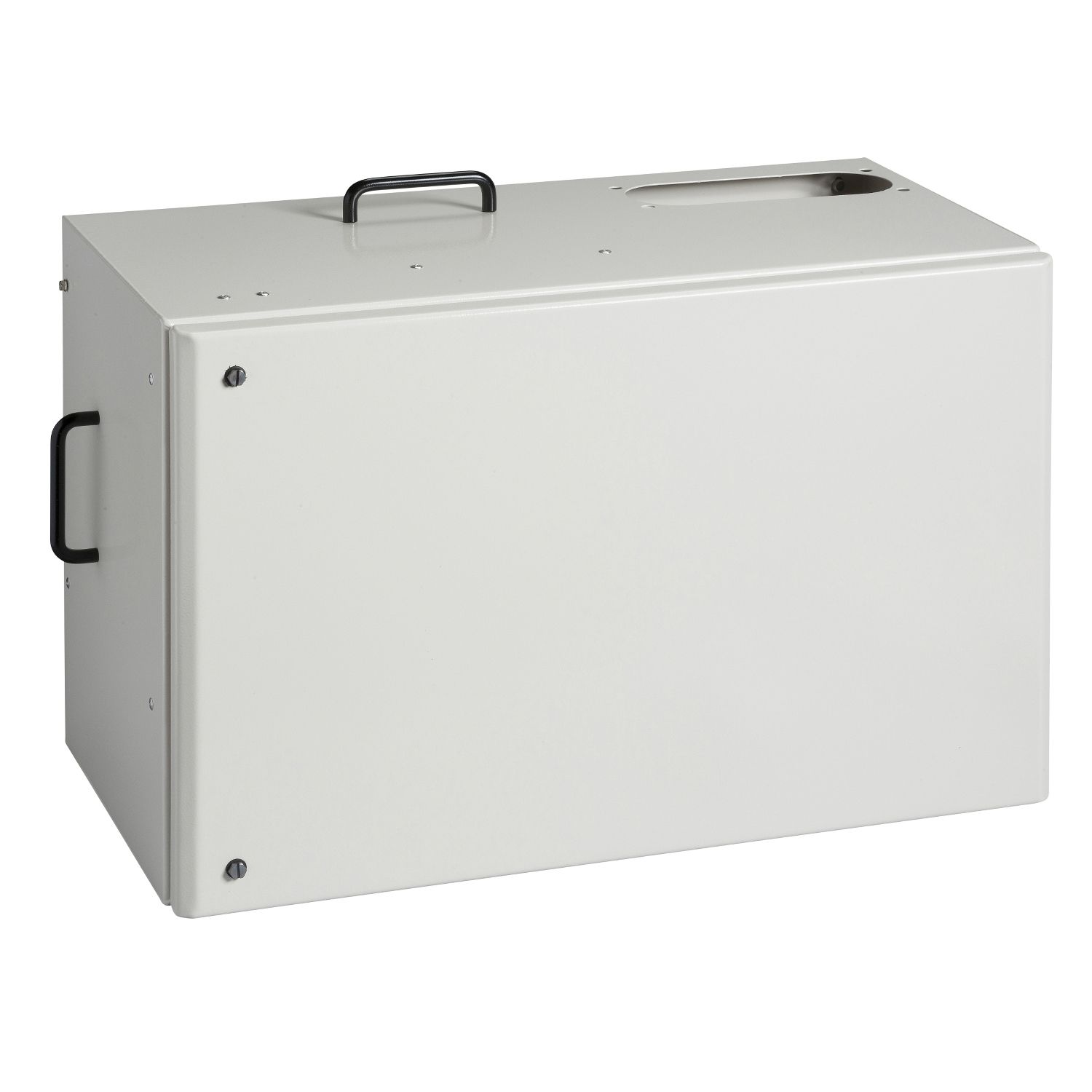

Picture of Tap off unit, Canalis KS, ComPacT NSX250 plug in, 250A, 3L+N+PE, electrical handle, white RAL9001
SKU:

KSB250DD412

Tap off unit, Canalis KS, ComPacT NSX250 plug in, 250A, 3L+N+PE, electrical handle, white RAL9001

$2,645.28 INC GST
Available for Shipping : 16-Apr-2026
Tap off unit, Canalis KS, ComPacT NSX250 plug in, 250A, 3L+N+PE, electrical handle, white RAL9001
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 16-Apr-2026
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Colour white (RAL 9001)
Tap-off unit polarity 3L+N+PE
Product compatibility Canalis KS busbar trunkingplug-in
Range Canalis
Product or component type tap-off unit
[Ie] rated operational current 250-250 A at 35 °C
Range compatibility Canalis KS busbar trunking
Offer type advanced
Protection type circuit breaker: Compact NSX250
Provided equipment circuit-breaker to be ordered separately
Range of product Canalis
Mounting mode plug-in with fixed polarity
Complementary
Device application medium power distribution
[Ui] rated insulation voltage 500 V depending on protective device, 400 V depending on protective device
Depth 359 mm
Width 450 mm
[Ue] rated operational voltage 500 V depending on protective device, 400 V depending on protective device
Door opening side right
Function available circuit breaker
Control type motor mechanism
Electrical connection crimp lug - ISO40 150-150 mm² rigid, crimp lug - ISO40 150-150 mm² flexible
Tap-off unit disconnection mode By opening the door
Net weight 16 kg
Number of openings 2 openings for FL21 gland plate
Standards IEC 61439-1, IEC 61439-6
[Uimp] rated impulse withstand voltage 6.8 kV
Door opening size 1082 mm
Network frequency 50/60 Hz
Environment
Earthing system IT, TN-S, TT
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 36.3 cm
Package 1 Width 43.2 cm
Package 1 Length 63.7 cm
Package 1 Weight 16.67 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 91.0 cm
Package 2 Width 80.0 cm
Package 2 Length 120.0 cm
Package 2 Weight 86.0 kg
