SKU:

KSA1000DTC40

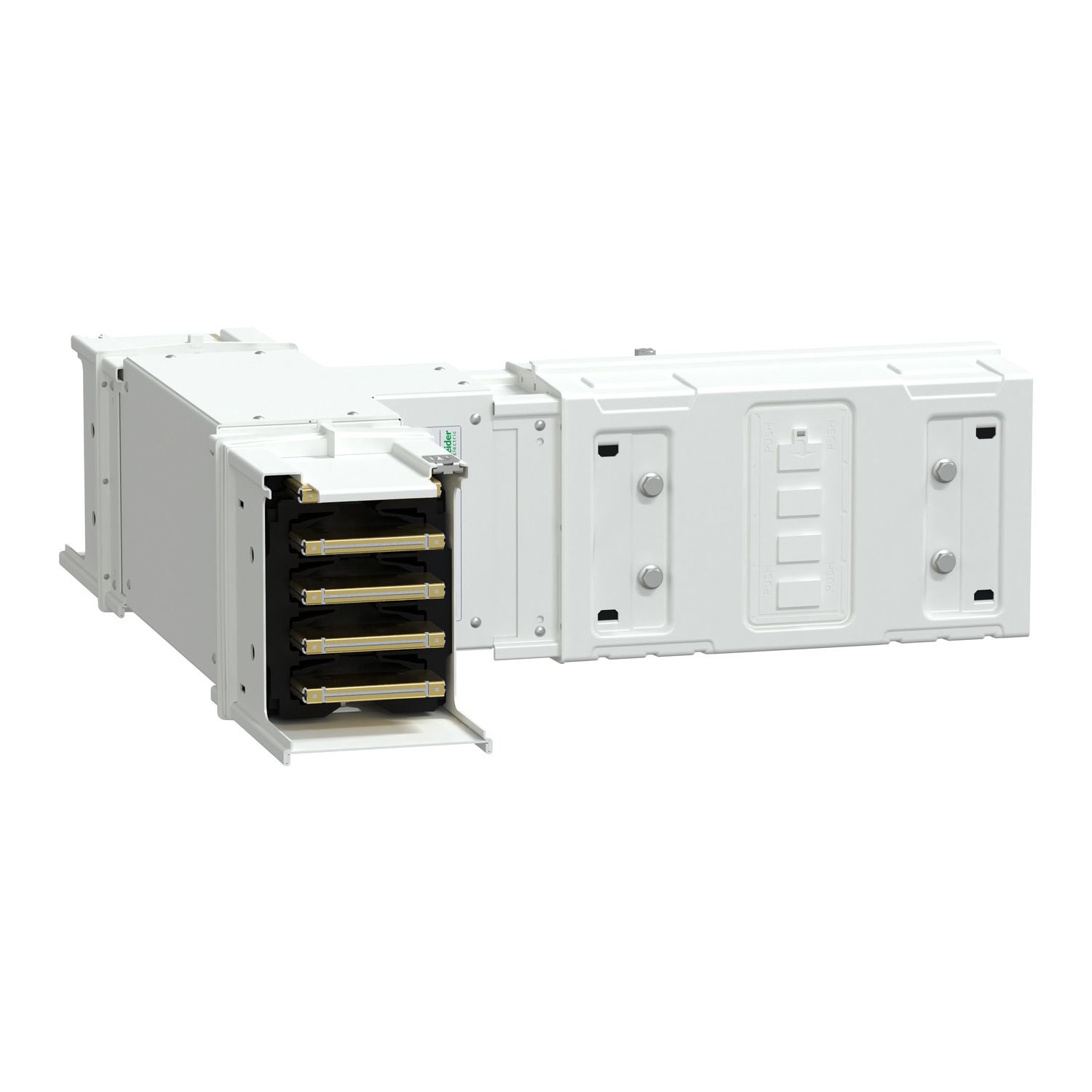

Tee, Canalis KSA1000, aluminium , 800/1000A, fixed dimensions (A/B/C 290mm), 3L+N+PE, white RAL9001

$3,938.88 INC GST

Qty:

Available for Shipping : 09-Apr-2026

Tee, Canalis KSA1000, aluminium , 800/1000A, fixed dimensions (A/B/C 290mm), 3L+N+PE, white RAL9001

Manufacturer: Schneider Electric

Delivery date: 09-Apr-2026

Environmental Disclosure

Declaration of conformity

Instruction sheet

Catalog

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
[Ue] rated operational voltage	230...690 V
Device short name	KSA
Device application	change direction
Colour	white (RAL 9001)
[Ie] rated operational current	1000 A at 35 °C
Busbar description	standard
Dimension type	made to measure
Busbar trunking polarity	3L + N + PE
IP degree of protection	IP55 conforming to IEC 60529
Range	Canalis
Material	aluminium
Direction change type	edgewise to perpendicular - neutral to up
Product name	KS
Product or component type	tee
Product compatibility	Canalis KSA busbar trunking 500-1000 A
Offer type	advanced
Operating angle	90-90 °
Range of product	Canalis
Network frequency	50/60 Hz
Complementary
Width	113 mm
Mounting position	any position
Electrical connection	lubricated sliding contact
Mounting mode	by screws
Mounting location	on trunking
Net weight	10 kg
Length	290-290 mm for side C, 290-290 mm for side B, 290-290 mm for side A
Standards	IEC 61439-6, IEC 61439-1
Height	146-146 mm
Environment
IK degree of protection	IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	16.8 cm
Package 1 Width	35 cm
Package 1 Length	71.9 cm
Package 1 Weight	12.94 kg
