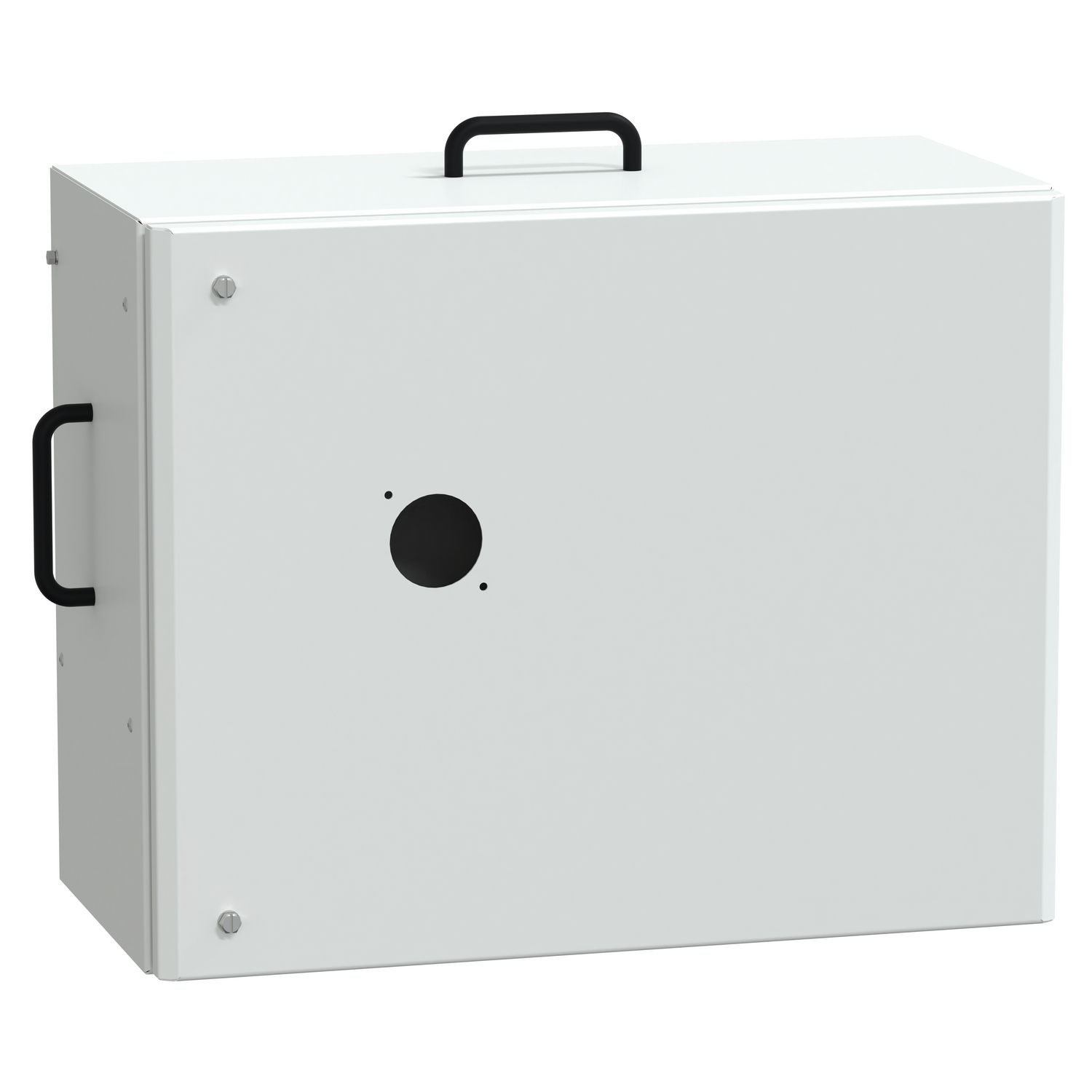

Picture of Tap off unit, Canalis KS 100A to 1000A, for ComPacT NSX250 with extended rotary handle, 250A, 3L+N+PE, IP55, RAL9001
SKU:

KSB250DC4

Tap off unit, Canalis KS 100A to 1000A, for ComPacT NSX250 with extended rotary handle, 250A, 3L+N+PE, IP55, RAL9001

$1,776.72 INC GST
Available for Shipping : 06-Apr-2026
Tap off unit, Canalis KS 100A to 1000A, for ComPacT NSX250 with extended rotary handle, 250A, 3L+N+PE, IP55, RAL9001
  • Busbar trunking system for power distribution from 100A up to 1000A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Apr-2026
Catalog
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
Canalis tap-off unit for KT and KS. It's applied to medium power distribution and TT, IT and TN-S earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 250A at 35 ℃. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L + N + PE. It provided protection for NSX circuit breaker with rotary handle control (circuit breaker to be ordered separately). It provided 1 right opening for FL21 gland plate to tap-off unit disconnection by rotary operating handle. Canalis KS busbar trunking compatibility with plug-in outlets, Canalis KT busbar trunking compatibility with KS type plug-in outlets. It provides IP55 protection which conforming to EN/IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name Attribute value
Main
Colour white (RAL 9001)
Range Canalis
Offer type classic
Protection type circuit breaker: Compact NSX250
Range of product Canalis
Tap-off unit polarity 3L+N+PE
Product or component type tap-off unit
[Ie] rated operational current 250-250 A at 35 °C
Range compatibility Canalis KT busbar trunking, Canalis KS busbar trunking
Provided equipment circuit-breaker to be ordered separately
Mounting mode plate with fixed polarity
Complementary
Device application medium power distribution
[Ue] rated operational voltage 500 V depending on protective device, 400 V depending on protective device
Body material metal
Door opening side right
Function available circuit breaker
Control type extended rotary handle
Electrical connection crimp lug - ISO40 150-150 mm² rigid, crimp lug - ISO40 150-150 mm² flexible
Number of openings 1 opening for FL21 gland plate
Standards IEC 61439-1, IEC 61439-6
[Uimp] rated impulse withstand voltage 6.8 kV
Height 400 mm
[Ui] rated insulation voltage 500 V depending on protective device, 400 V depending on protective device
Depth 300 mm
Width 500 mm
Tap-off unit disconnection mode by rotary operating handle
Net weight 12.5 kg
Door opening size 726.5 mm
Network frequency 50/60 Hz
Environment
IP degree of protection IP55 conforming to IEC 60529
IK degree of protection IK08 conforming to IEC 62262
Earthing system IT, TN-S, TT
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 34.000 cm
Package 1 Width 45.000 cm
Package 1 Length 55.000 cm
Package 1 Weight 13.358 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 79.400 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 65.434 kg
