SKU:

KSB160SV4

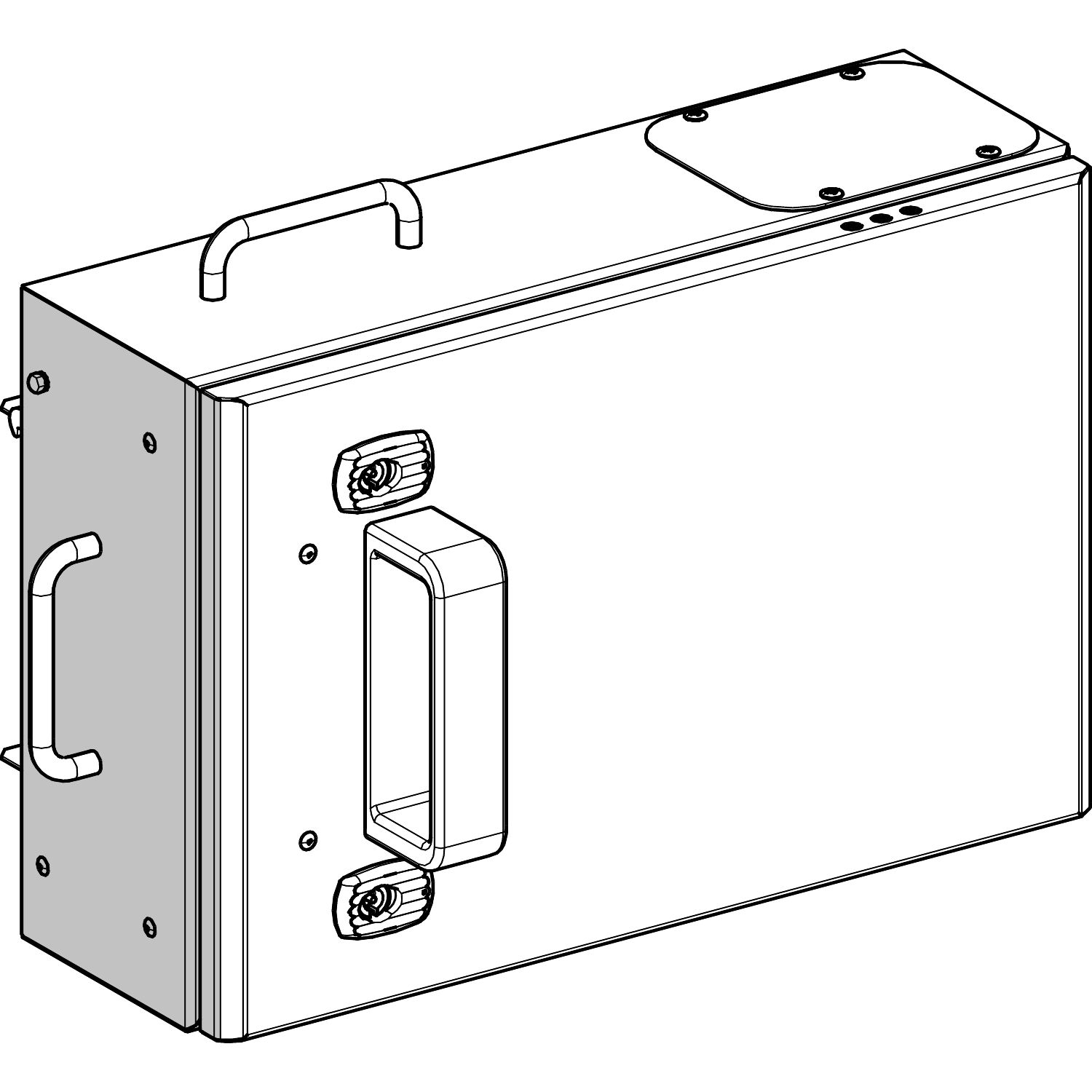

Empty tap off unit, Canalis KS, with isolator, polarity 3L+N+PE, 160A, IP55, RAL9001

$1,111.44 INC GST

Qty:

Available for Shipping : 06-Apr-2026

Empty tap off unit, Canalis KS, with isolator, polarity 3L+N+PE, 160A, IP55, RAL9001

Manufacturer: Schneider Electric

Delivery date: 06-Apr-2026

Environmental Disclosure

Catalog

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Product compatibility	KS
Tap-off unit polarity	3L+N+PE
[Ie] rated operational current	160 A at 35 °C
Range	Canalis
Product name	KS
Product or component type	empty tap-off unit
Range of product	Canalis
Complementary
Device application	low power distribution
[Ui] rated insulation voltage	690 V depending on protective device
Depth	207 mm
Width	482 mm
Colour	white (RAL 9001)
[Ue] rated operational voltage	230...690 V depending on protective device
Body material	metal
Door opening side	right
IP degree of protection	IP55 conforming to IEC 60529
Tap-off unit disconnection mode	By drawing out
Net weight	8 kg
Tap-off unit connector type	with fixed polarity
[Uimp] rated impulse withstand voltage	8 kV
Standards	IEC 61439-6, IEC 60439-2
Door opening size	630.5 mm
Height	332 mm
IK degree of protection	IK08 conforming to IEC 62262
Network frequency	50/60 Hz
Environment
Earthing system	IT - tap-off unit, TN-S - tap-off unit, TT - tap-off unit, IT - busbar trunking, TN-C - busbar trunking, TN-S - busbar trunking, TT - busbar trunking
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	28.5 cm
Package 1 Width	33.5 cm
Package 1 Length	51.0 cm
Package 1 Weight	8.314 kg
Unit Type of Package 2	2
Number of Units in Package 2	8
Package 2 Height	71.0 cm
Package 2 Width	80.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	77.0 kg
