SKU:

KSB100SV4

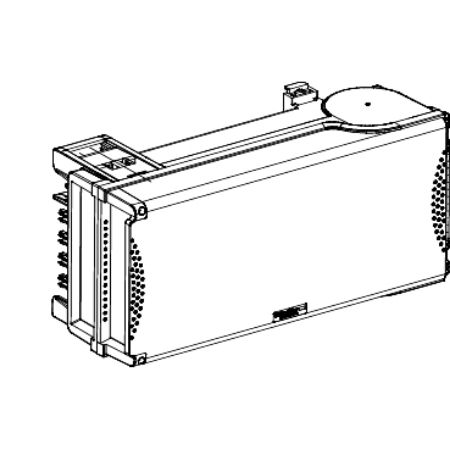

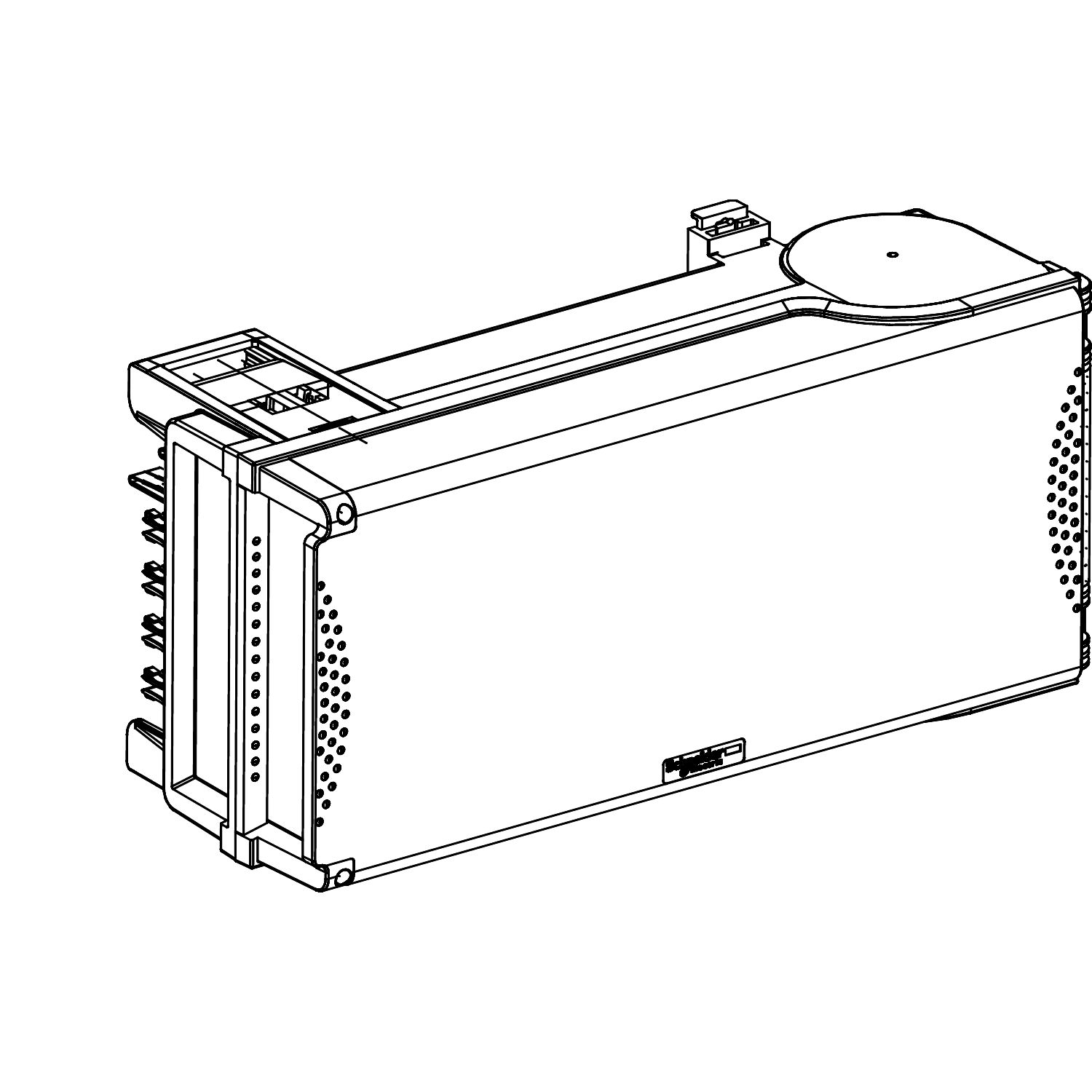

Empty tap off unit, Canalis KS, with isolator, polarity 3L+N+PE, 100A, IP55, RAL9001

$578.82 INC GST

Qty:

Available for Shipping : 12-Apr-2026

Empty tap off unit, Canalis KS, with isolator, polarity 3L+N+PE, 100A, IP55, RAL9001

Manufacturer: Schneider Electric

Delivery date: 12-Apr-2026

Environmental Disclosure

Catalog

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Product compatibility	KS
Tap-off unit polarity	3L+N+PE
[Ie] rated operational current	100 A at 35 °C
Range	Canalis
Product name	KS
Product or component type	empty tap-off unit
Range of product	Canalis
Complementary
Device application	low power distribution
[Ui] rated insulation voltage	690 V depending on protective device
Depth	128 mm
Width	344 mm
Colour	white (RAL 9001)
[Ue] rated operational voltage	230...690 V depending on protective device
Body material	plastic
Door opening side	right
IP degree of protection	IP55 conforming to IEC 60529
Tap-off unit disconnection mode	By drawing out
Net weight	4.8 kg
Tap-off unit connector type	with fixed polarity
[Uimp] rated impulse withstand voltage	8 kV
Standards	IEC 60439-2, IEC 61439-6
Door opening size	545.5 mm
Height	220 mm
IK degree of protection	IK08 conforming to IEC 62262
Network frequency	50/60 Hz
Environment
Earthing system	IT - tap-off unit, TN-S - tap-off unit, TT - tap-off unit, IT - busbar trunking, TN-C - busbar trunking, TN-S - busbar trunking, TT - busbar trunking
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	18.400 cm
Package 1 Width	22.000 cm
Package 1 Length	44.400 cm
Package 1 Weight	2.929 kg
Unit Type of Package 2	2
Number of Units in Package 2	25
Package 2 Height	80.000 cm
Package 2 Width	80.000 cm
Package 2 Length	120.000 cm
Package 2 Weight	94.000 kg
