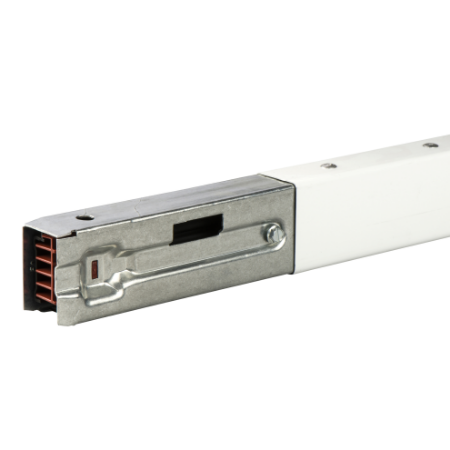

Picture of Straight length, Canalis KBA, 40A, 1 circuit, 3L+N+PE, compatible DALI, no outlet, 3m, white RAL9003
SKU:

KBA40ED4300W

Straight length, Canalis KBA, 40A, 1 circuit, 3L+N+PE, compatible DALI, no outlet, 3m, white RAL9003

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Straight length, Canalis KBA, 40A, 1 circuit, 3L+N+PE, compatible DALI, no outlet, 3m, white RAL9003
  • Compatible range for lighting systems in small and medium height buildings
  • Modular and upgradeable system
  • Fast and easy mounting solution
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • High protection index IP 55 for all types of buildings
  • Compliant with DALI and KNX communication protocols
  • Dismantled, re-used and entirely recyclable
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
Catalogue
Product Page Link
Product Data Sheet
This is a straight length for Canalis KBA busbar trunking. Canalis KBA is designed for lighting and power socket distribution. The rated operational current is 40A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. There is no tap-off outlet. It embeds 1 electrical circuits with 3L+N+PE polarity. The length is 3m, and the section is 30mm x 46mm. Sold in lots of 6 units. It is made off RAL 9003 white lacquered sheet steel. Canalis KBA is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 230...400 V
Device short name KBA
Device application power socket distribution, lighting
Product compatibility KBA
Number of tap-off outlets 0
Busbar description distribution length
Mounting mode by clips
Communication port protocol DALI
[Ie] rated operational current 40 A at 35 °C
Busbar trunking polarity 3L + N + PE
Control type communicating
Range Canalis
Number of circuits 1
Product or component type straight length
Offer type control system, classic
Range of product Canalis
Network frequency 50/60 Hz
Complementary
[Ipk] rated peak withstand current 9.6 kA
Width 30 mm
Colour white (RAL 9003)
Thermal stress limit 900 kA².s
Maximum voltage drop <0.22 V with power factor = 0.7 at 50 Hz with 1A for 100 m long,  <0.25 V with power factor = 0.8 at 50 Hz with 1A for 100 m long,  <0.28 V with power factor = 0.9 at 50 Hz with 1A for 100 m long,  <0.3 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight 3.1 kg
Length 3 m
Maximum radiated magnetic field 2 pT
[Ui] rated insulation voltage 690 V
Linear resistance 8.7 mΩ/m Rb1 35 °C at Inc with impedance method Ph/PE, 6.91 mΩ/m Rb1 35 °C at Inc with impedance method Ph/N, 6.91 mΩ/m Rb1 35 °C at Inc with impedance method Ph/Ph, 7.66 mΩ/m Rb0 20 °C impedance method Ph/PE, 19.41 mΩ/m Z0 20 °C symmetrical components method Ph/N, 0.38 mΩ/m X0 20 °C symmetrical components method Ph/N, 19.4 mΩ/m R0 20 °C symmetrical components method Ph/N, 0.035 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/PE, 1.57 mΩ/m protective conductor, 0.9 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/N, 0.9 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/Ph, 5.68 mΩ/m Rb0 20 °C impedance method Ph/N, 5.68 mΩ/m Rb0 20 °C impedance method Ph/Ph, 13.85 mΩ/m Z0 20 °C symmetrical components method Ph/PE, 0.73 mΩ/m X0 20 °C symmetrical components method Ph/PE, 13.83 mΩ/m R0 20 °C symmetrical components method Ph/PE, 3.46 mΩ/m Z1 35 °C at Inc and 50 Hz phase conductor, 3.46 mΩ/m R1 35 °C at Inc and 50 Hz phase conductor, 2.83 mΩ/m R20 20 °C phase conductor, 0.02 mΩ/m X1 35 °C at Inc and 50 Hz phase conductor
THDI 33-100 % 28 A, 15-33 % 32 A, 0-15 % 40 A
[Uimp] rated impulse withstand voltage 4 kV
Standards EN/IEC 61439-1, EN/IEC 61439-6
Height 46 mm
[Icw] rated short-time withstand current 0.94 kA
Environment
IP degree of protection IP55 conforming to EN/IEC 60529
Ambient air temperature for operation 50-55 °C (85 % of In), 45-50 °C (89 % of In), 40-45 °C (93 % of In), 35-40 °C (96 % of In), 0-35 °C (100 % of In)
IK degree of protection IK06 conforming to EN/IEC 62262
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.6 cm
Package 1 Width 3.0 cm
Package 1 Length 300.0 cm
Package 1 Weight 3.4 kg
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 10.5 cm
Package 2 Width 10.5 cm
Package 2 Length 318.0 cm
Package 2 Weight 21.4 kg
