Picture of Cam switch, Harmony K, front mounting, plastic, 4 poles, 90°, 150A, 88x88mm, marked OFF/ON
SKU:

K150D004HP

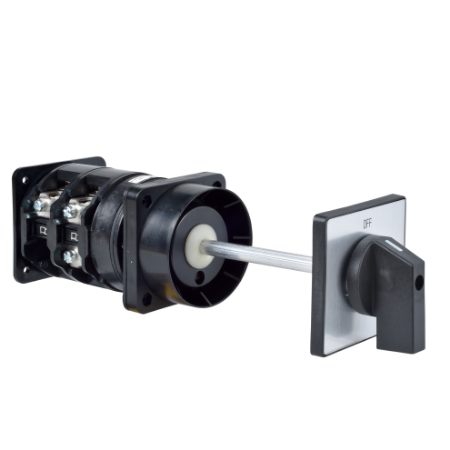

Cam switch, Harmony K, front mounting, plastic, 4 poles, 90°, 150A, 88x88mm, marked OFF/ON

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Cam switch, Harmony K, front mounting, plastic, 4 poles, 90°, 150A, 88x88mm, marked OFF/ON
Be the first to review this product
Manufacturer: Schneider Electric
Catalogue
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Off position with Off position
Return without
Rotary handle padlocking without
Poles description 4P
Product mounting front mounting
Cam switch head type with front plate 88 x 88 mm
Switching positions right: 0° - 90°
Type of operator black handle
Component name K150
Cam switch function switch
[Ith] conventional free air thermal current 150 A
Product or component type complete cam switch
IP degree of protection IP40 conforming to IEC 60529
Presentation of legend with metallic legend, OFF-ON black marking
Fixing mode 4 holes
Range of product Harmony K
Complementary
CAD overall depth 140 mm
CAD overall width 88 mm
Switching capacity in mA 50000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms), 50000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms), 50000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms), 150000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms), 150000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms), 150000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms), 150000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms), 150000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms), 150000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms), 150000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms), 150000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms), 150000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms)
Compatibility code K15
Mechanical durability 300000 cycles
Contact operation slow-break
Tightening torque 2.5 N.m
Positive opening with
[Ui] rated insulation voltage 690 V (pollution degree 3) conforming to IEC 60947-1
Short-circuit current 25000 A
Electrical connection captive screw clamp terminals solid, clamping capacity: 1 x 70 mm², captive screw clamp terminals flexible, clamping capacity: 1 x 50 mm²
Switching angle 90 °
CAD overall height 88 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 947-1, 6 kV conforming to EN 947-1
Net weight 0.88 kg
Short-circuit protection 200 A cartridge fuse, type gG
Environment
Protective treatment TC
Electrical shock protection class class II conforming to NF C 20-030, class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Standards IEC 60947-3
Product certifications cULus 120 V 7.5 hp 1 phase, cULus 480 V 40 hp 3 phases, cULus 240 V 25 hp 3 phases, cULus 240 V 15 hp 1 phase
Ambient air temperature for operation -25-55 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 23.5 cm
Package 1 Width 9.7 cm
Package 1 Length 9.8 cm
Package 1 Weight 855.0 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.828 kg
