Picture of integrated drive ILS with stepper motor - 24..36V- pulse/direction w/o RS422- 5A
SKU:

ILS1V852PB1A0

integrated drive ILS with stepper motor - 24..36V- pulse/direction w/o RS422- 5A

$2,513.28 INC GST
Available for Shipping : 28-Jan-2026
Product Selector
integrated drive ILS with stepper motor - 24..36V- pulse/direction w/o RS422- 5A
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 28-Jan-2026
User guide
Environmental Disclosure
Declaration of conformity
Catalog
Circularity Profile
Product Page Link
Product Data Sheet

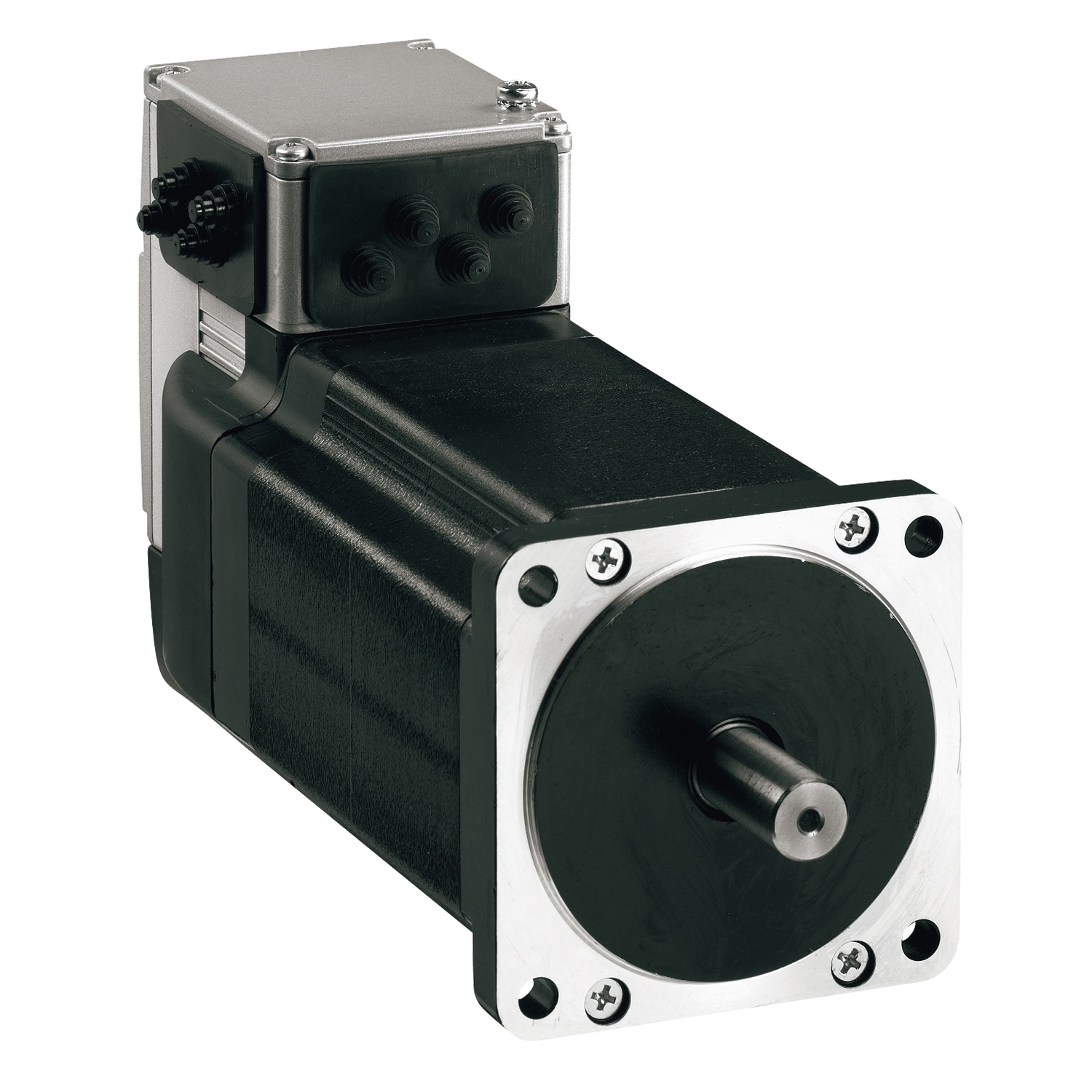

This product is part of the Lexium ILA, ILE, ILS range, an offer of integrated drives for motion control. This is an integrated drive with a stepper motor, without gearbox, without holding brake. The feedback is given by an index pulse. Its nominal speed is 100rpm at 24VDC, 200rpm at 36VDC. Its nominal torque is 4.0Nm. It embeds 4 signals which can be used as input or output. This integrated drive consists of control electronics with a 5V pulse/direction, and a 3-phase stepper motor. Its stepper capacity is 200steps per 1.8degrees, 400 per 0.9, 500 per 0.72, 1000 per 0.36, 2000 per 0.18, 4000 per 0.09, 5000 per 0.072, and 10000 per 0.036. The electrical connection is made on a printed circuit board connector. Its motor flange size is 85mm. It installs with 4x 6.5mm mounting holes. The circle diameter of the mounting holes is 99mm. It weighs 3.6kg. It integrates a 5V pulse/direction interface. This product is certified by cUL, TÜV and UL. It is compatible with pre-assembled cables for 24V pulse/direction interface. Those mounting positions are allowed per IEC 60034-7 as IM B5 shaft horizontal, IM V1 shaft vertical, shaft end down, IM V3 shaft vertical, shaft end up. Lexium-integrated drives are used to create decentralized motion control solutions in very compact units. integrated Drives for motion control with stepper, servo or brushless DC motor.

Products specifications

Attribute name Attribute value
Main
Device short name ILS
Nominal speed 200 rpm at 36 V, 100 rpm at 24 V
Gear box type without
Communication interface pulse/direction 5 V without RS422, integrated
[Us] rated supply voltage 24 V, 36 V
Winding type medium speed of rotation and medium torque
Range of product Lexium integrated drive
Nominal torque 4 N.m
Electrical connection printed circuit board connector
Motor type 3-phase stepper motor
Length 170.6 mm
Network number of phases single phase
Product or component type motion integrated drive
Holding brake without
Number of motor poles 6
Network type DC
Holding torque 4 N.m
Complementary
Voltage state 1 guaranteed 15...30 V
Maximum axial force Fa 30 N (force pressure), 170 N (tensile force)
Input/output type 4 signals (each be used as input or output)
Coefficient 1_0 50.236 N.m
Coefficient 1_2 12.355 N.m/rpm²
Coefficient 1_1 -42.97 N.m/rpm
Coefficient 1_3 -1.19 N.m/rpm3
Coefficient 2_1 1.322 N.m/rpm
Protection type safe torque off, short circuit of the output voltage, overload of output voltage
Coefficient 2_0 14.141 N.m
Coefficient 2_3 0.719 N.m/rpm3
Coefficient 2_2 -4.065 N.m/rpm²
Compatibility code ILS
Service life in hours 20000 h bearing
Accuracy error [angular] 0.1 °
Type of cooling natural convection
Speed feedback resolution 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps, 1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036°
Supply voltage description single phase 36 V DC, single phase 24 V DC
Supply voltage limits 18-40 V
Number of mounting holes 4
Peak stall torque 4 N.m
Motor flange size 85 mm
Marking CE
Centring collar depth 2 mm
Continuous stall torque 4 N.m
Maximum radial force Fr 100 N
Maximum switching current 200 mA total, 100 mA per output
Maximum mechanical speed 1500 rpm
Circle diameter of the mounting holes 99 mm
Associated fuse rating 10 A
Network number of phases 1
Accuracy error +/- 6 arc min
Voltage 2 speed 2 235.918 rpm
Voltage 1 speed 1 105.87 rpm
Feedback type index pulse
Shaft end untapped
Voltage 1 24 V
Voltage 2 36 V
Mounting holes diameter 6.5 mm
Discrete output voltage 23...25 V
Shaft diameter 12 mm
Curve type semilog
Centring collar diameter 60 mm
Sizing reference ILS1_852P
Voltage state 0 guaranteed -3...4.5 V
Net weight 3.6 kg
Shaft length 30 mm
Voltage 2 speed 2 max 235.918 rpm
Second shaft without second shaft end
Discrete input current 10-10 mA at 24 V for safety input
Rotor inertia 2.2 kg.cm²
Number of motor stacks 2
Mounting support flange
Voltage 1 speed 1 max 105.87 rpm
Current consumption 5000 mA maximum continuous
Environment
IP degree of protection IP54 total except shaft bushing: conforming to IEC 60034-5, IP41 shaft bushing: conforming to IEC 60034-5
Relative humidity 15-85 % without condensation
Ambient air temperature for storage -25-70 °C
Shock resistance 150 m/s² 1000 shocks conforming to IEC 60068-2-29
Ambient air temperature for operation 0-50 °C (without derating), 50-65 °C (with power derating of 2 % per °C)
Operating altitude <= 1000 m without derating
Permissible ambient air temperature around the device 110 °C motor, 105 °C power amplifier
Vibration resistance 20 m/s² (f= 10-500 Hz) 10 cycles conforming to IEC 60068-2-6
Standards IEC 61800-3, Ed 2, IEC 60072-1, EN 61800-3:2001, second environment, EN 61800-3 : 2001-02, IEC 50178, IEC 61800-3, IEC 50347
Product certifications TÜV, cUL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.5 cm
Package 1 Width 19.0 cm
Package 1 Length 39.0 cm
Package 1 Weight 4.0 kg
