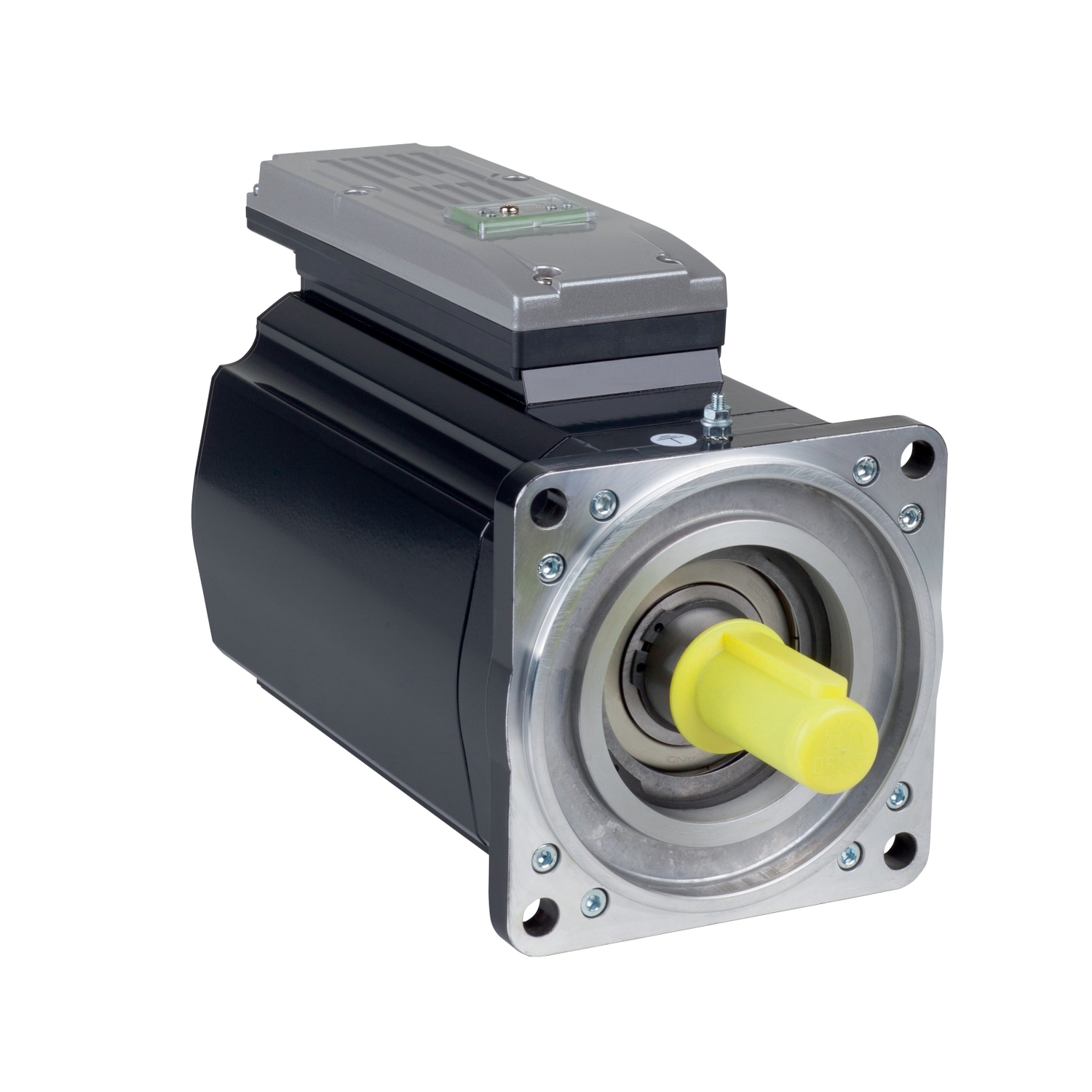

Picture of integrated servo motor - 7.5 Nm - 3000 rpm - multiturn - without brake
SKU:

ILM1401P02A0000

integrated servo motor - 7.5 Nm - 3000 rpm - multiturn - without brake

$5,604.72 INC GST
Available for Shipping : 03-Feb-2026
integrated servo motor - 7.5 Nm - 3000 rpm - multiturn - without brake
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 03-Feb-2026
Declaration of conformity
Instruction sheet
User guide
End of life manual
Product environmental
Catalogue
Product Page Link
Product Data Sheet
This product is part of the PacDrive 3 range, an offer of integrated servo motors for machines from 0.31kW to 1.91kW. The 10-pole integrated servo motor features 1 stack with a maximum mechanical speed of 3000RPM, a continuous rated stall torque 7.5Nm and smooth shaft. It is an equipped with a multi-turn SinCos Hiperface® absolute encoder (128 periods per revolution) without holding brake. It is an integrated servo motor with a supply voltage of 250V to 700V, a continuous stall current of 4.7A and a maximum continuous power of 1.45kW. The shaft dimensions are 24mm (diameter) x 50mm (length). It is an IP54 rated product. The length of this product is 254mm and the centering collar dimensions are 3.5mm (depth) x 130mm (diameter) with 165mm mounting hole. It weighs 12.5kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. It supports international standard 140mm flange mount with a natural convection cooling system. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.

Products specifications

Attribute name Attribute value
Main
Device short name ILM
Range of product PacDrive 3
Product or component type servo motor integrated drive
Complementary
Peak stall torque 27 N.m
Nominal speed 3000 rpm
Type of cooling natural convection
Number of mounting holes 4
[Us] rated supply voltage 250...700 V
Motor flange size 140 mm
Maximum current Irms 18.8 A
Stator inductance 9.55 mH at 120 °C for Ph/N, 19.1 mH at 20 °C for Ph/Ph
Speed feedback resolution 128 periods
Centring collar depth 3.5 mm
Back emf constant 108 V/krpm at 20 °C
Continuous stall torque 7.5 N.m
Maximum radial force Fr 1530 N at 3000 rpm, 1760 N at 2000 rpm, 2210 N at 1000 rpm
Circle diameter of the mounting holes 165 mm
Torque constant 1.6 N.m/A at 120 °C
Continuous stall current 4.7 A
[In] rated current 2.9 A
Stator resistance 1.26 Ohm at 120 °C for Ph/N, 1.81 Ohm at 20 °C for Ph/Ph
Feedback type absolute multiturn SinCos Hiperface
Shaft end untapped
Mounting holes diameter 11 mm
Shaft diameter 24 mm
Key width 40 mm
Centring collar diameter 130 mm
Net weight 12.5 kg
Length 254 mm
Nominal output power 1450 W
Shaft length 50 mm
Second shaft without second shaft end
Holding brake without
Maximum axial force Fa 0.2 x Fr
Number of motor poles 10
Rotor inertia 7.41 kg.cm²
Number of motor stacks 1
Nominal torque 4.6 N.m
Mounting support international standard flange
Environment
IP degree of protection IP54
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 26.0 cm
Package 1 Width 20.0 cm
Package 1 Length 59.0 cm
Package 1 Weight 13.13 kg
