SKU:

I2810

Andover Continuum i2810 Local Controller, Infinet II, 8 Universal Inputs, 8 Digital Outputs With Overrides, 1 Smart Sensor Input, Expansion Port

Call for pricing

Availability: Please contact our sales team on 1300 724 622.

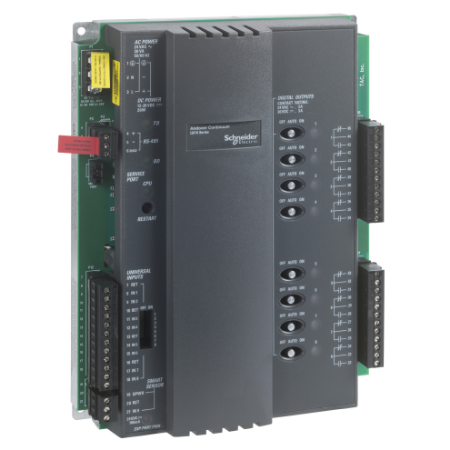

Andover Continuum i2810 Local Controller, Infinet II, 8 Universal Inputs, 8 Digital Outputs With Overrides, 1 Smart Sensor Input, Expansion Port

Manufacturer: Schneider Electric

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Maximum number of I/O expansion module	1
IP degree of protection	IP10
Device short name	i2810
Display type	LED
Width	184 mm
Product specific application	for mechanical plant equipment, control of air handling unit, control of roof top unit
Memory type	256 kB SRAM, 1 MB flash
Function available	stand alone equipment control
Product or component type	local controller
Range of product	Infinet II
Product certifications	FCC, CE, UL/cUL 916
Complementary
Measurement resolution	5 mV input resolution
Battery type	lithium 5 years power failure backup of RAM memory
Realtime clock	with battery-backed real time clock
Bus length	1220 m Infinet i2 Infilink module for extra distance
Input impedance	30.1 kOhm 10 V, 5 MOhm with pull up resistor disabled
Accuracy	+/- 7.5 mV DC +/- 0.25 °C from - 23...54 °C
Resolution	0.1 V for 0...10 V
Programming language	English
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	27.9 cm
Package 1 Width	27.7 cm
Package 1 Length	13.5 cm
Package 1 Weight	980.0 g
Unit Type of Package 2	2
Number of Units in Package 2	2
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	2.205 kg
