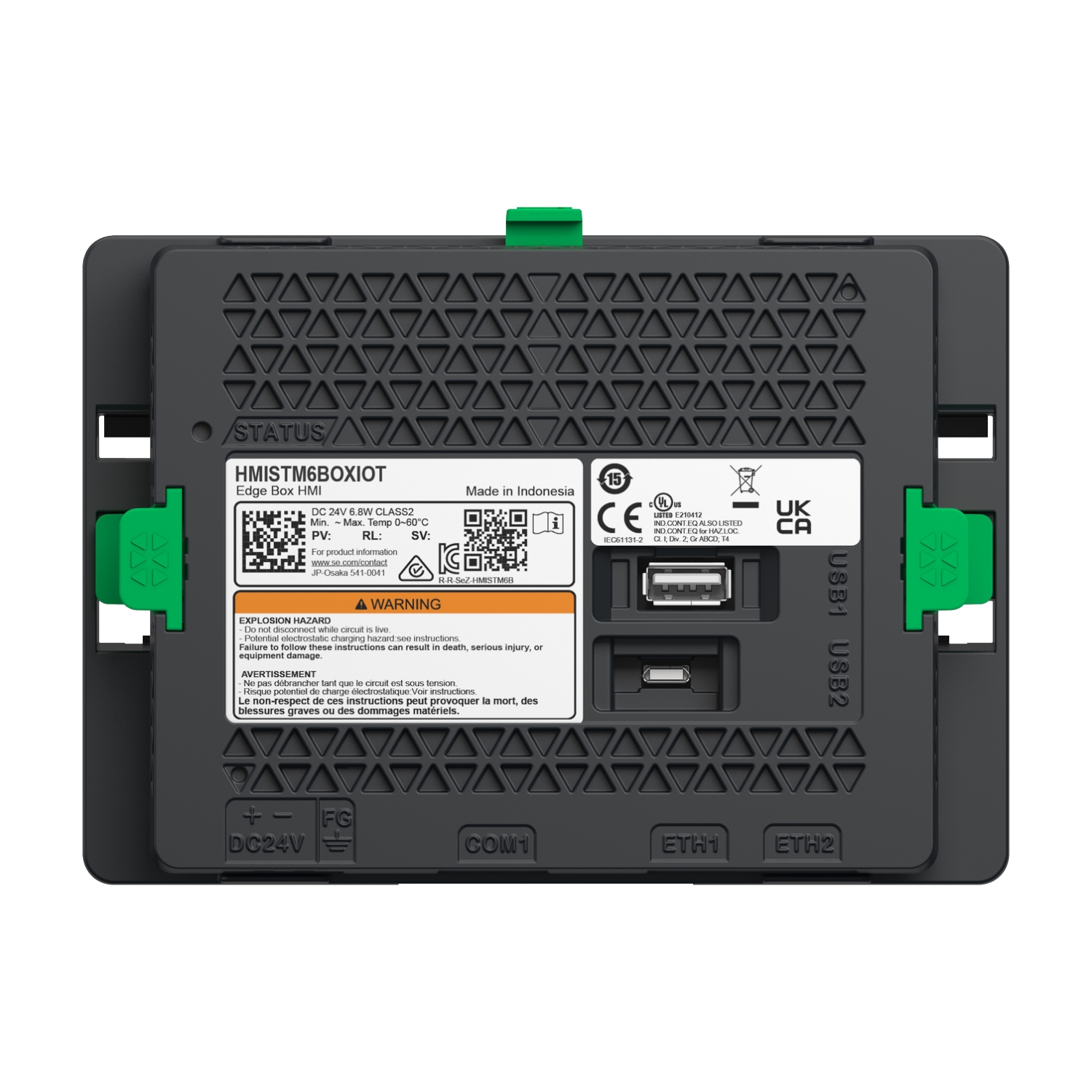

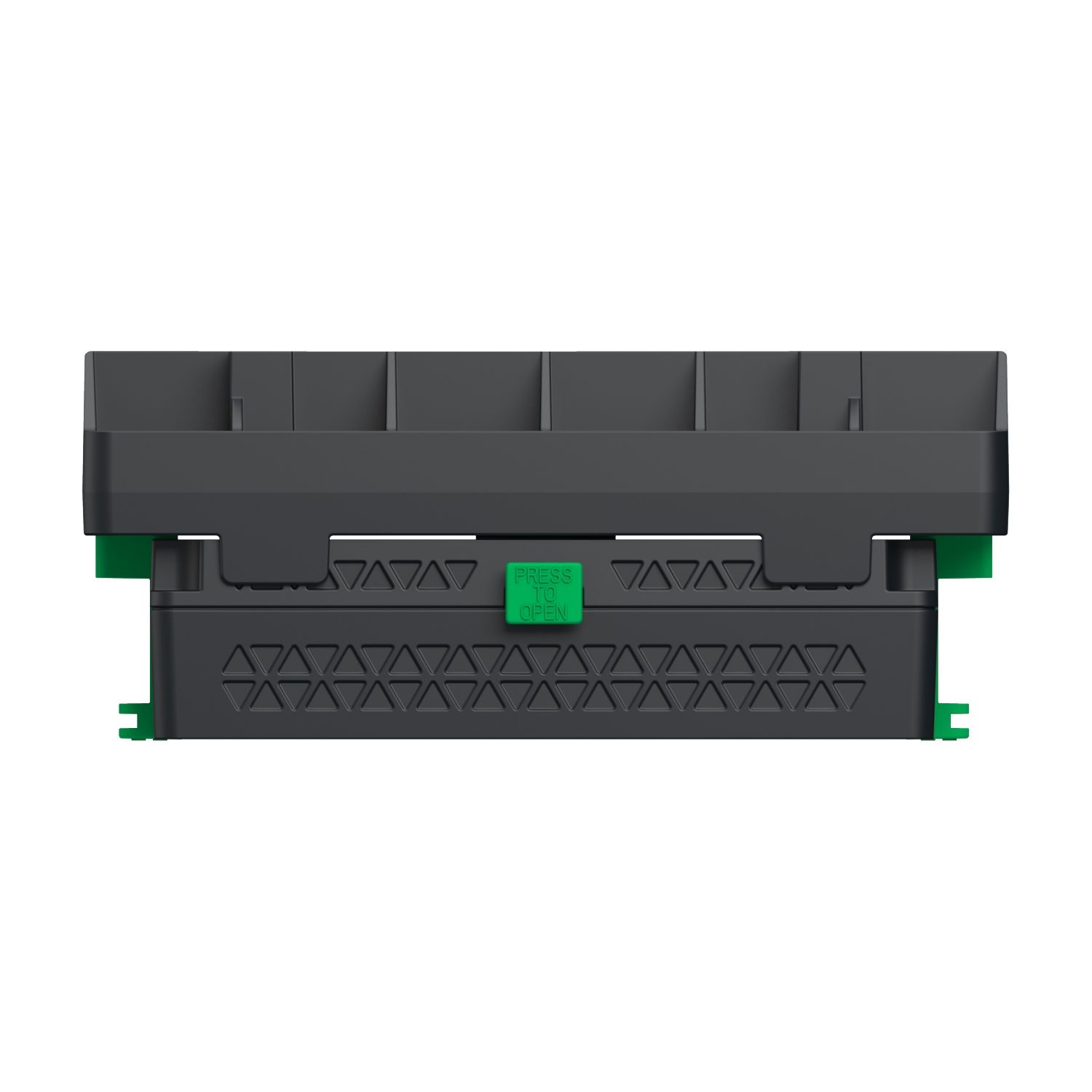

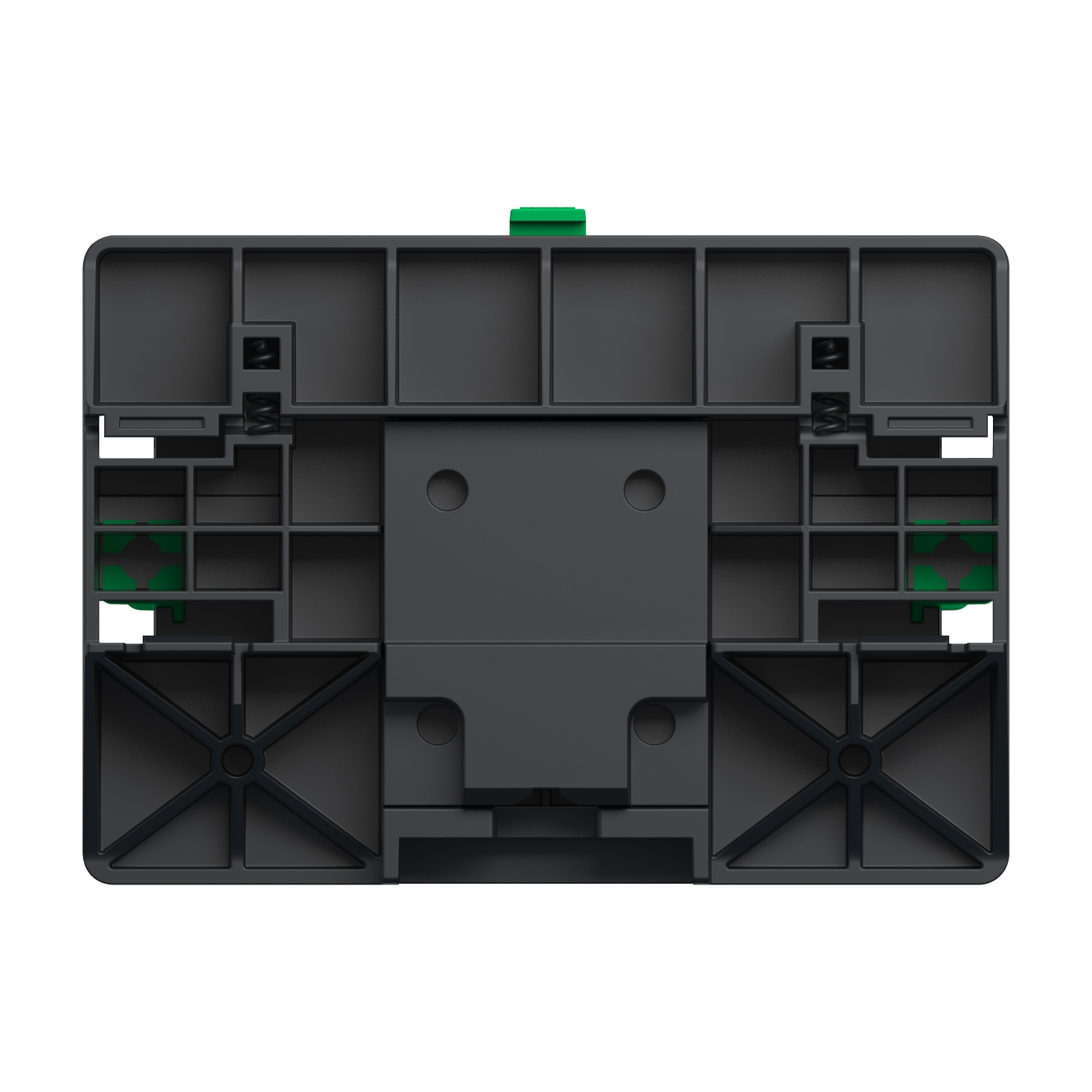

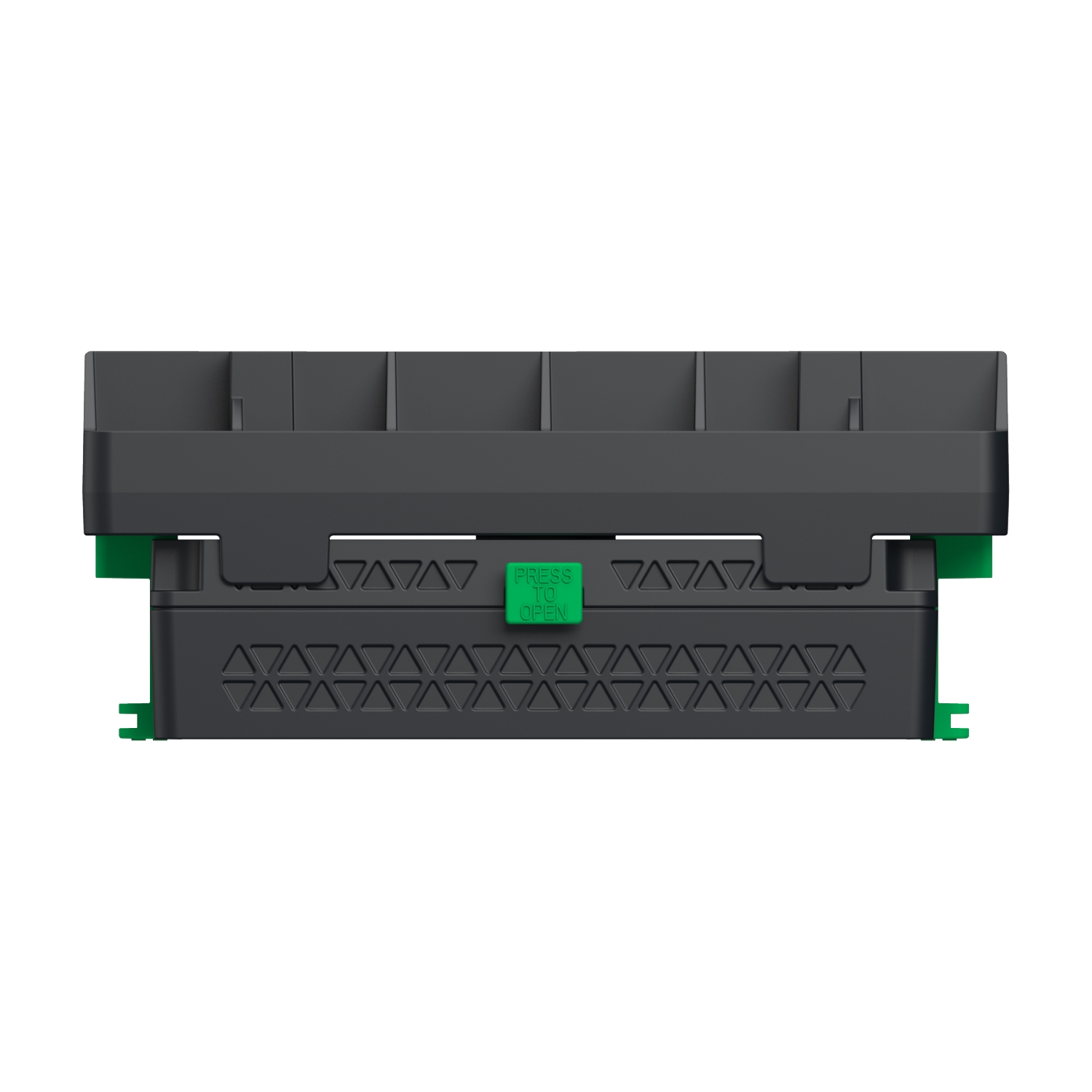

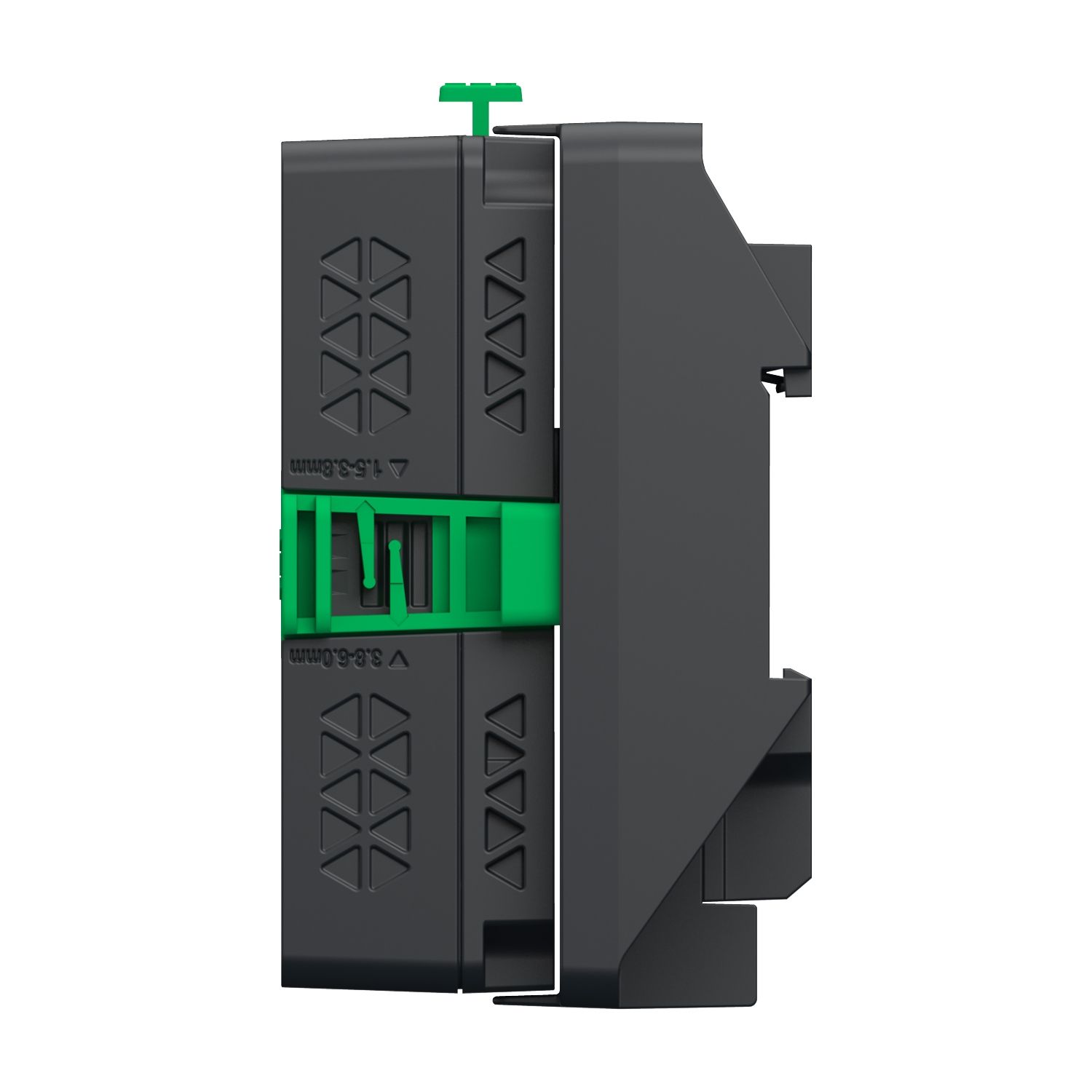

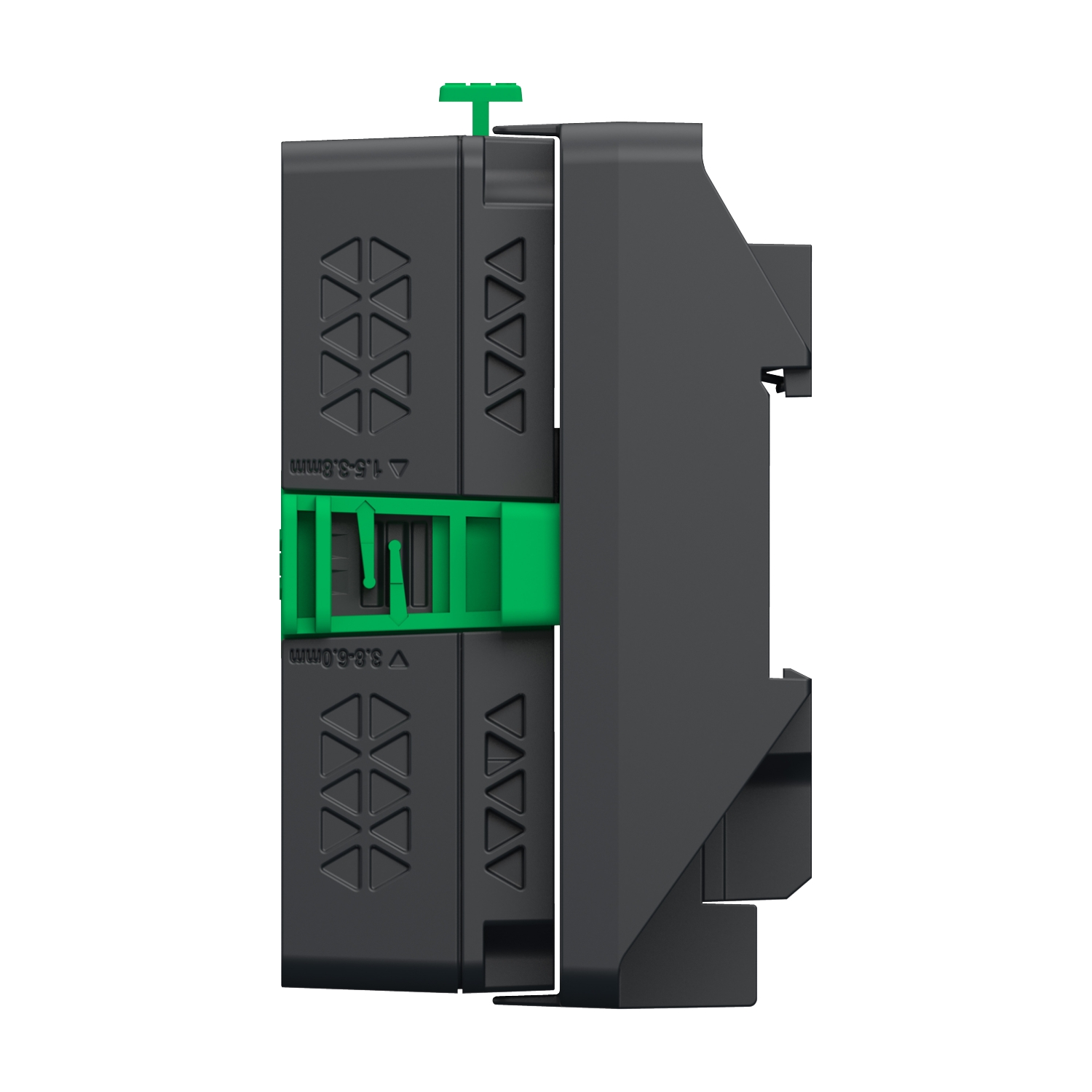

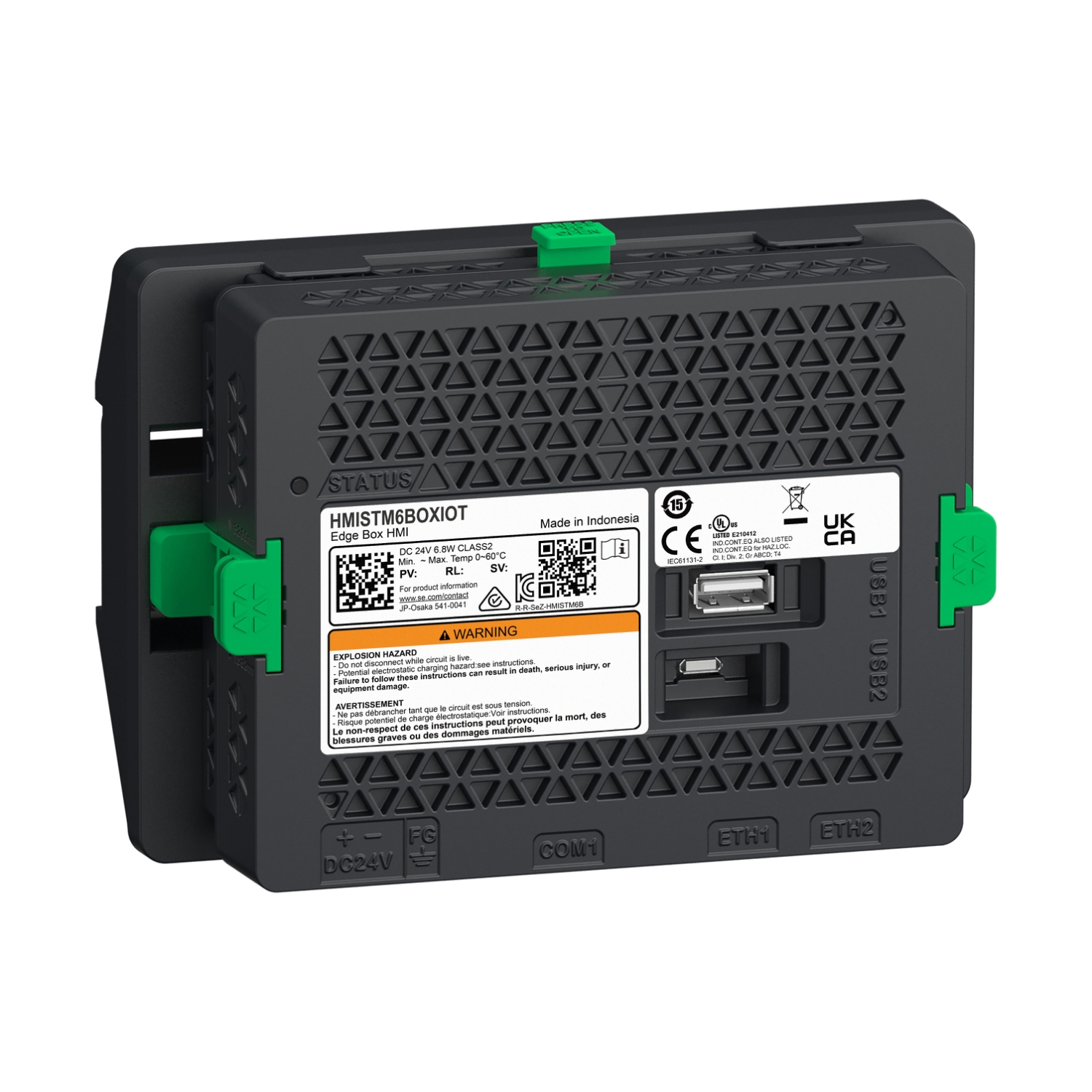

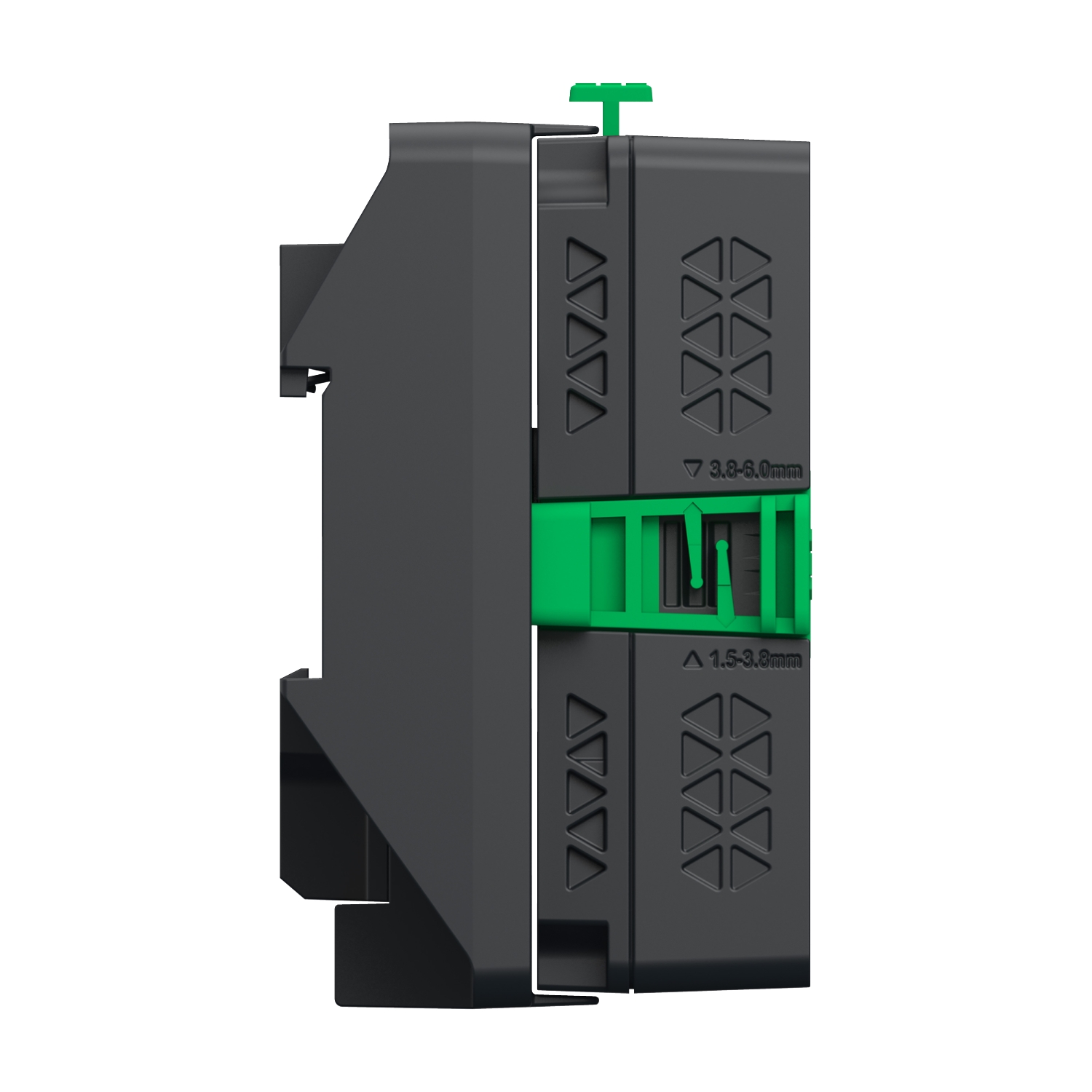

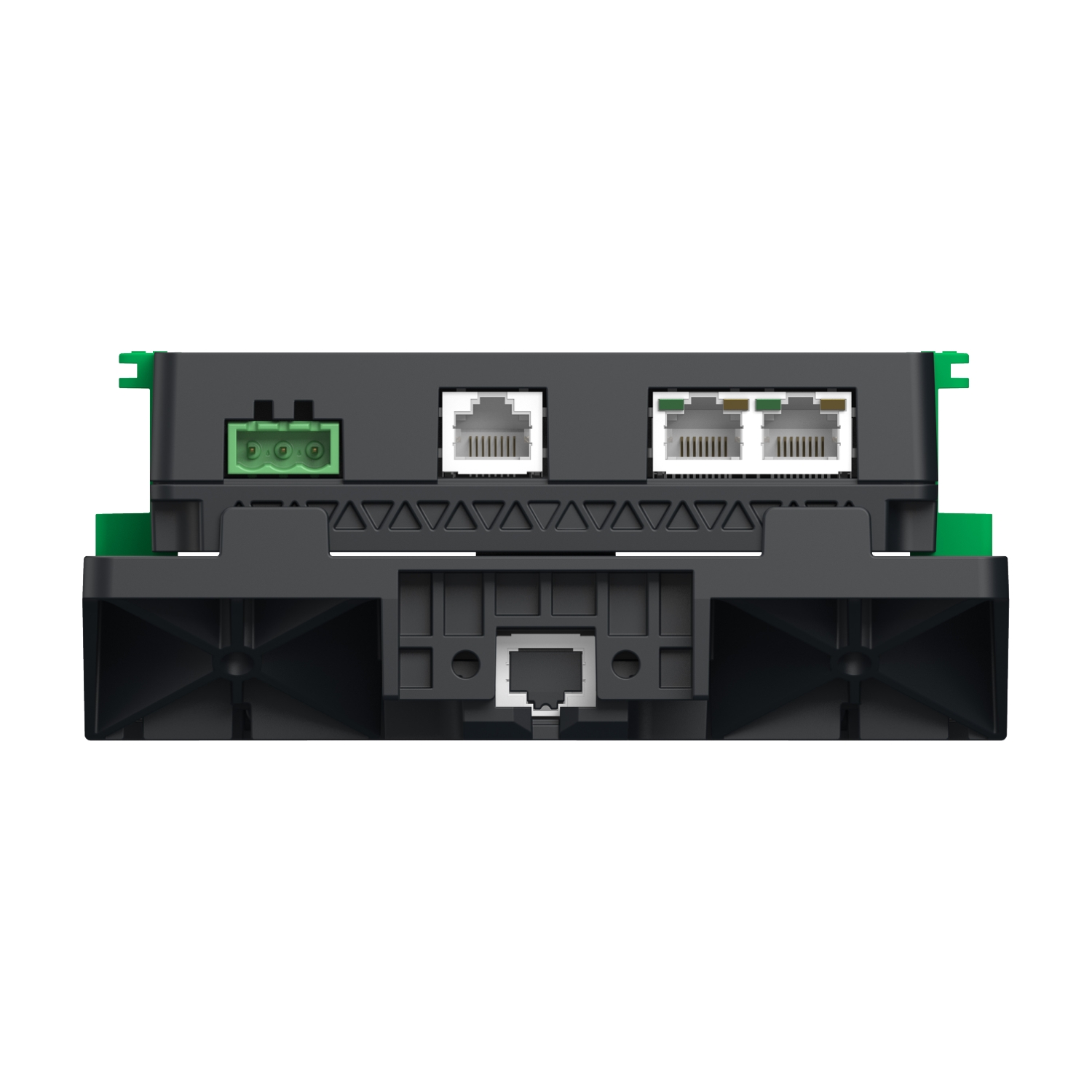

Picture of Edge Box HMI, Harmony ST6, 1COM, 2Ethernet, 2 USB, 24 VDC
Picture of Edge Box HMI, Harmony ST6, 1COM, 2Ethernet, 2 USB, 24 VDC
Picture of Edge Box HMI, Harmony ST6, 1COM, 2Ethernet, 2 USB, 24 VDC
Picture of Edge Box HMI, Harmony ST6, 1COM, 2Ethernet, 2 USB, 24 VDC
Picture of Edge Box HMI, Harmony ST6, 1COM, 2Ethernet, 2 USB, 24 VDC
Picture of Edge Box HMI, Harmony ST6, 1COM, 2Ethernet, 2 USB, 24 VDC
Picture of Edge Box HMI, Harmony ST6, 1COM, 2Ethernet, 2 USB, 24 VDC
Picture of Edge Box HMI, Harmony ST6, 1COM, 2Ethernet, 2 USB, 24 VDC
SKU:

HMISTM6BOXIOT

Edge Box HMI, Harmony ST6, 1COM, 2Ethernet, 2 USB, 24 VDC

$713.90 INC GST
Available for Shipping : 05-Jan-2026
Product Selector
Edge Box HMI, Harmony ST6, 1COM, 2Ethernet, 2 USB, 24 VDC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 05-Jan-2026
Catalog
User guide
Declaration of conformity
Environmental Disclosure
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
This Edge Box HMI belongs to the Schneider Electric Harmony ST6 range. This HMISTM6 Edge Box runs on 800MHz ARM Cortex-A8 CPU Harmony operating system with an input supply voltage of 24Vdc. It has a 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. Edge Box HMI is configured using EcoStruxure Machine SCADA Expert that collects data with different drivers on OT devices and pushes data on IT side. This HMISTM6BOXIOT supports 2x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 150.49mm (width) x 109.97mm (height) x 63.3mm (depth) and weighs 0.456Kg. This is intended for industries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH, ATEX Zone2/22, Marine. The Edge Box HMI is a Box without screen and mounted on a DIN Rail adapter provides IP20 protection. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment.

Products specifications

Attribute name Attribute value
Main
Processor name ARM Cortex-A8
Range of product Harmony ST6
Operating system linux
Product or component type modular HMI box
Complementary
Memory description 1 GB NAND flash, 512 MB internal RAM, 512 KB NVRAM backup memory
Type of cooling natural convection
Processor frequency 800 MHz
Software package EcoStruxure secure connect advisor pre-installed, EcoStruxure machine SCADA expert runtime (mobile) 1 client activated, EcoStruxure machine SCADA expert runtime 500 tags pre-activated
Height 101 mm
Depth 63.3 mm
Realtime clock built-in
Width 150.5 mm
Integrated connection type 1 USB 2.0 port - USB type A, 1 USB 2.0 port - USB micro-B, 1 COM1 serial link - RJ45 - RS232C/RS485 (rate: 2400...115200 bps), 2 Ethernet TCP/IP - RJ45 - 10/100BASE-T
Local signalling LED multi-colour
Net weight 0.456 kg
[Us] rated supply voltage 24 V DC
Environment
Relative humidity 10-90 % non-condensing
Ambient air temperature for storage -20-60 °C
Pollution degree 2 conforming to IEC 61131-2 ed.3
Electromagnetic compatibility electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3
Ambient air temperature for operation 0-60 °C
Operating altitude 2000 m
Vibration resistance 9.8 m/s² (f = 9-150 Hz) conforming to IEC 61131-2, 3.5 mm constant amplitude (f = 5-9 Hz) conforming to IEC 61131-2
Shock resistance 147 m/s² conforming to IEC 61131-2
Standards IEC 61132-2, CSA C22.2 No 213, UL 121201, CSA C22.2 No 61010-2-201,  UL 61010
Product certifications DNV, RINA, ABS, cULus Class 1 Division 2, KC, RCM, cULus, UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9 cm
Package 1 Width 18 cm
Package 1 Length 27 cm
Package 1 Weight 678 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.793 kg

Related products

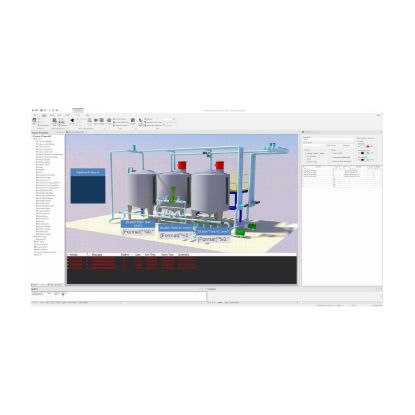

Picture of License upgrade for buildtime license, EcoStruxure Machine SCADA Expert, line management, 4000 tags, digital
