Picture of TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 2A, Icu 100kA, thermal magnetic multifunction, lugs terminals
SKU:

GV4PEM02S6

TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 2A, Icu 100kA, thermal magnetic multifunction, lugs terminals

Call for pricing
Availability: Please contact our sales team on 1300 724 622.
Product Selector
TeSys Deca, Motor circuit breaker, TeSys GV4, 3P, 2A, Icu 100kA, thermal magnetic multifunction, lugs terminals
  • New modern look & feel of all machines
  • Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
  • Easier to install and operate with multi-standard screws
  • Safe and long-lasting power connection with EverLink terminals
  • Digital customer experience for technical documents
  • Maintenance guide via EcoStruxureTM Facility Expect
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
User guide
End of life manual
Product Page Link
Product Data Sheet
TeSys GV motor circuit breaker, 3 poles (3P), 2A/690V, for protection of 3-phase motors 0.25-0.75kW@400V. Multifunction circuit breaker, it provides thermal magnetic protection and advanced motor protection, breaking capacity Icu 100kA@400V, start-stop control by toggle, connection for bars or cables with lugs. Thermal protection adjustable by dials with a setting current Ir in range 0.8-2A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Advanced protections are adjustable with a smartphone using wireless NFC and include short time delay protection Isd with a setting range 5-13 Ir, phase unbalance and loss protection, ground fault protection, locked rotor (jam), long start. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). It can be equiped externally with 1 or 2 auxiliary SDx modules in order to have alarming and fault differentiation. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Related products

Picture of Auxiliary contact, TeSys GV4, 690VAC, 1 NO/NC

Auxiliary contact, TeSys GV4, 690VAC, 1 NO/NC

GV4AE11
$19.82 INC GST $31.46 INC GST
View Detail
Picture of Auxiliary contact block, TeSys GV4, 2NO+2NC, SDx contact module for GV4PEM

Auxiliary contact block, TeSys GV4, 2NO+2NC, SDx contact module for GV4PEM

GV4ADM1111
$452.53 INC GST $718.30 INC GST
View Detail
Picture of Lug connector, TeSys GV4, 3P, 2 to 115A, screw terminal

Lug connector, TeSys GV4, 3P, 2 to 115A, screw terminal

GV4LUG
$8.45 INC GST $13.42 INC GST
View Detail
Picture of energy sensor, PowerTag Flex 160A 3P/3P+N top and bottom position

energy sensor, PowerTag Flex 160A 3P/3P+N top and bottom position

A9MEM1580
$293.59 INC GST $345.40 INC GST
View Detail
Picture of TeSys, Rotary handle, TeSys GV4, direct, fixed, black, IP54

TeSys, Rotary handle, TeSys GV4, direct, fixed, black, IP54

GV4ADN01
$84.96 INC GST $134.86 INC GST
View Detail

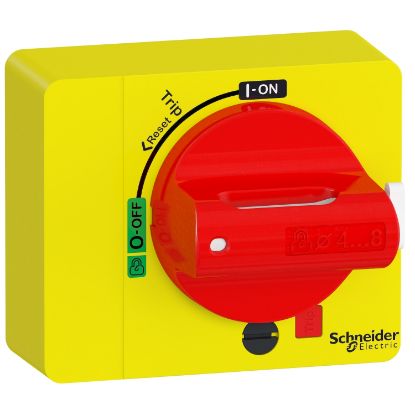

Picture of TeSys, Rotary handle, TeSys GV4, direct, fixed, red, IP54
