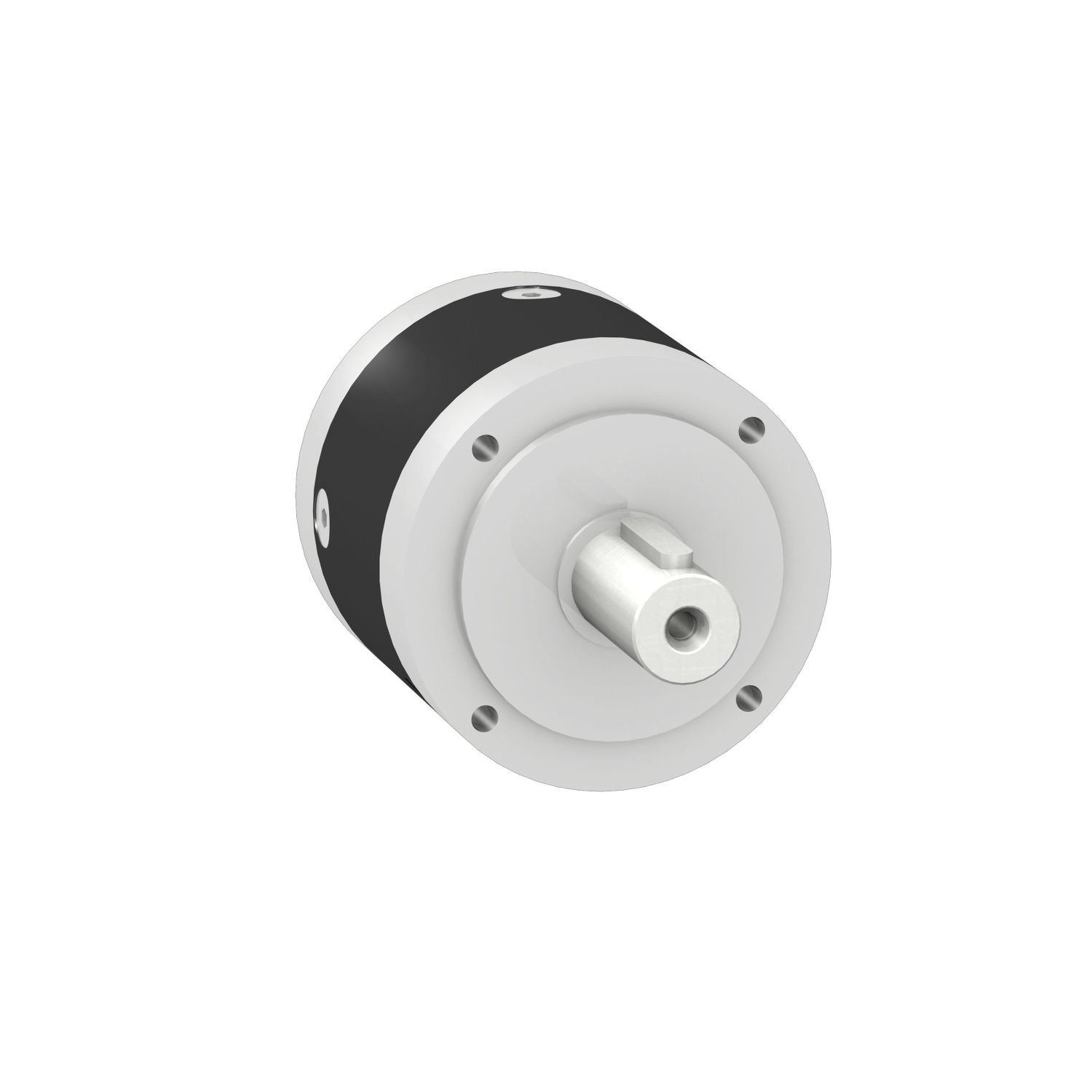

Picture of gearbox straight teeth GBX, Lexium, 80mm, reduction 40:1 , 9arc.min, 110N.m
SKU:

GBX080040K

gearbox straight teeth GBX, Lexium, 80mm, reduction 40:1 , 9arc.min, 110N.m

$1,322.64 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
gearbox straight teeth GBX, Lexium, 80mm, reduction 40:1 , 9arc.min, 110N.m
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This product is part of the Lexium ILA, ILE, ILS range, an offer of Integrated drives for motion control. This planetary gearbox has straight teeth, lubricated for life. The gearbox external diameter is 80mm. This gearbox is to adapt speeds and torques of motors. This gearbox has a reduction ratio of 40/1, maximum axial force (Fa) of 1200N at 100RPM and continuous output torque of 110N.m at 100RPM at 30°C. It offers service life of about 30000h at 100RPM at 30°C. It is an IP54 rated product. The enclosure is made of black anodized aluminium. It weighs 2.6kg. It can be mounted in any position. Lexium-integrated drives are used to create decentralized motion control solutions in very compact units. Integrated Drives for motion control with stepper, servo or brushless DC motor.

Products specifications

Attribute name Attribute value
Main
Device short name GBX
Range compatibility Lexium 52, Lexium 62, Lexium 62 ILM, Lexium 32, Lexium 28
Gearbox external diameter 80 mm
Gear box type straight teeth
Product compatibility ILM, MH3, SH3, BCH2 (80 mm, 1 motor stacks), BSH (70 mm, 1 motor stacks), BMH (70 mm, 1 motor stacks)
Product or component type planetary gearbox
Reduction ratio 40:1
Complementary
Maximum axial force Fa 1200 N at 100 rpm, during 30000 hour at 30°C
Reduction ratio 40
Continuous output torque 110 N.m at 100 rpm at 30 °C
Mounting position any position
Housing material black anodized aluminium
Additional information lubricated for life
Compatibility code GBX
Service life in hours 30000 h at 100 rpm at 30 °C
Internal diameter 19.0 mm
Maximum torsional backlash 9 arc.min
Maximum output torque 176 N.m at 100 rpm at 30 °C
Shaft material C 45
Net weight 2.6 kg
Length 89.5 mm
Shaft moment of inertia 0.39 kg.cm²
Efficiency 94 %
No load running torque 0.1 N.m
Maximum radial force Fr 650 N at 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C
Torsional rigidity 6.5 N.m/arcmin
Housing colour black
Environment
IP degree of protection shaft output: IP54
Noise level 60 dB at 1 m, no-load
Ambient air temperature for operation -25-90 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 10.500 cm
Package 1 Width 11.000 cm
Package 1 Length 18.500 cm
Package 1 Weight 2.452 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 10.225 kg
