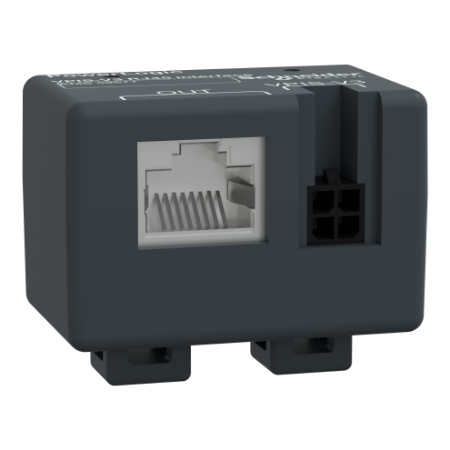

Picture of PowerLogic VPIS V3 voltage adapter, RJ45 output for SC150
SKU:

EMS59577

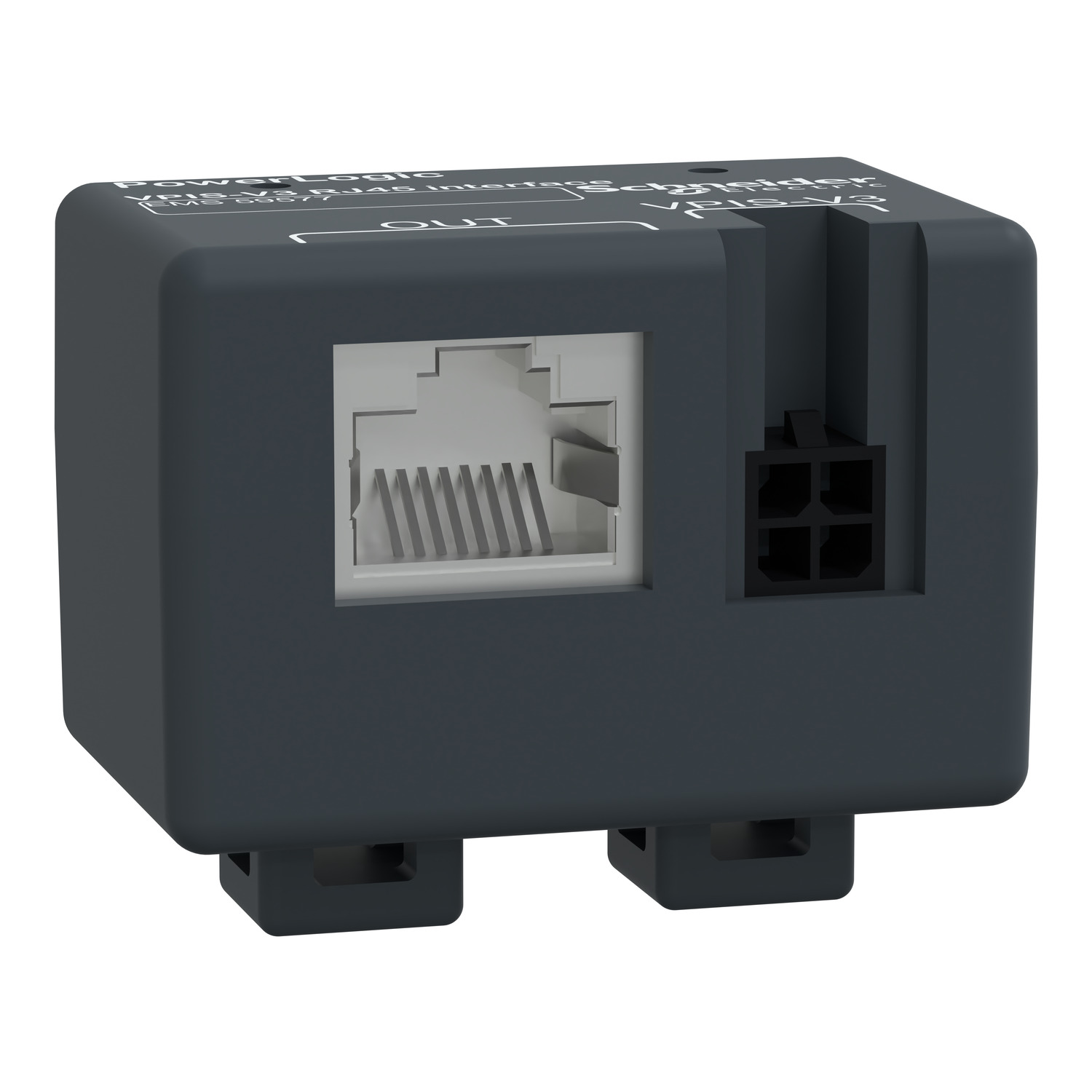

PowerLogic VPIS V3 voltage adapter, RJ45 output for SC150

Old price: $293.34 INC GST
$264.01 INC GST
Available for Shipping : 01-Mar-2026
PowerLogic VPIS V3 voltage adapter, RJ45 output for SC150
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 01-Mar-2026
User guide
Catalog
Product Page Link
Product Data Sheet
This adaptor Easergy T300 is required for voltage sensor used with SC150 module. The Un rated voltage is 11 to 36 Kv. The input voltage Phase-to-phase 1VAC to 30VAC. It include micro-fit inputs, and RJ45 communication port for output. Complient to standards IEC 62271-206, CE certification. The operating and storage temperature is -40°C to + 85°C. Mechanical dimensions are 50 mm in height, 50 mm in width and 100 mm in length.

Products specifications

Attribute name Attribute value
Main
Product or component type voltage adaptor
Range of product PowerLogic T300
Complementary
Rated voltage 11-36 kV
Input voltage 1...30 V AC (L-L)
Input voltage limits < 30 V
Electrical connection input: connector micro-fit, output: connector RJ45
Network frequency 50/60 Hz
Environment
Operating altitude <= 2000 m
Width 50 mm
Fire resistance 850 °C conforming to IEC 60695-2-11
Operating position horizontal, vertical
Relative humidity 95-95 % conforming to IEC 60068-2-30
Ambient air temperature for storage -40-85 °C
IP degree of protection IP30 conforming to IEC 60529
Net weight 0.038 kg
Length 100 mm
Environmental characteristic salt mist: 200 h conforming to IEC 60068-2-11
Standards IEC 62271-206
Height 50 mm
Ambient air temperature for operation -40-85 °C
Fixing mode by clamp (plastic)
IK degree of protection IK07 conforming to IEC 62262
Product certifications CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 4.500 cm
Package 1 Length 9.000 cm
Package 1 Weight 54.000 g
Unit Type of Package 2 2
Number of Units in Package 2 72
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.188 kg
